ST CUE 1 TO G COMP & SUM TO MAIN BUS
This somewhat strangely named switch/feature allows the use of Stereo Cue 1 to create parallel mixes. A typical example is where
you want to use the bus compressor to act on a drum mix and this to then be summed in parallel to the main mix i.e. creating a
compressed drum mix, but with other elements left uncompressed. By creating the parallel drum mix on Stereo Cue 1 from the
console's channels, if you then press ST CUE 1 TO G COMP & SUM TO MAIN BUS the Stereo Cue 1 mix passes through the G
Series Bus Compressor and it is summed with the Main mix, while the Main mix bypasses the G-Series Bus Compressor. e.g.
Normal signal ow:
With ST CUE 1 TO G COMP & SUM TO MAIN BUS selected:

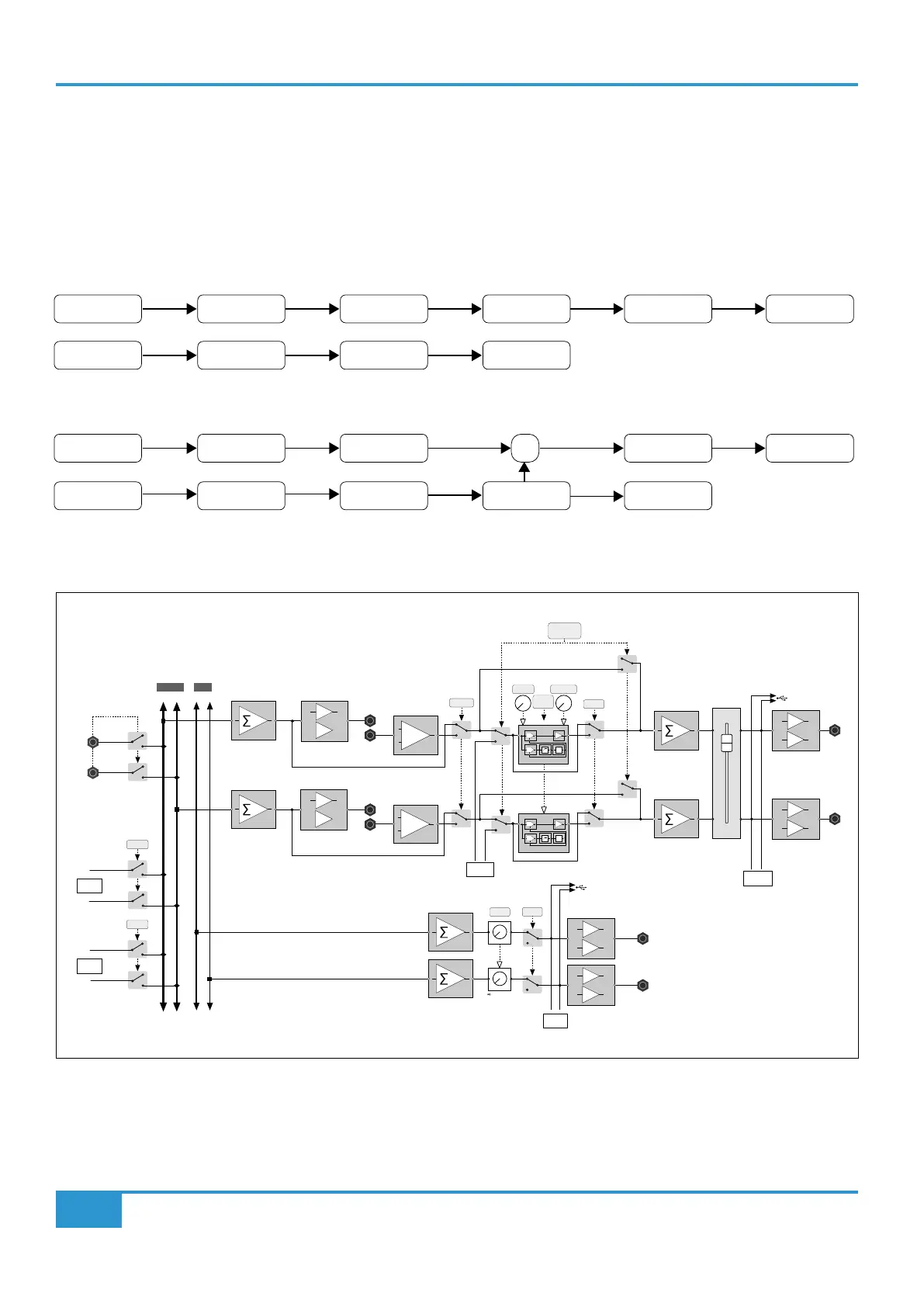

Main Mix Bus Block Diagram
Main Bus Main InsertChannel OP G Bus Comp Main Fader Main Output
St Cue 1 Bus
St Cue 1 Master
(+Ext/Talk Sum)
St Cue 1 OP St Cue 1 Output
Main Bus Main InsertChannel OP
G Bus Comp
Main Fader Main Output
St Cue 1 Bus
St Cue 1 Master
(+Ext/Talk Sum)
St Cue 1 OP
SUM
St Cue 1 Output
EXT 1
EXT 2
BUS B
OUT
+
-
S/C
VCA
VCA
S/C
VCA
VCA
L R
L R
L R
MIX AFL
L R
MAIN
BUS B
+
-
+
-
SEND
RETURN
+
-
+
-
SEND
RETURN
IN
+
-
MUTE
LEVEL
+
-
L
to +10dB
+
-
R
BUS COMP to
∑ ST CUE 1
T/HOLD
INSERT
MAIN
OUT
MAKE UP
USB
SEND
15/16
USB
SEND
13/14
AUTO
RLS
L
R
SUM IP
TO MAIN
G SERIES BUS COMP
L
R
FROM
EXT 1
FROM
EXT 2
BUS B
TO MON
FROM
ST CUE 1
MAIN BUS
TO MON
