Stereo Cue Sends

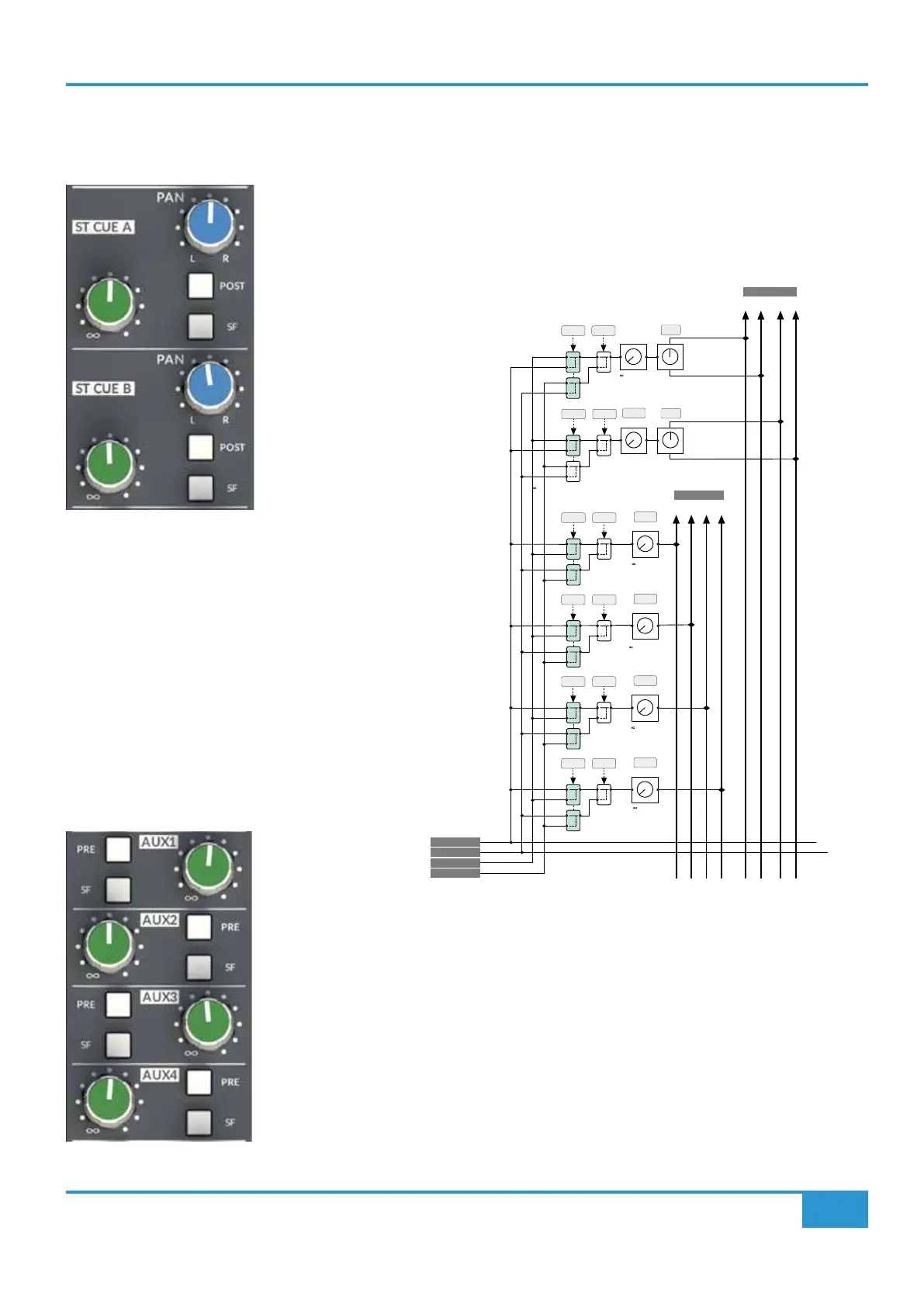

Each channel can access two Stereo Cue sends (A and B) with independent Level and Pan controls.
By default, both sends are fed from the Large Fader path, pre-fader, post-insert, but can be
switched to Post Fader (post Insert) by engaging the corresponding POST switch. Each send can
also be switched to source their feed from the Small Fader path using the SF switch.
The channel signal is unity gain to the Cue Bus
when the Send Level control is fully clockwise
and the PAN control is hard left or right. The
centre Pan level is -4.5 dB from 0 dB to each bus:
a traditional SSL compromise between typical
mono -3 and -6 dB centre points for constant
perceived level or power.
Mono Auxilliary (Aux) Sends
Each channel can access four mono Aux sends
(1 to 4) with independent level controls.
By default, the Aux sends are fed from the Large Fader path, post-fader, post-insert, but can be
switched to Pre Fader (post Insert) by engaging the corresponding PRE switch. Each send can
also be switched to source their feed from the Small Fader path using the SF switch.
The channel signal is unity gain to the Cue Bus when the Send Level control is fully clockwise.
POST
SF
PAN
L R
L R
LEVEL
POST
SF
PAN
1 2 3 4
LEVEL
PRE
SF
LEVEL
PRE
SF
LEVEL
PRE
SF
LEVEL
PRE
SF
AUX 1 - 4
CUE A B
to 0dB
to 0dB
to 0dB
to 0dB
to 0dB
to 0dB
PRE LF PATH
POST LF PATH
PRE SF PATH
POST SF PATH
