Solid State Logic ORIGIN User Manual

ORIGIN User Guide
Origin Master Section
21

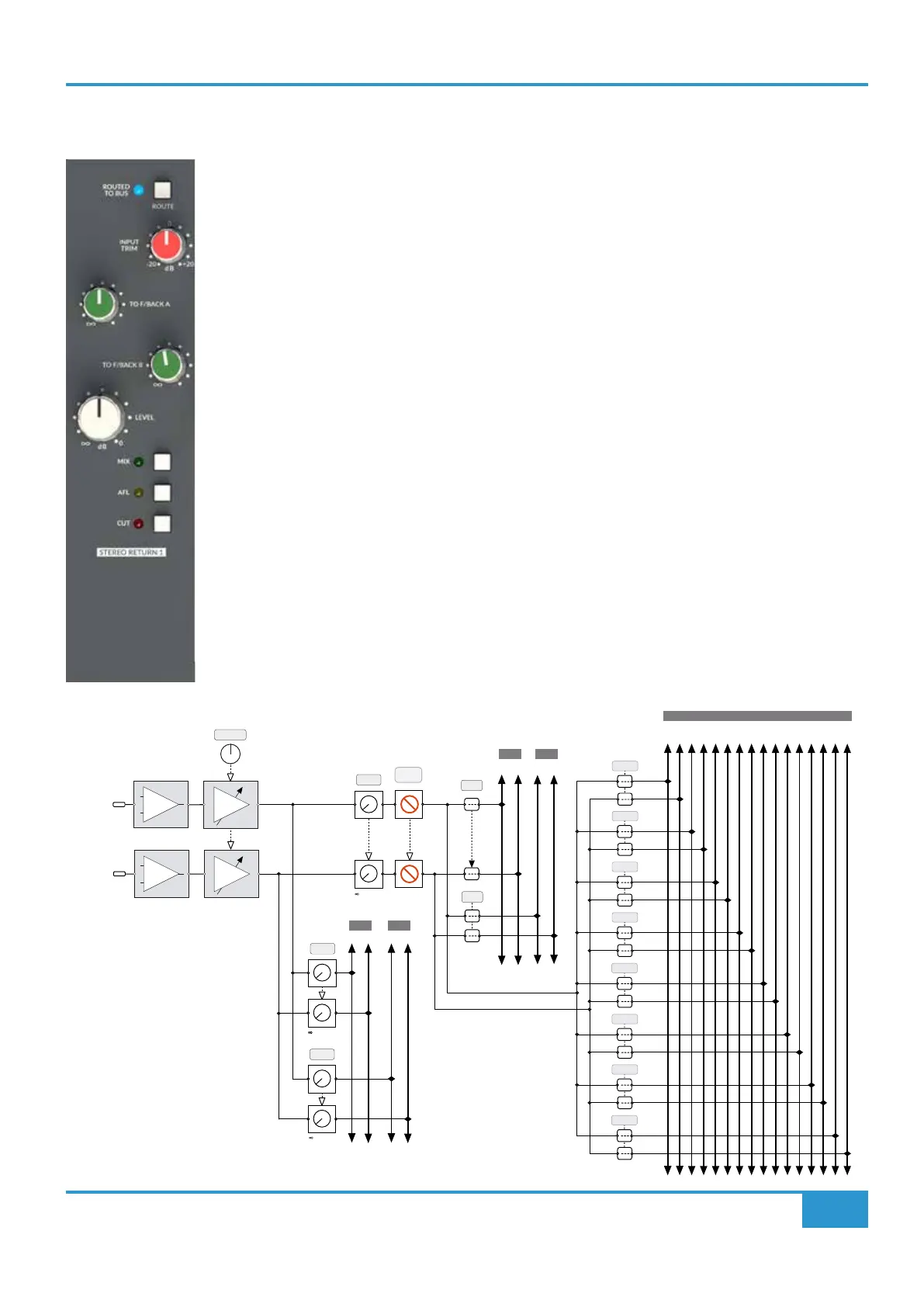

ORIGIN Master Section Detail
Stereo Returns
ORIGIN has four Stereo Returns for external stereo sources such as external effects or additional stereo
submixes.
ROUTE
The Stereo Groups are able to be routed to the Track Buses in pairs and the routing works in an identical
way to the Channel routing (for more details see page 12 or Appendix A). The ROUTED TO BUS LED
illuminates at half brightness when the return is routed to any of the sixteen buses.
TO F/BACK A
Feeds the Stereo Return signal to Foldback A. Typically this is used to add an external effect (such as
reverb) to an artists headphone feed.
TO F/BACK B
In the same way as the previous control, this feeds the Stereo Return signal to Foldback B.
LEVEL
Controls the amount of the Stereo Return to the main stereo Mix Bus (or AFL)
MIX - Routes the Stereo Return to the main stereo Mix Bus
AFL - Routes the Stereo Return to the After Fade Listen (AFL) bus (and forces the monitoring to AFL)
CUT - Mutes the Stereo Return signal to the main Stereo Mix Bus
+
-
RETURN L
± 20dB
dB
TRIM
+
-
RETURN R
dB
L R
L R
LEVEL
LEVEL
LEVEL
MIX
AFL
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1/2
3/4
5/6
7/8
9/10
11/12
13/14
15/16
CUT
FB 1
FB 2
L R
L R
to 0dB
to 0dB
to 0dB
BUSES 1 - 16
L R
MIX AFL
to 0dB
Stereo Return
F/B 1
F/B 2
