Origin Master Section
29
Listen Microphone Connections (Mic and Line Inputs)
The Listen Mic Amplier connection is on the "EXTERNAL INPUTS" DB-25 rear connector. If this DB-25 input is connected via a
patchbay, it allows the Listen Mic Amp to be over patched.
As with the Talkback Mic, after the Listen Mic Pre gain stage there is a second, summed, line-level input available on the "MAIN
MIX INS RTN & TB/LM IN" DB-25 rear connector. This can be seen in the lower half of the block diagram on the previous page. This
allows an externally amplied Mic Pre signal to be fed through the Listen Mic Compressor (This is the same circuit as the infamous
SSL Listen Mic Compressor of Hugh Padgham/Peter Gabriel's Intruder snare sound fame). There is a Listen Mic output signal on
the "F/B, MISC OUT" DB-25 rear connector (and on the patchbay, if connected). This gives an input and output path to use this
compressor creatively. If you are using this feature don't forget to disconnect, or over patch the Listen Mic Amp connections to
prevent the Listen mic signals being summed with the external Listen Line input!

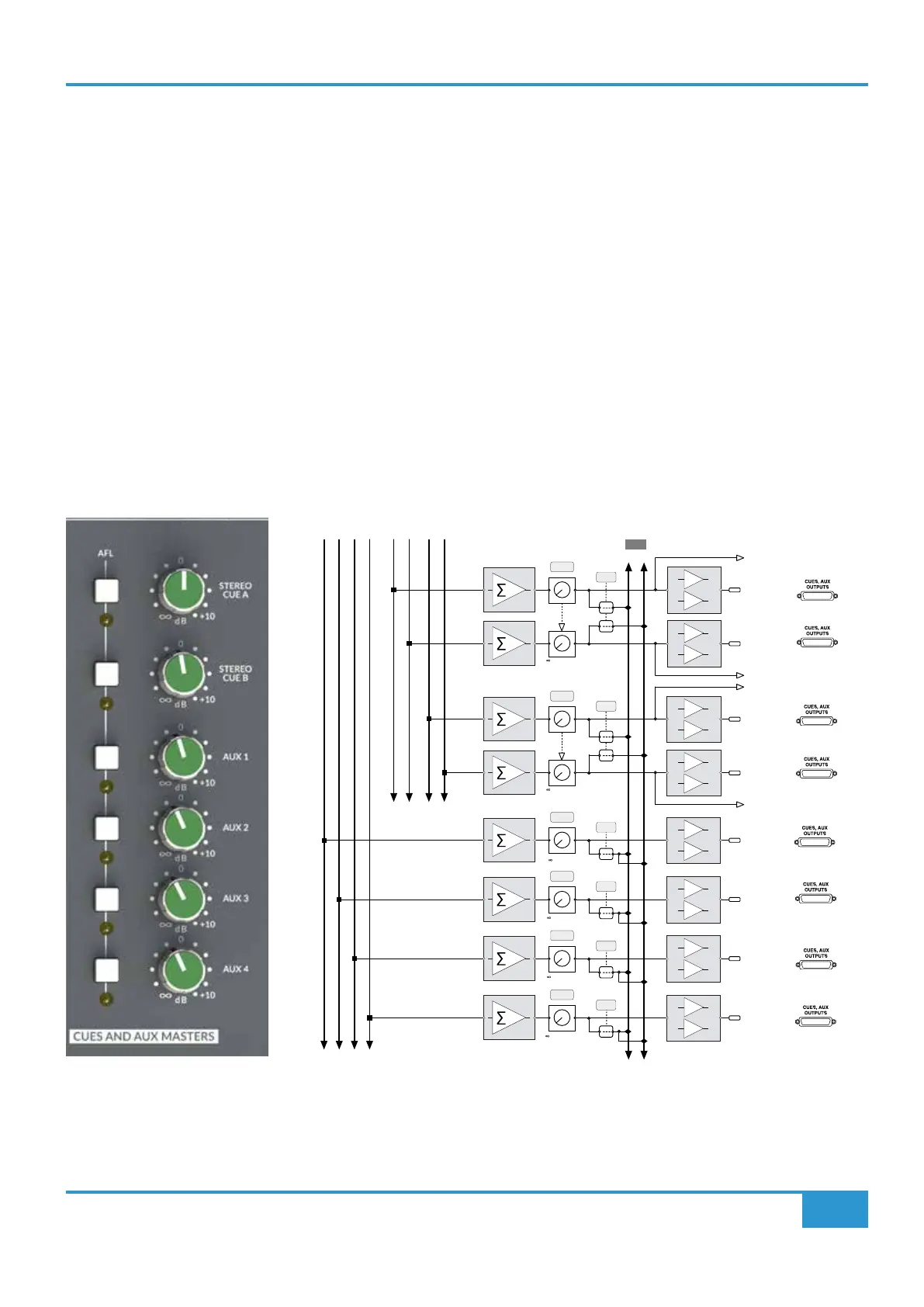

CUES AND AUX MASTERS
This section has the master level controls for the A and B Stereo Cue Mix buses and mono Aux buses 1-4. AFL switches the
selected signal into the Monitor section to allow the selected bus to be auditioned.
to +10dB
LEVEL
L R
L R
AFL
AFL
+
-
+
-
CUE AL OUT
CUE AR OUT
to +10dB
LEVEL
AFL
+
-
+
-
CUE BL OUT
CUE BR OUT
LEVEL
AFL
+
-
AUX 1 OUT
LEVEL
AFL
+
-
AUX 2 OUT
LEVEL
AFL
+
-
AUX 3 OUT
LEVEL
AFL
+
-
AUX 4 OUT
CUE AL
CUE AR
CUE BL
CUE BR
to +10dB
to +10dB
to +10dB
to +10dB
MONO AUX BUSES
1 2 3 4
STEREO CUE BUSES
AL AR BL BR
