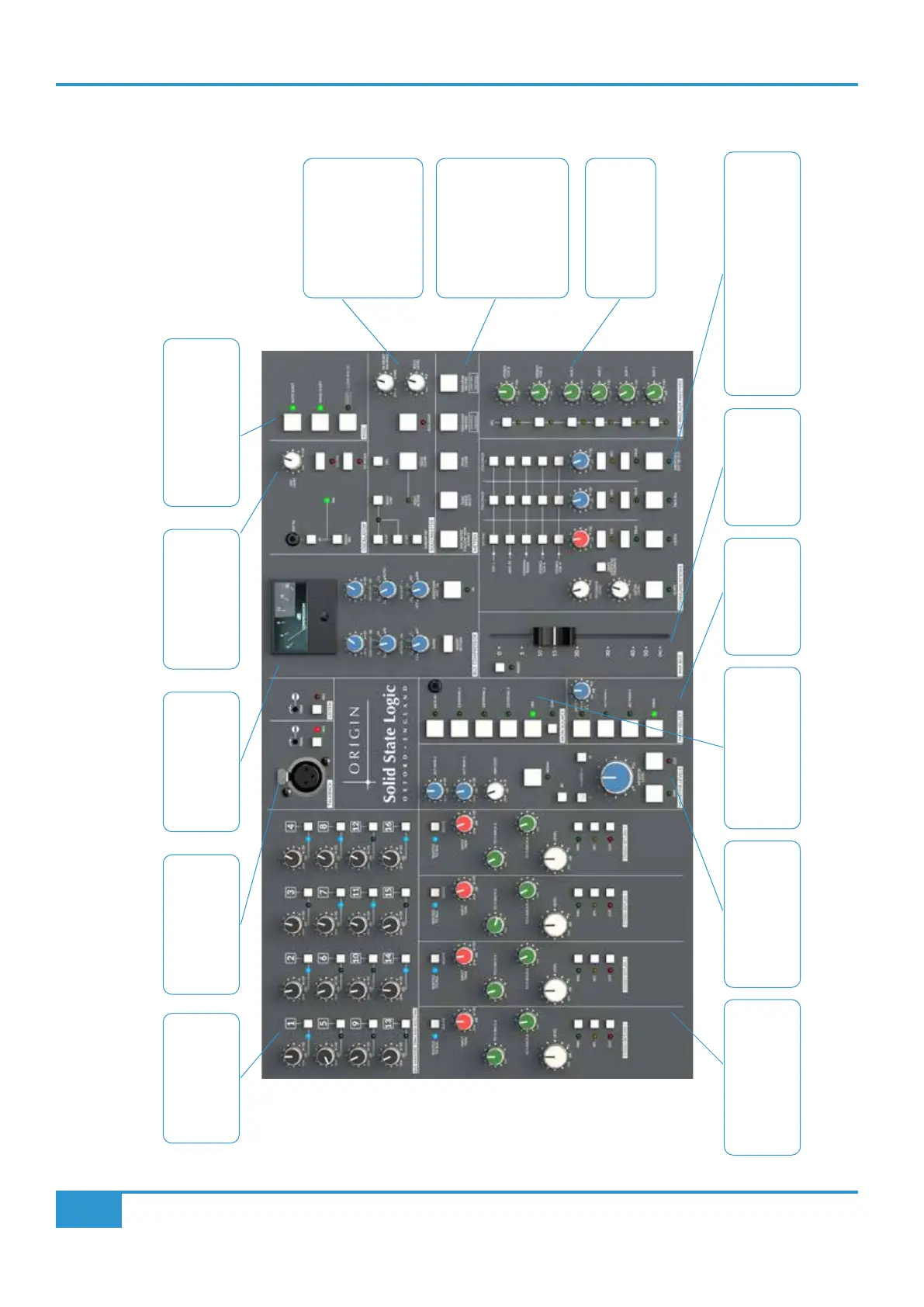

ORIGIN Master Section
Overview
Bus Trim Masters and
Routing
Sixteen +/-10 dB Trims for
the track buses
Routing assign switches for
each bus
Talkback and Listen Mic
XLR input for Talkback Mic
Level Trims and +48V
switches for Talkback and
rear panel Listen Mic Input
Bus Compressor
SSL Bus Compressor with
traditional and additional
Ratio settings, switchable
Sidechain High Pass Filter
and Sidechain from Insert
Return Switch
Oscillator
400 Hz Internal Oscillator with
additional switched 3.5mm
Jack external input. Level
Trim plus To Mix and To Bus
switches
Misc Section
Unique Auto Sleep function enables
automatic detection of prolonged
inactivity to put the console in
stand-by, drastically reducing
power consumption. Wake/Sleep for
manual control of the power state.
Solo Master Section
Comprehensive Solo controls
provide choice of Solo In
Front with Mix Balance, Solo
In Place for Large, Small
& Group Faders and PFL
options.
Solo Level, Solo Clear and
Red Light Switch complete
the available options.
Meters Section
Peak Hold selection plus
Peak Clear for all console LED
Meters.
Mix Meter Follow Monitor
Source option increases
main mix meter exibility.
Independent DIM controls
for path Channel and
Monitor Inputs reduce meter
distractions in busy sessions
CUE and AUX Masters
Master Output Trims and AFL
Switches for Stereo Cue A
and B buses plus mono Aux
Buses 1 to 4
Stereo Returns
Stereo Return Inputs with ability to route to Mix and Track Buses plus
level controlled Feeds to Stereo
Foldback Outputs A & B
Monitor Level Controls
With independent Trims for
Alternate Monitors 1 & 2,
variable DIM level, MONO plus
Left & Right MUTES and øL
polarity switch.
Monitor Source Selector
Three Stereo External Sources plus
a front panel stereo 3.5mm Jack
Input. Sum switch allows selected
monitor sources to be listened to
simultaneously.
Monitor Speaker
Selector
Main Monitor plus two
Alternate monitor sets
plus headphones with
level control (under
console armrest)
Communications Section
Master Talkback and Listen controls. Matrix of sources
and outputs manage communications and foldback
to studio oor and artists. Listen To Talkback feature
provides a simple way for artist to artist communication
in larger recording rooms.
Mix Fader
High Quality 100 mm
Audio Fader
Fully balanced switched
Insert for external bus
processing
