SOLIS S6 Series - Page 20

User Manual
4. Installation
19
3. Crimp wires, screw torque 0.8N·m±0.1N·m.

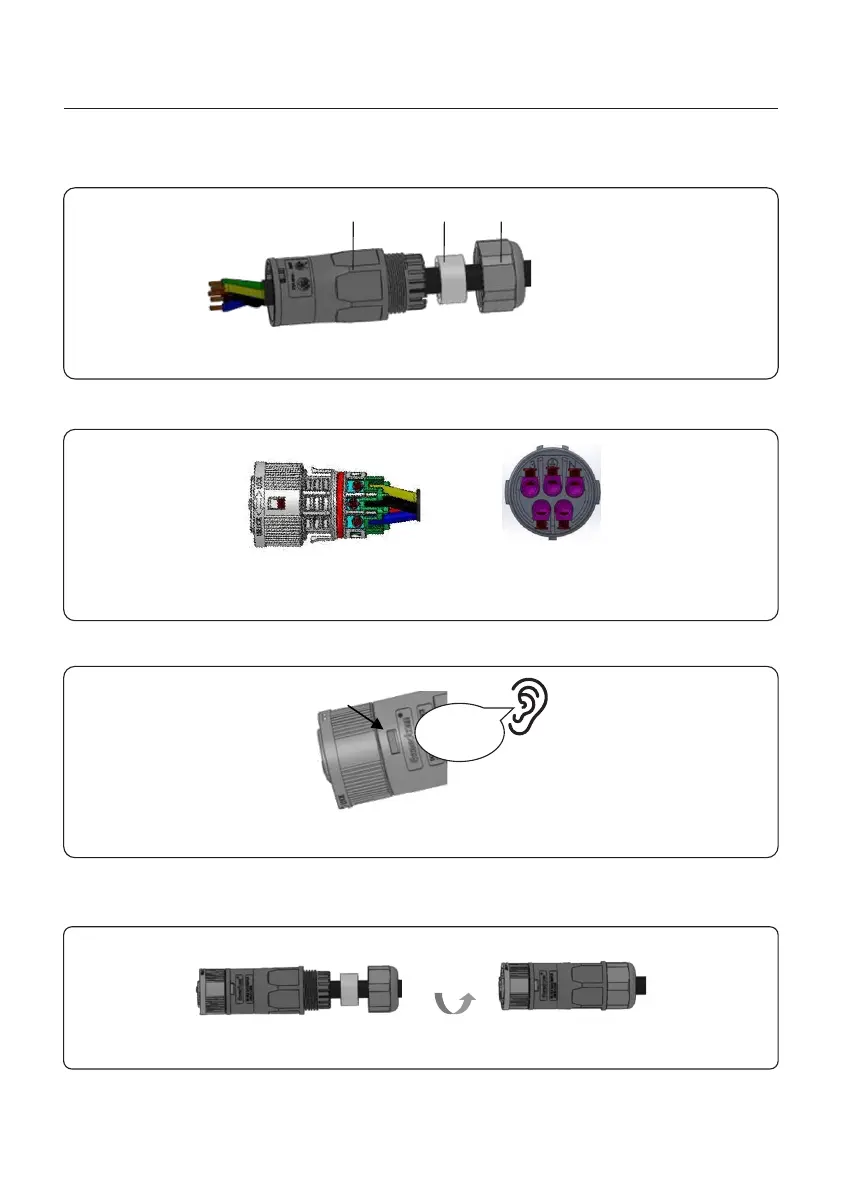

2. Disassemble the AC Backup Connector and set the parts on the cable.
Figure 4.25
4. Push Housing into Body until you hear a “click” sound.
Figure 4.26
Click
Housing
5. Insert Seal Body and Claw into the Body, and then tighten the Nut with torque
2.5N·m±0.5N·m.
Figure 4.27
Figure 4.24
A: Body
B: Seal body
C: Nut
A
B C
AC Backup
