5. INSTALLATION

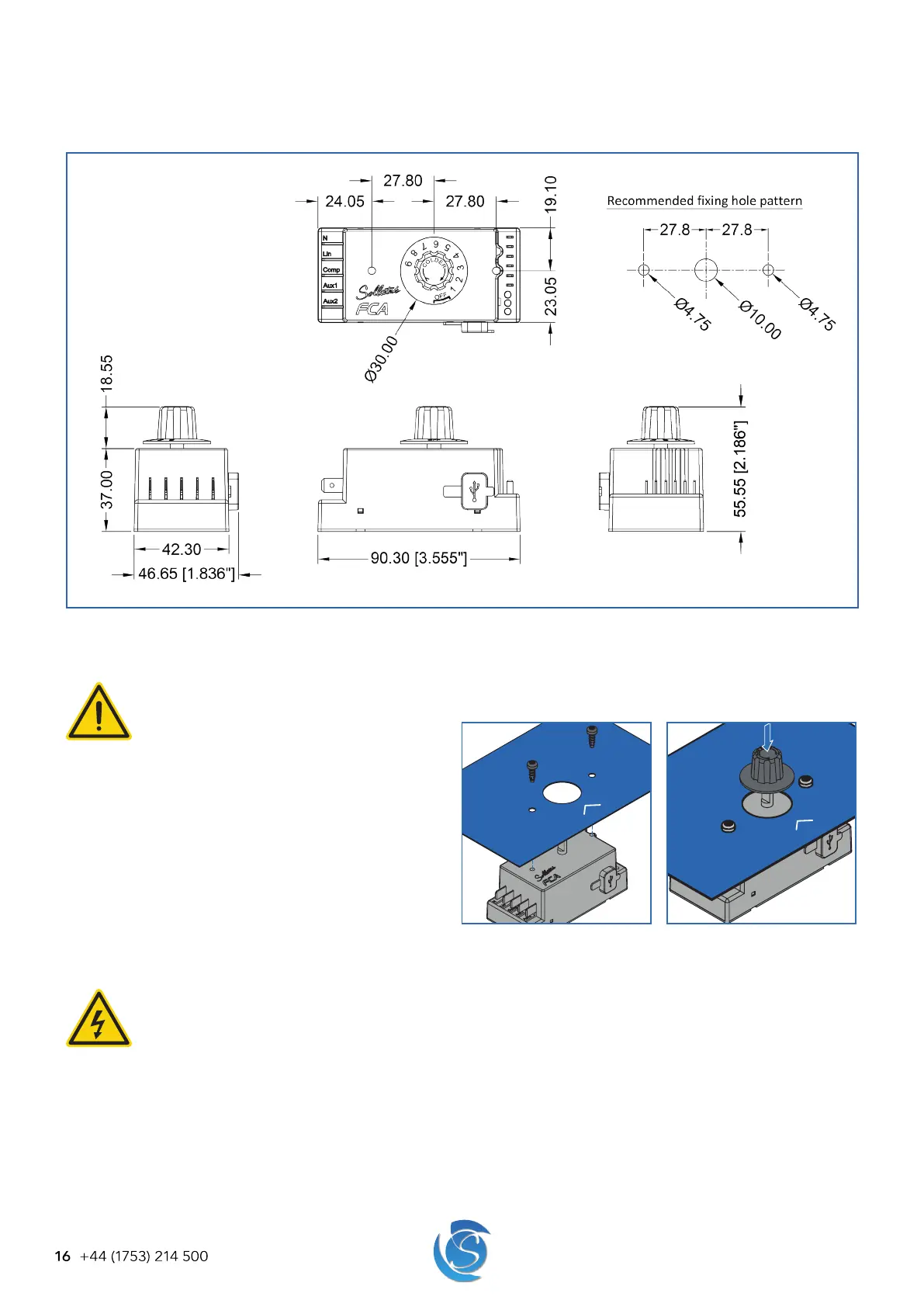

5.1 FCAx3 DIMENSIONS
5.2 MOUNTING INSTRUCTIONS
WARNING!
FCAx3 MUST be mounted with terminals in an isolated area, either in a plastic or earthed metal case.
1. Mark and drill holes for the dial shaft and mounting
screws in the surface where the FCAx3 is to be mounted
according to the panel cut-out. Ensure all holes are free
of burrs and sharp edges.
2. Insert the FCAx3 dial shaft through the hole from the
rear of the panel.
3. align the mounting holes and secure the FCAx3 into
position with the provided screws.
4. Push the dial onto the shaft.
5.3 WIRING CONNECTIONS
DANGER! ELECTRIC SHOCK HAZARD - LIVE TERMINAL
This is a non-isolated product. The sensor inputs and outputs are not electrically isolated from the power terminals
therefore the supply MUST be disconnected from the controller before installing/disconnecting, repairing, or
programming the controller, inputs, outputs, and external devices.
Ensure exposed connectors/wires of connected inputs, outputs and external devices do not touch the frame or
chassis of the cooler or other enclosures otherwise, damage to the controller, equipment, and the cooler will occur.
This equipment is to be installed or serviced by trained personnel only.
