5. Mounting

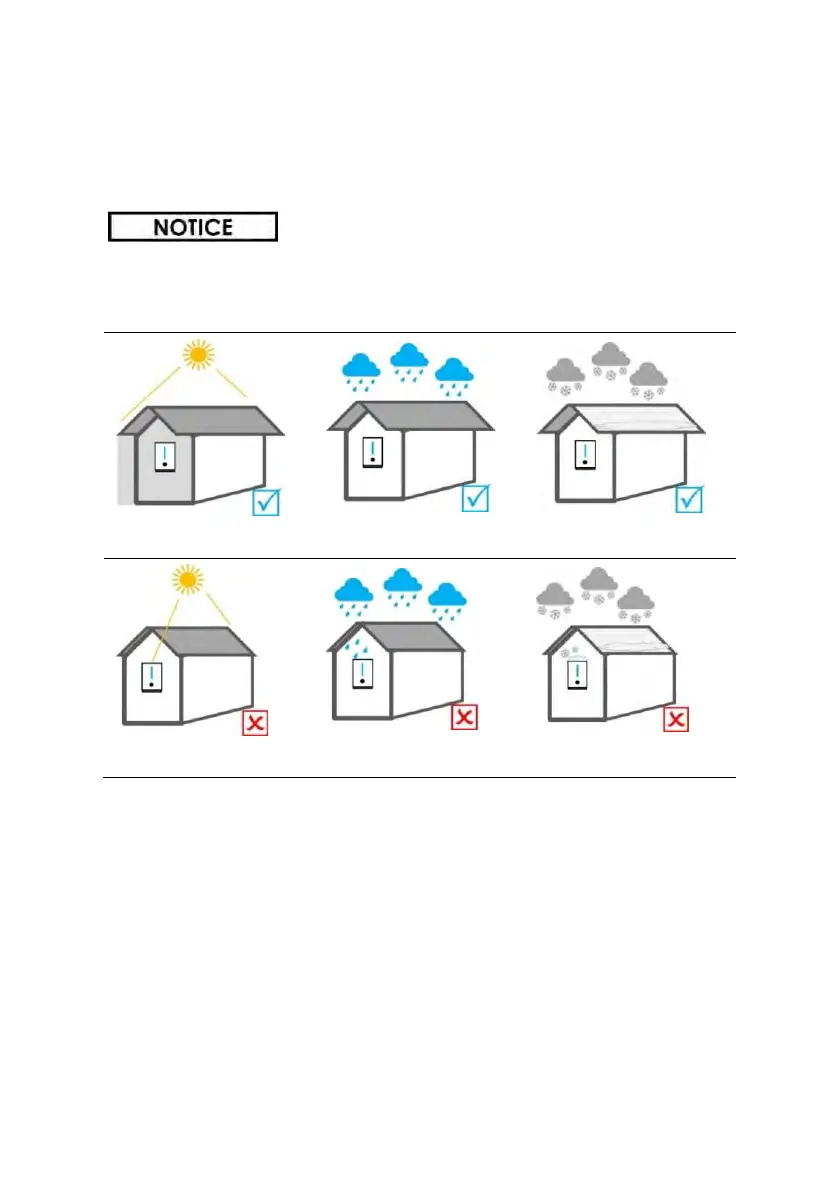

5.1 Requirements for Mounting
Check to make sure the installation site does not fall into any of
the following conditions: If any do, then a risk assessment will be
required.
• Unsafe due to assessment of occupational health safety risks.
• The ambient temperature is outside the range of tolerable
ambient temperature (-20°C to +60°C, -4°F to +140°F).
• Higher than the altitude of 2,000m above sea level. Above
2000m the inverter output will be de-rated.
• Close to flammable materials or areas where flammable
materials are stored.
• Prone to be damaged by sea water.
• Prone to be flooded or high levels of snow falls.
• Close to corrosive gas or liquid (for example, locations where
