7. Operating of the Inverter
7.1 LEDs and Graphical Display
The LEDs indicate the operating state of the inverter and also
battery SOC.
LED
Status
Explanation
Green LED
Glowing
The inverter has been powered up.
Red LED
Glowing
An Error has occurred.
Blue LEDs
Full Length
SOC > 75%
3 Bars
75% > SOC > 50%
2 Bars
50% > SOC > 25%
1 Bar
25% > SOC > 10%
No Light
SOC < 10% or BMS not Connected

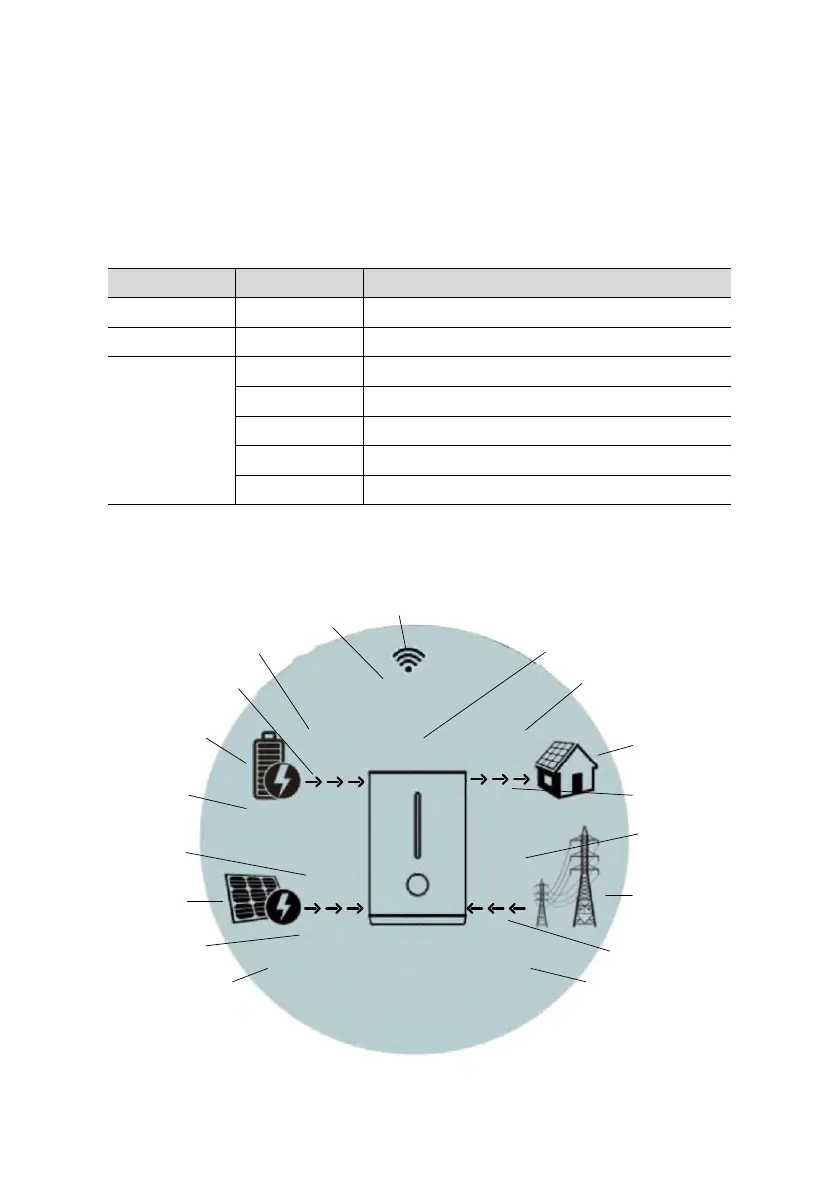

The graphical display shows the detailed information of the
inverter.
