6.8 WiFi Stick Connection

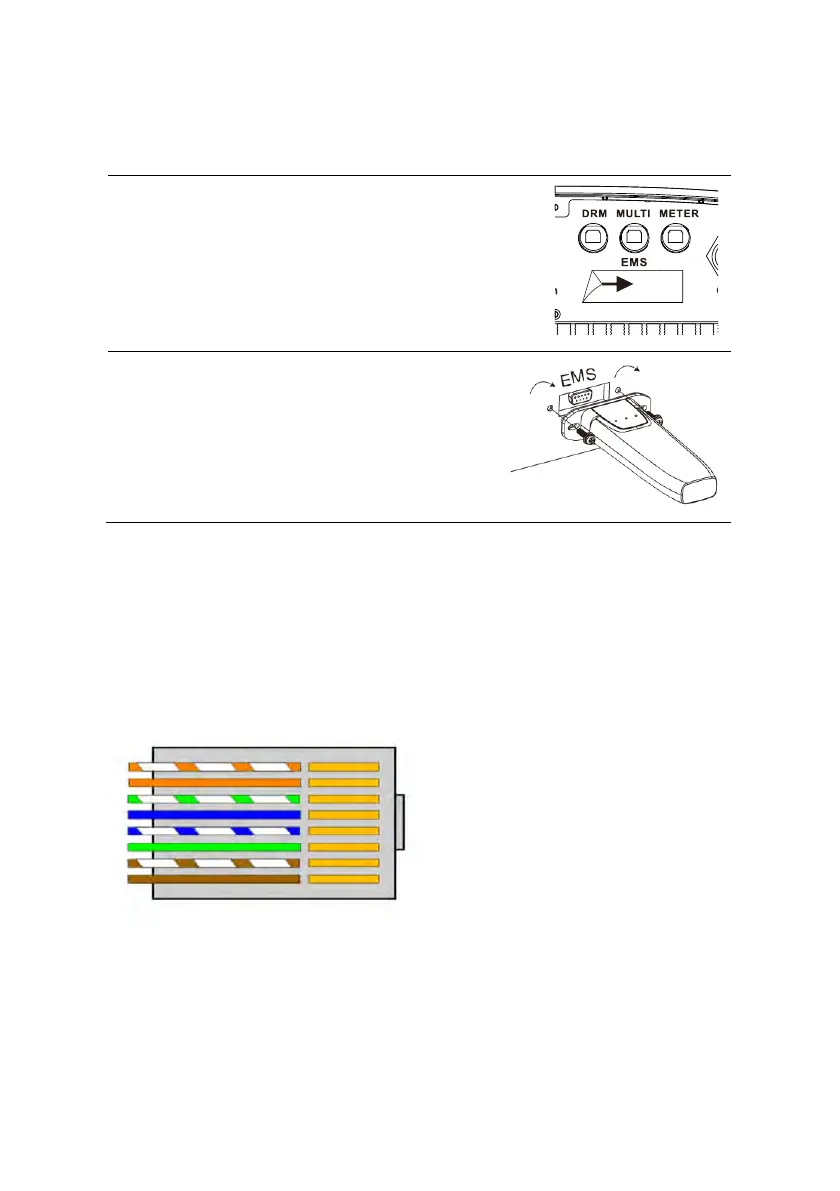

Procedure:
STEP 1:
• Peel off the tape that covers the
EMS port.
STEP 2:
• Insert the WiFi stick to the EMS
port and fasten the two screws
tight.
6.9 DRM Connection
DRM is provided to support several demand response modes by
certain control signals.
“DRM” Connector Pin Definition
1
2
3
4
5
6
7
8
1. DRM1/5
2. DRM2/6
3. DRM3/7
4. DRM4/8
5. 3.3V
6. DRM0
7. 3.3V
8. GND
