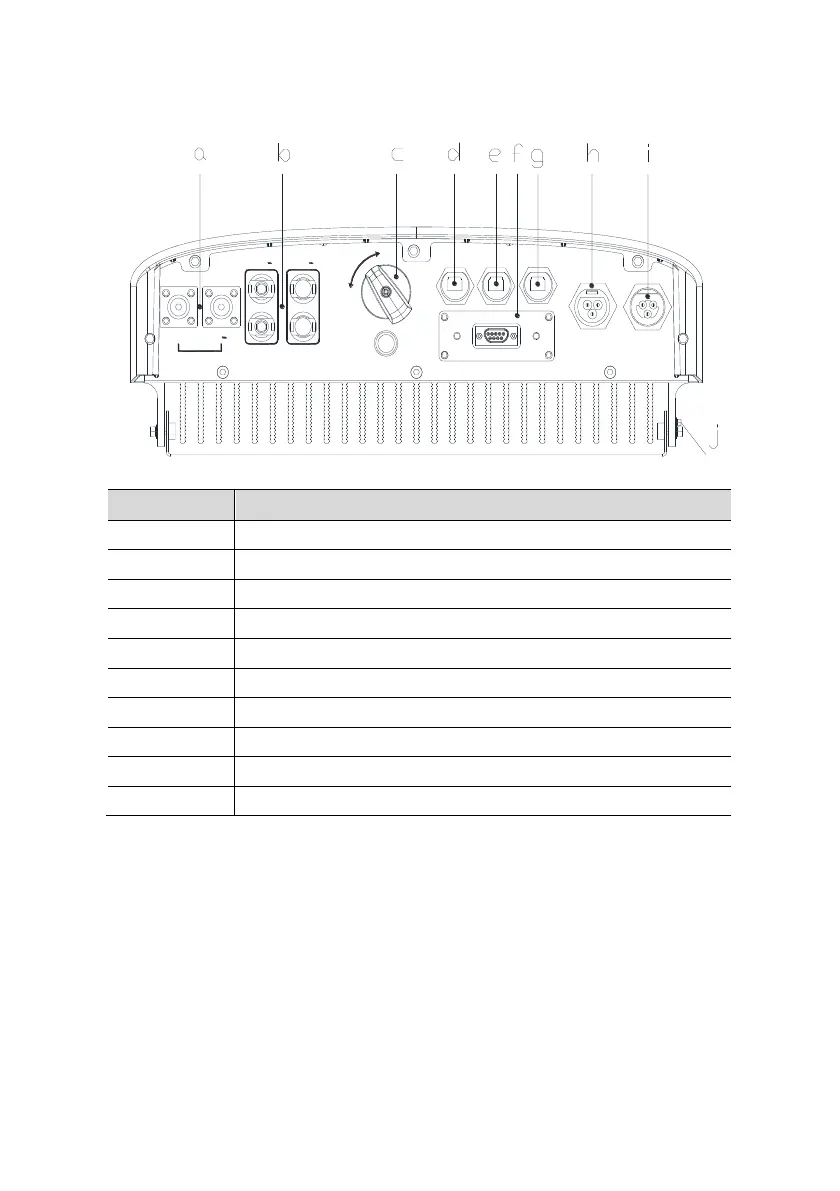

6.2 Overview of the Connection Area
B+ B
BATTERY
PV1+
PV1
PV2+
PV2
ON
OFF
EMS
DRM
EPS
GRID
Multi BMS
Position
Designation
a
Battery Connectors
b
PV Inputs
c
DC Switch (optional)
d
DRM Port
e
MULTI Port (for Meter & Other Communications)
f
EMS Port (for WiFi Stick or other EMS Controllers)
g
BMS Port
h
EPS Output
i
Grid Connector
j
Additional Grounding Point
