6. Electrical Connection

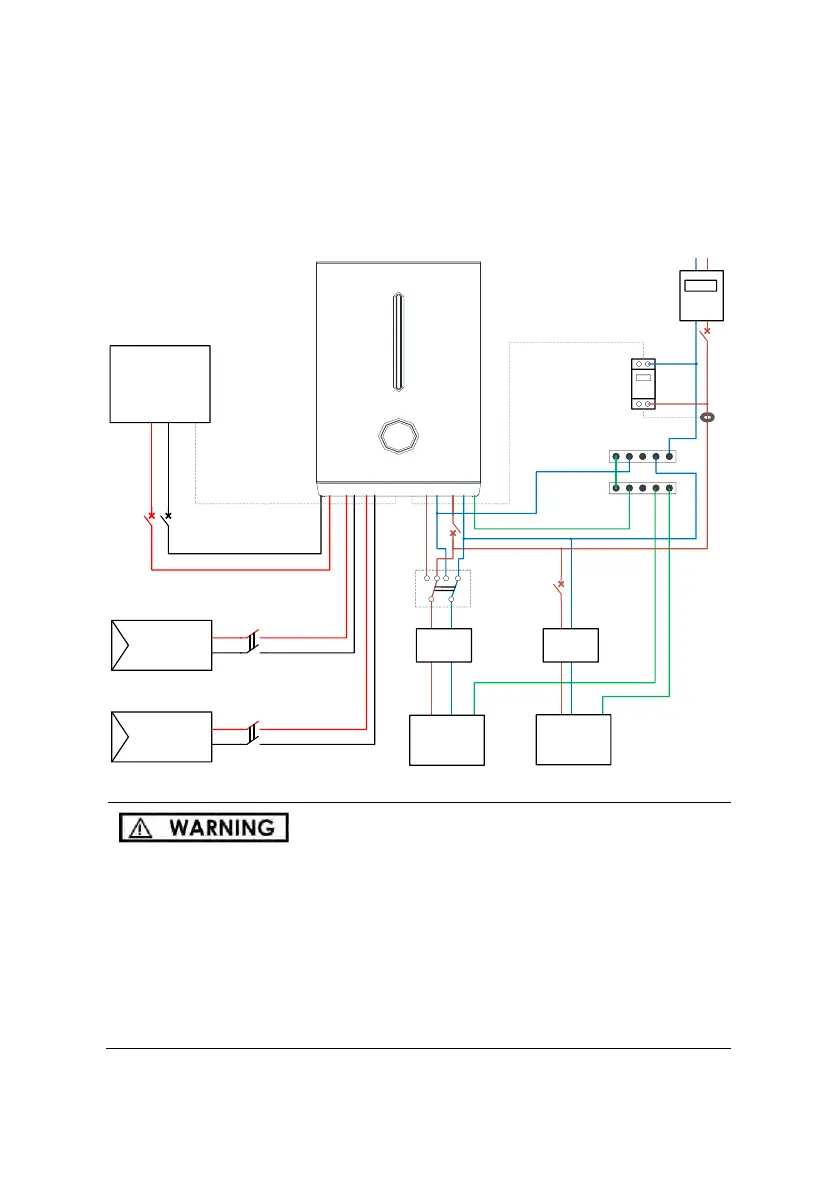

6.1 Wiring Diagram
Wiring Diagram for Australia & New Zealand
PV1+
PV1-
PV2+
PV2-
RCD RCD
N L
Smart
Meter
N-Bar
E-Bar
Hybrid Inverter
Battery
Energy
Meter
BATTERY
PV 1
PV 2
BMS
MULTI
EPS
GRID
EPS
Load
General
Load
kWh
Transfer
Switch
In Australia and New Zealand, electrical installation and
maintenance shall be conducted by licensed electrician and
shall comply with Australia/New Zealand National Wiring Rules.
Because the inverter does not maintain neutral integrity, an
external connection must be adopted in Australia and New
Zealand. 30mA Type “A” RCD can be used where required
AS/NZ 3000
