SOLTEK SL-85DR-C - 2-6.2 Factory Test (by JP2); 2-6.3 Memory Module Voltage Select (by JP3;JP4)

24
85DR-C

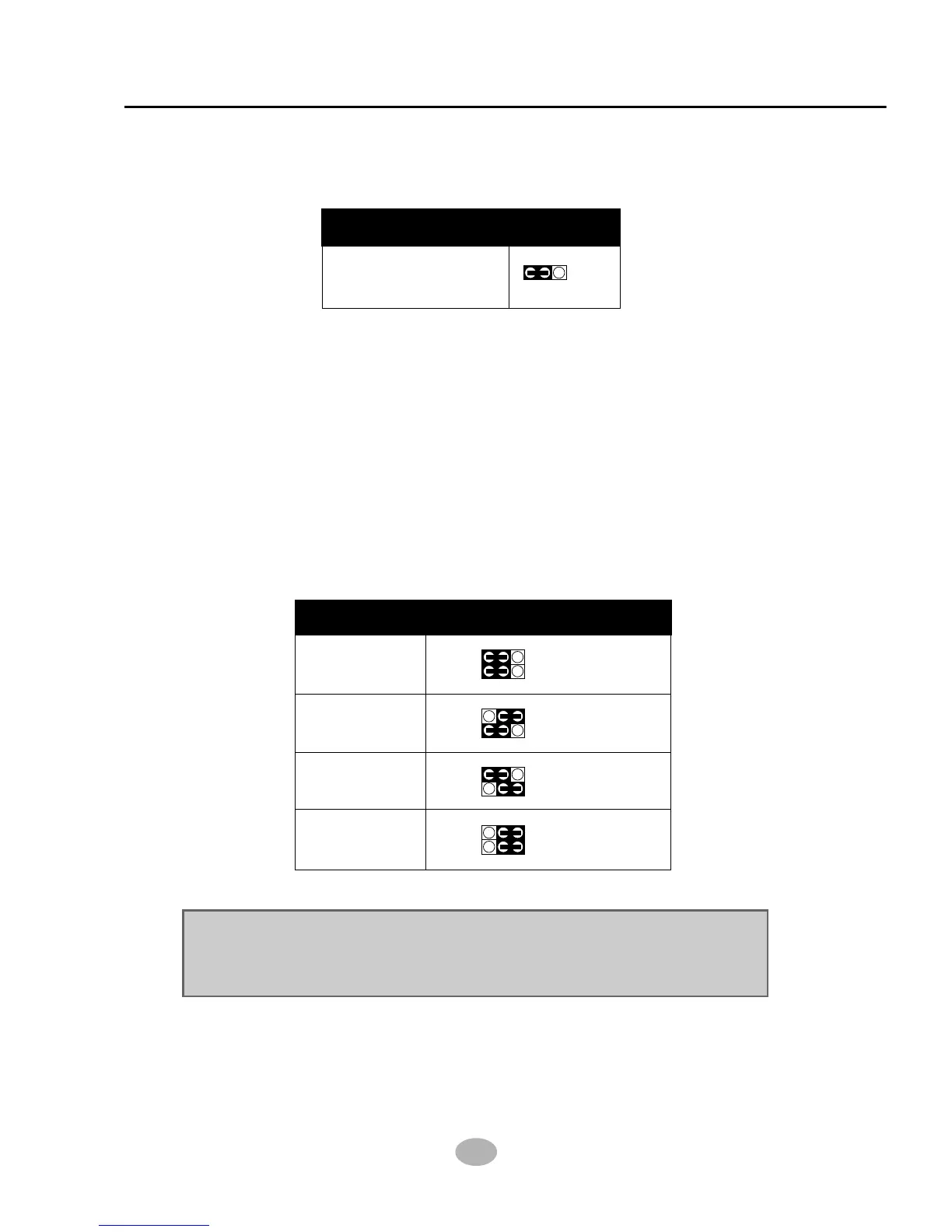

2-6.3 Memory Module Voltage Select (By JP3/JP4)
This function allows you to select the voltage supplied to the DRAM. The
default voltage (2.5V) should be used unless processor overclocking
requires a higher voltage.
NOTE! Using a higher voltage may help when overclocking but may result
in shortening of your computer components’s life. It is strongly recommended
that you leave this setting at its default.
2.6V
2.7V
2.8V
Memory Module Voltage Select
2.5V
(default)
13
13
JP3
JP4
13
13
JP3
JP4
13
13
JP3
JP4
13
13
JP3
JP4
2-6.2 Factory Test (By JP2)
Only for factory
test.
Factory Test
JP2
13
