SOLTEK SL-85DR-C - 2-7.2 WOL1 Wake on LAN

28
85DR-C
1 4
DIMM1 DIMM2
1
mPGA478B
Intel RG82845-D
Intel RG82845
1 3
FAN2
1 3
FAN3
1 3
FAN1
AGP 4X
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
PCI 6
FWH
WOL1
1 3
LPC I/O
Controller
AC'97
Codec
CNR
SW1
ON
DIP
1 2 3 4 5
IDE2
IDE1
1
1
1
FDC1
Li
Battery
82801BA
JBAT1
1 3
JP3 JP4
1 3 1 3
JP13
1 3
JP2
1 3
1 3
1 3
RT2
RT1
Peripheral Power Connector
+12 Power Connector
4 3 2 1
Main Power Connector
USB1
1
16
PS/2 MOUSE
PS/2 K/B
upper
lower
USB1 USB0
upper
lower
LPT1
COM1COM2
MIC
GAME/MIDI PORT
LINE OUT
LINE IN
NJP1
SPEAK RST KEYLOCKPWR/LED SUS_LED
IDE_LED IR PWR SMI
30
1
++
--
+
-
CD9
CD10
1 4
JAGP1
JAGP2
LED1
SCR1
CMEM1
1

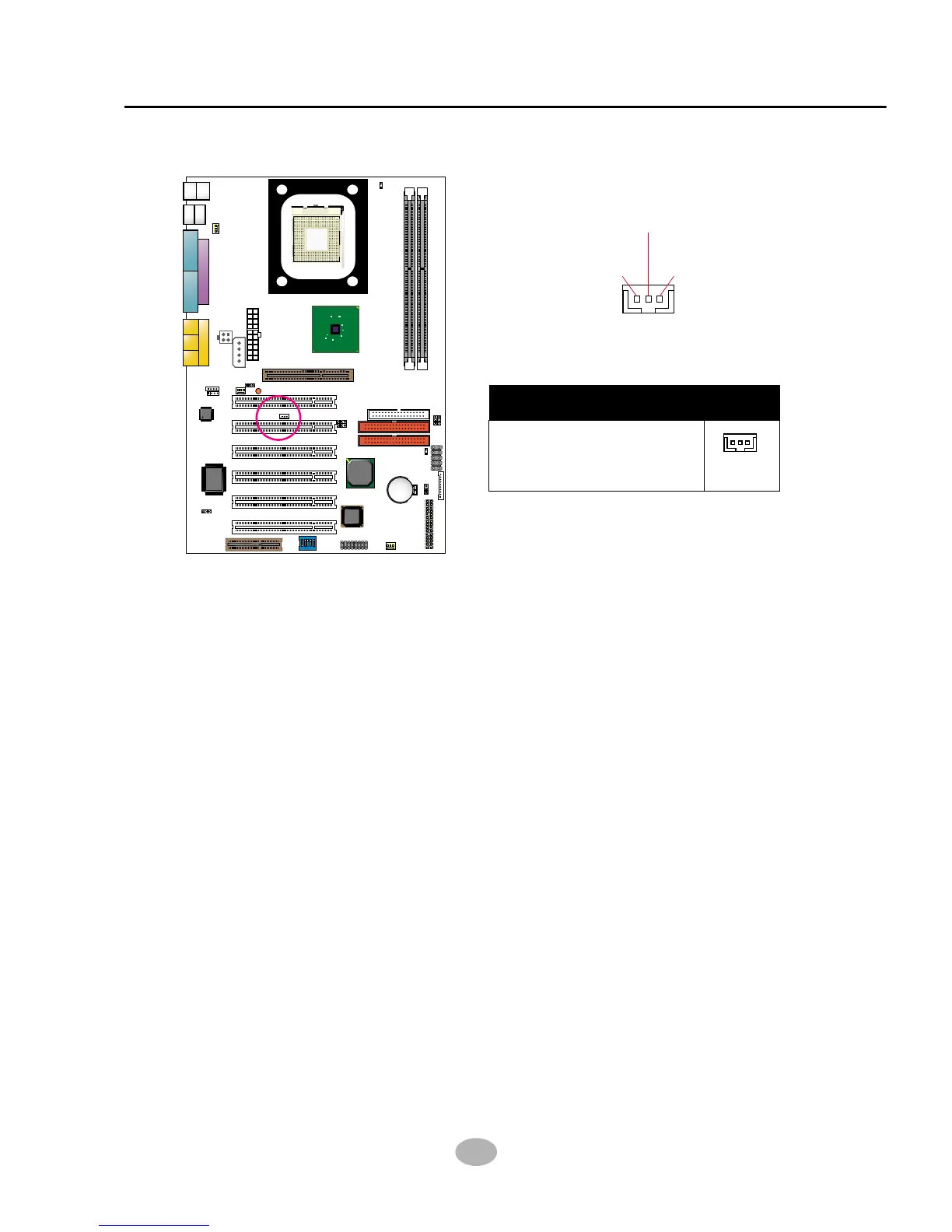

2-7.2 WOL1 Wake On LAN
(1) This connector connects to a LAN card with a Wake On Ring output.
The connector powers up the system when it receives a wake-up packet
or signal through the LAN card.
(2) This feature requires that Ring Power Up Control feature is enabled in
the BIOS setting “Power Management Setup” and that your system
must be on ATX power supply with at least 720mA / +5V standby power.
Connect the Wake On
LAN signal from LAN
card to WOL1
WOL1
Wake On LAN
GND
Ping
+5V
Standby
