MIC-5010, MIC-5005 – USER MANUAL
After the measure-
ment is completed,
read the result.

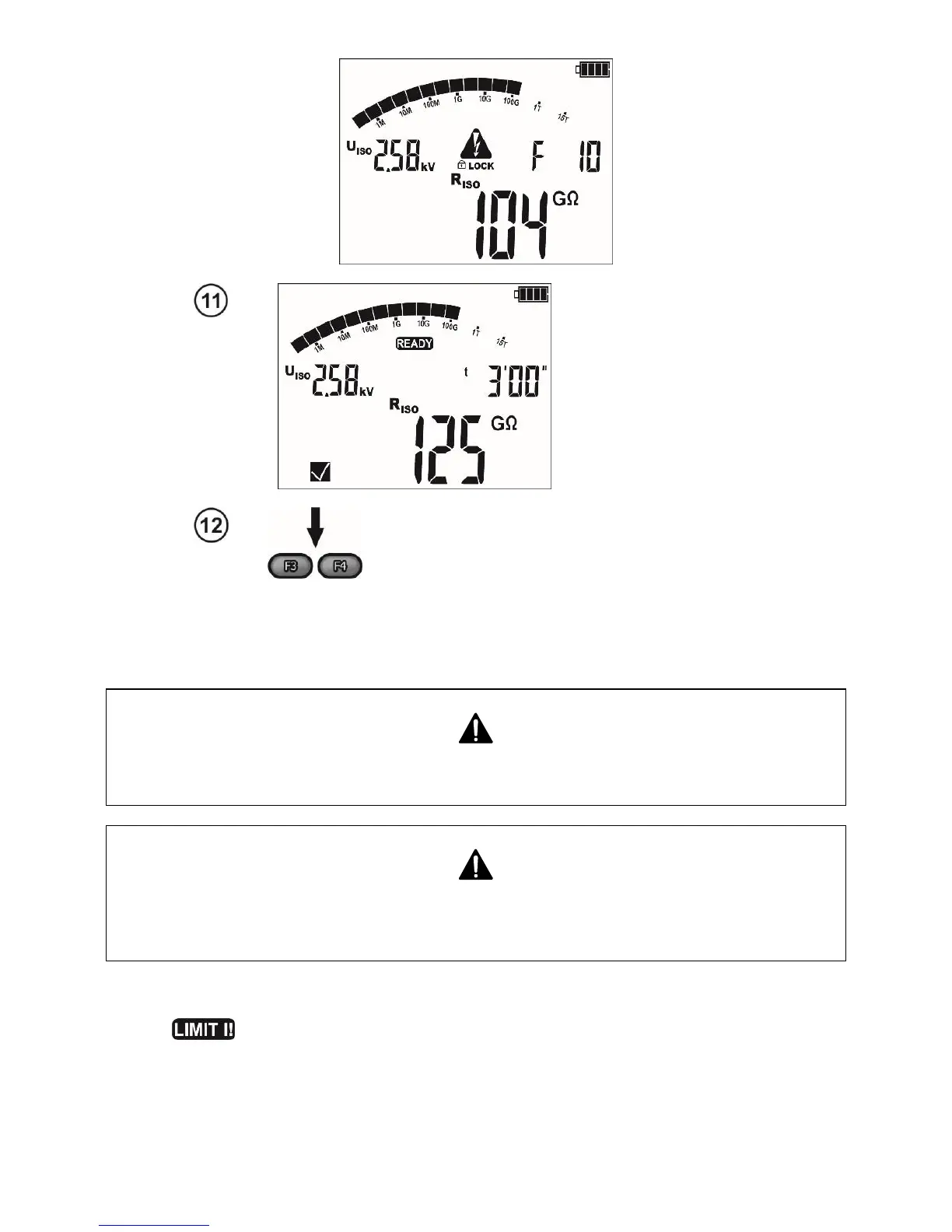

Use the F3 and F4 buttons (SCREEN) to see indi-
vidual components of the result in the following or-
der:
R
ISO
→I
L
and C→ Rt1 and It1→Rt2 and It2→Rt3
and It3→Ab1 (DAR)→Ab2(PI)→R
ISO
, where C – is
the capacitance of the tested object.
During measurements of insulation resistance, dangerous voltage up to 5 kV occurs at the
ends of test leads of the meter.
It is forbidden to disconnect test leads before the measurement is completed. Failure to obey
the above instruction will lead to high voltage electric shock and make it impossible to dis-
charge the tested object.
- Disabling t2 will also disable t3.
- Timer measuring the measurement time is started when U
ISO
voltage is stabilized.
- Symbol informs of an operation with limited inverter power. If this condition persists for 20
seconds, the measurement is interrupted.
- A short tone informs of passing 5 s periods of time. When the timer reaches characteristic points (tx
times), then for 1 s a symbol (mnemonic) of this point is displayed which is accompanied by a long beep.
