MEASUREMENT MESSAGES
NOTE!
The meter is designed for operation at rated phase voltages of 220 V, 230 V and 240 V and phase-to-phase voltages
of 380 V, 400 V, 415 V.
Connecting voltage higher than allowed between any of the test terminals may damage the meter and cause a hazard
to the user.

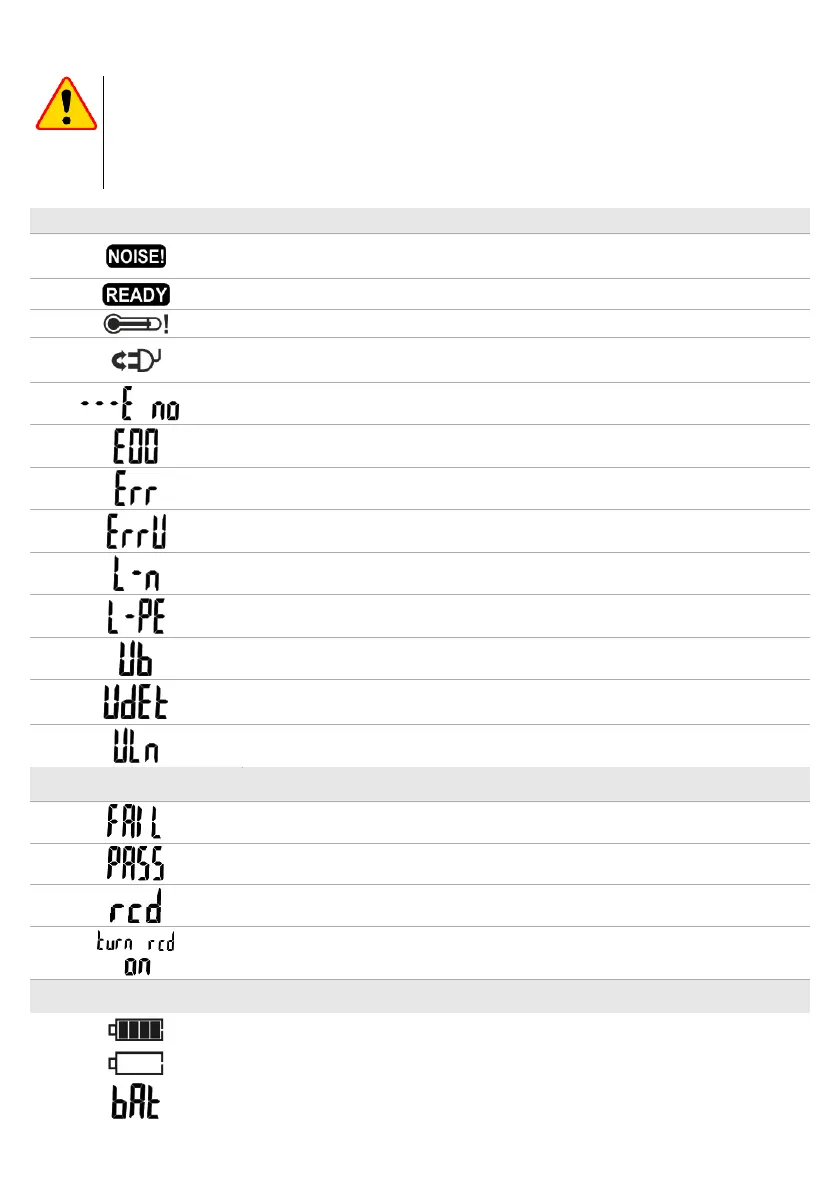

Measurements
Interference voltage occurs on the tested object. Measurement is possible but may be bur-
dened with additional uncertainty.
The meter is ready for measurement.
Maximum temperature of the meter is exceeded. The measurement is blocked.
Phase connected to N terminal instead of L terminal (for example, exchange of L and N in
the mains socket).
An incompatibile measurement adapter is connected to the meter.
Short-circuit loop of the meter is faulty.
Error during measurement.
Error during the measurement: loss of voltage after the measurement.
Voltage on terminals L and N is not within measurable range.
Voltage on terminals L and PE is not within measurable range.
Safe contact voltage exceeded.
The tested facility is live. The measurement is blocked. Immediately disconnect the meter
from the object (both test leads).
Error in connection of N conductor.
RCD measurements
RCD not in good working order.
RCD in good working order.
RCD did not trip or tripped too late.
Switch on the RCD.
Battery / rechargeable battery status
Charged.
Discharged.
Completely discharged. Replace or recharge the batteries.
