A6T/A6/A5 Portable Ultrasonic Diagnostic System

4701-0040-01A

3-19

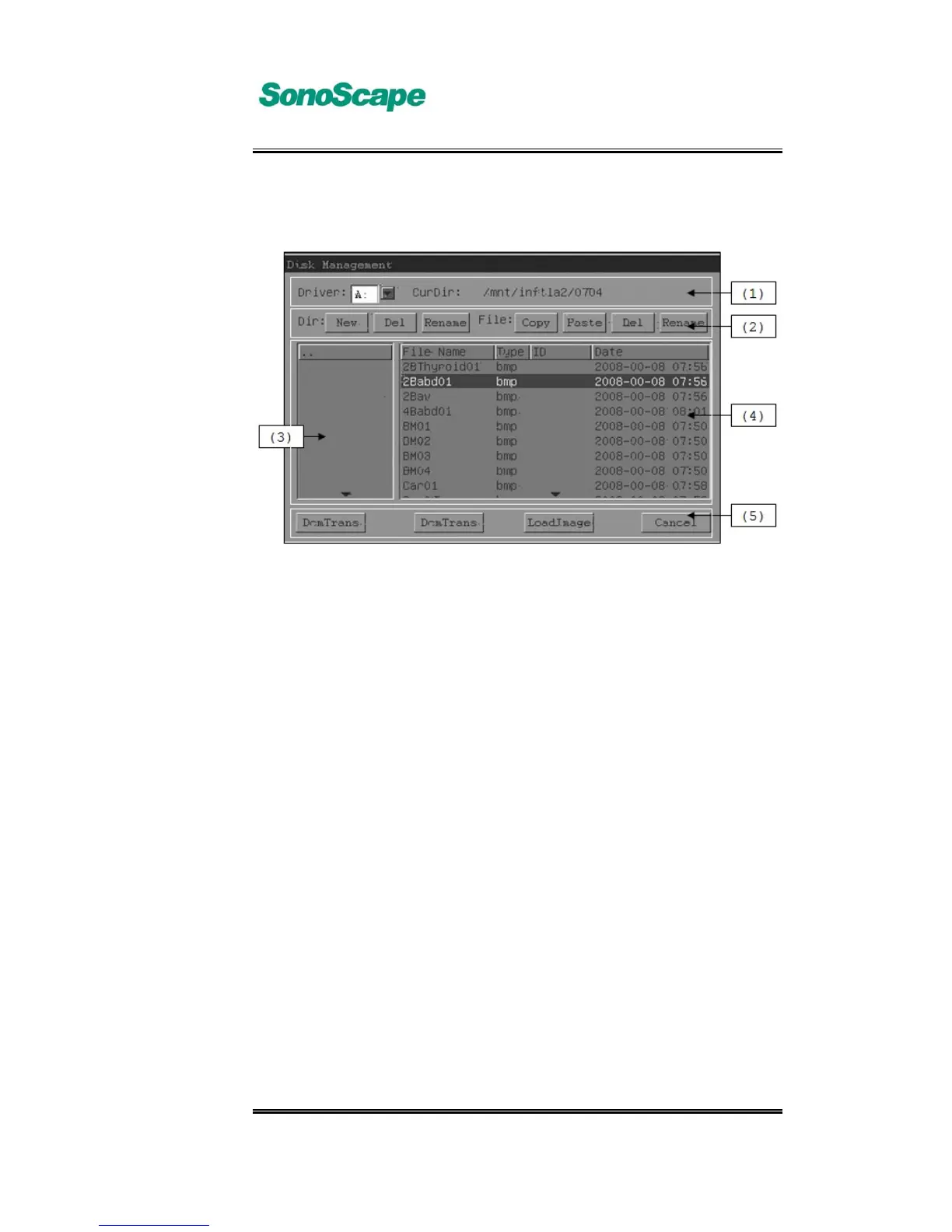

Disk Management page is shown below:

Fig. 3.4.3.2-a Disk Management page

Disk Management screen is divided into:

(1) Driver and current path display area;

(2) Directory and file operation select area;

(3) Directory display area for the current path;

(4) File display area for the current path;

(5) Other operations.

The operation of Disk Management is described below:

Drive drop down frame selection，A is the system disk；B、C is the external

U disk.

z Dir (Directory)

The Dir is only valid for an external USB disk. The user shall select the USB

disk (Driver B, C) from the driver com-box, and on the left of the file manager

it displays the USB disk directory.

 .. Click ‘.’ to go to the upper level directory.

Sonoscape A6T User Manual
