16 Instruction for use | Supercal 5

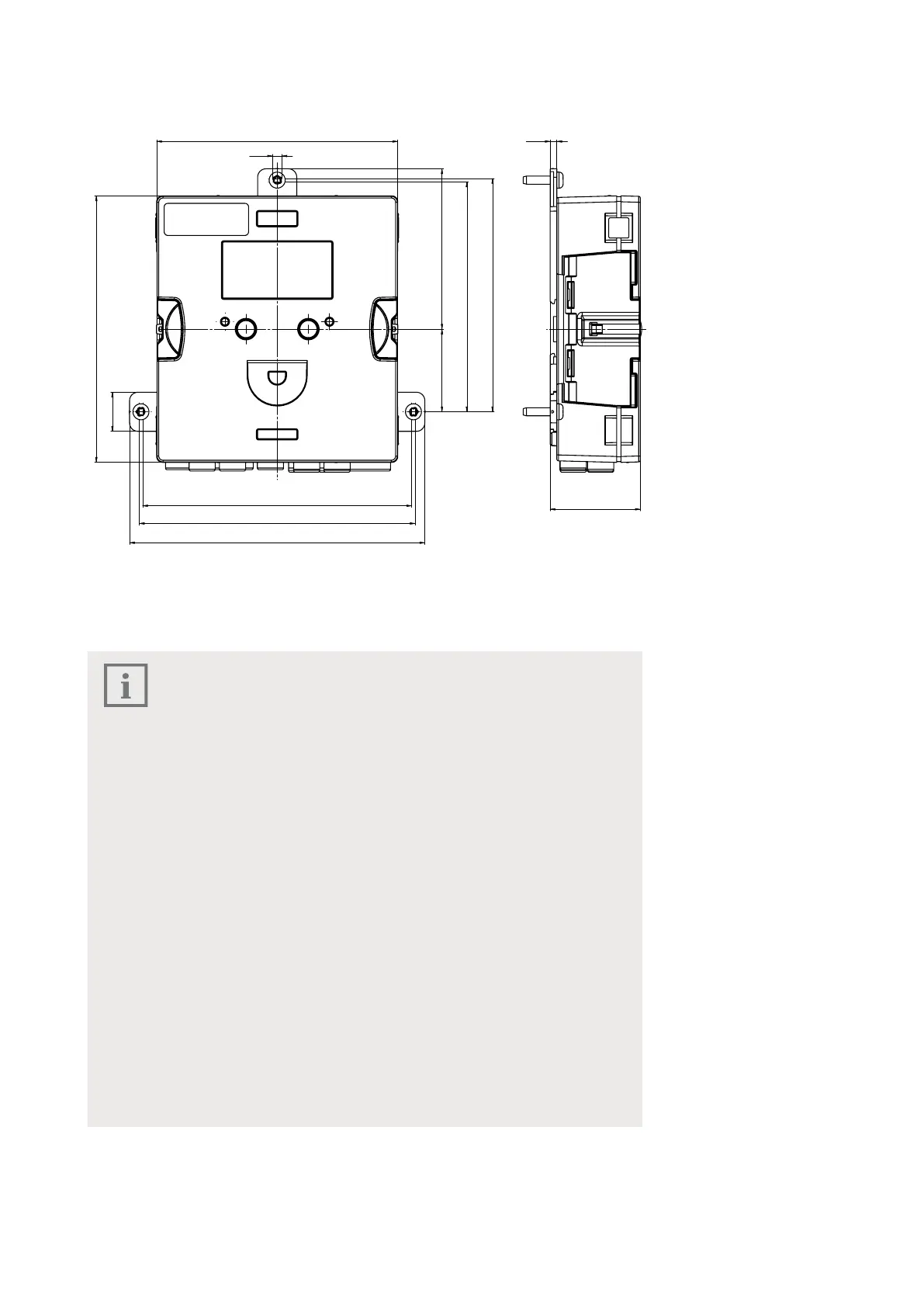

4.5 Dimensions
159.6
163.6
136.3
138.3
49
5.5
23.2
175.1
95.08
53.5
4.6 Mounting
4.6.1 Before Mounting
All cables must be laid at least 300 mm away from power and high-
frequency cables.
calculator must be avoided.
The calculator must generally be mounted away from the hot or cold
pipes.
Ensure no condensation can run into the calculator along the connected
lines.
If there is a risk of vibration in the piping system, the calculator should
be mounted separately on the wall.
mounted separately.
that there are no foreign bodies in the pipeline.
The lines must be vented during commissioning. Air in the system or in
Only use suitable new sealing material.
The tightness of the various connections must be checked.
Lightning protection cannot be guaranteed; this must be ensured via
the house installation.
