21Instruction for use | Supercal 5

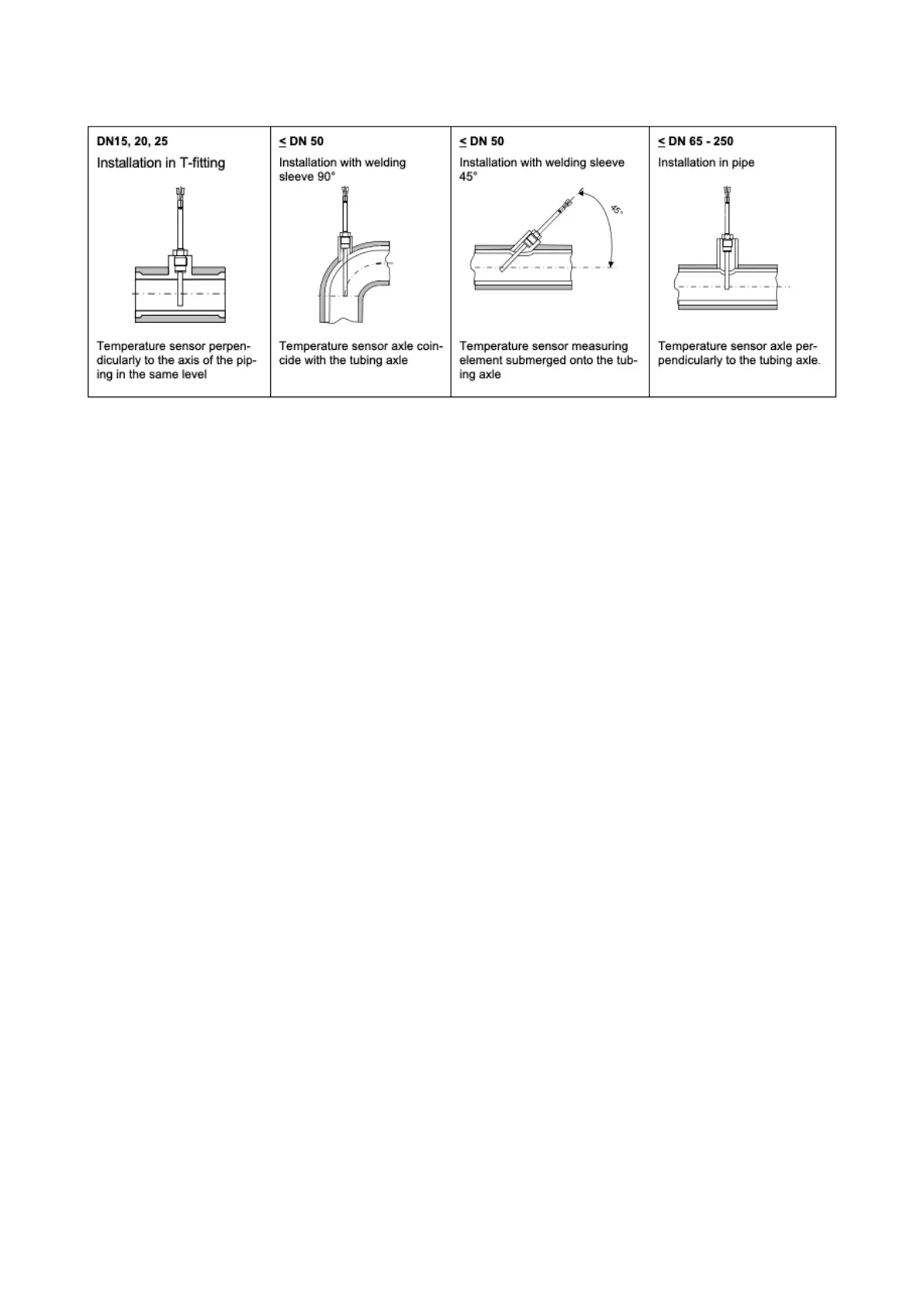

4.7.3 Installation Guidelines for Temperature Sensors According to EN1434
4.7.3.1 Compliance With the Operating Conditions According to MID
for the Temperature Sensors
-
erably directly. If temperature sensors are installed with pockets, both must be tested for
conformity. The tips of the temperature sensors should sit cleanly on the thermowell bot-
-
stalled symmetrically.
If the temperature sensors are permanently connected, the connecting cables must not be
shortened.
Interchangeable temperature sensors with conformity markings allow a maximum length of
EN 1434-2 applies to the cable cross-sections. Care must be also be taken to ensure that the
calculator is electrically compatible with the temperature sensors:
The calculator has been designed for Pt500 temperature sensors. Don't use other
sensors.
To prevent unauthorized access, the installation points must be sealed last.
4.8 Installation Check
For the installation of the heat meter and the associated temperature sensors, the general
After the shut-off valves have been opened, the installation must be checked for leaks. By
repeatedly pressing the orange operating button, various operating parameters can be read
The communication indicator on the LCD display can be used to check the communication
input or output. The Superprog software can also be used to simulate communication out-
All parameter displays are used to check the meter or to adjust the system. Check that the
meter. It is recommended that an installation protocol is made using the Android NFC tool or
the optical interface with the Superprog software for complete functional testing.
