2.1.4 PBA Unit & Frame Assembly

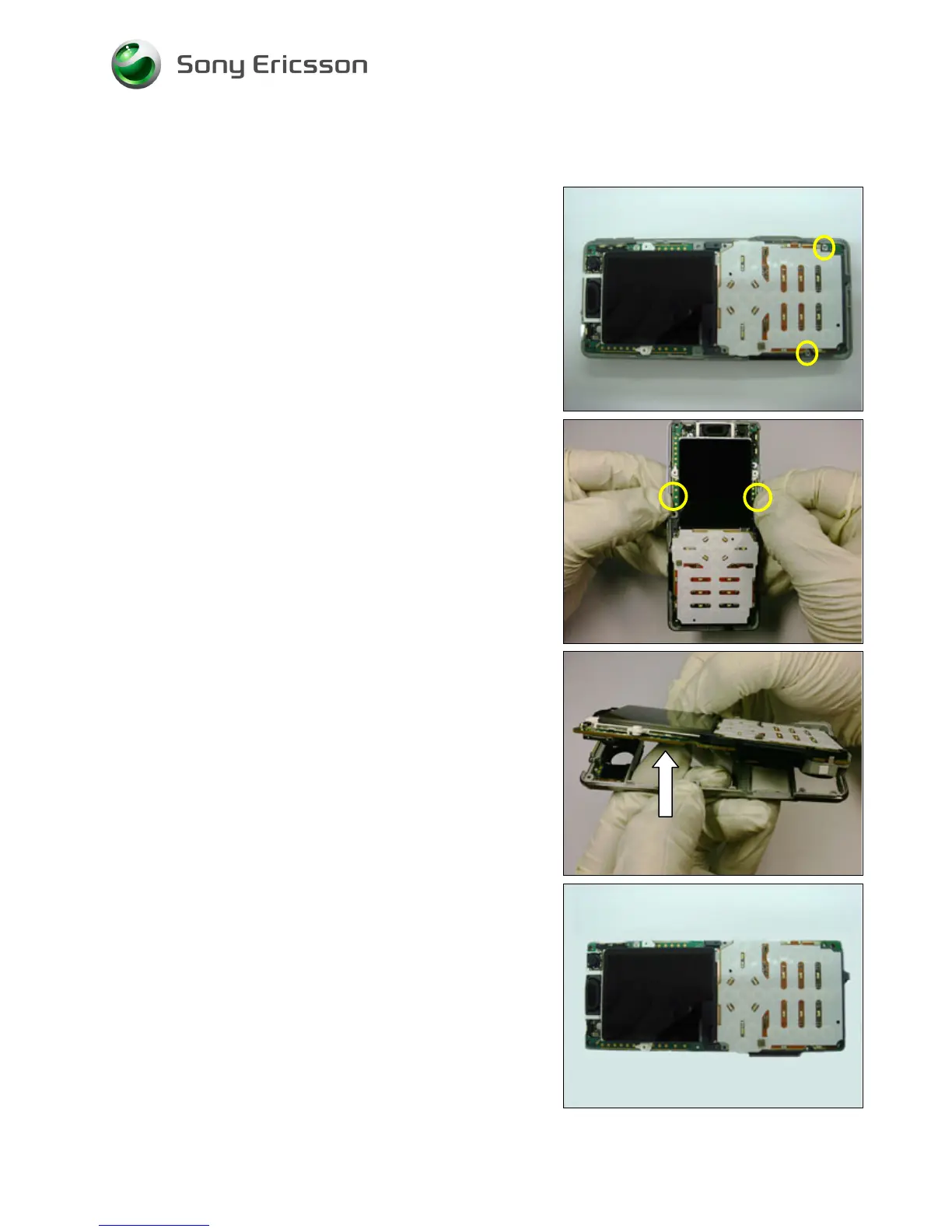

Use cross screwdriver to remove the two screws.
T HE FRAME HAS GOT TWO SNAP HOOKS !
Use the front opening tool or with your fingers to unsnap the
frame assembly from the PCBA.
Grab the frame assembly by one hand and carefully push
the PCBA unit up by the other hand as the picture.
PBA unit
