Sony Ericsson K770 - Camera Key Assembly Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
29(38)

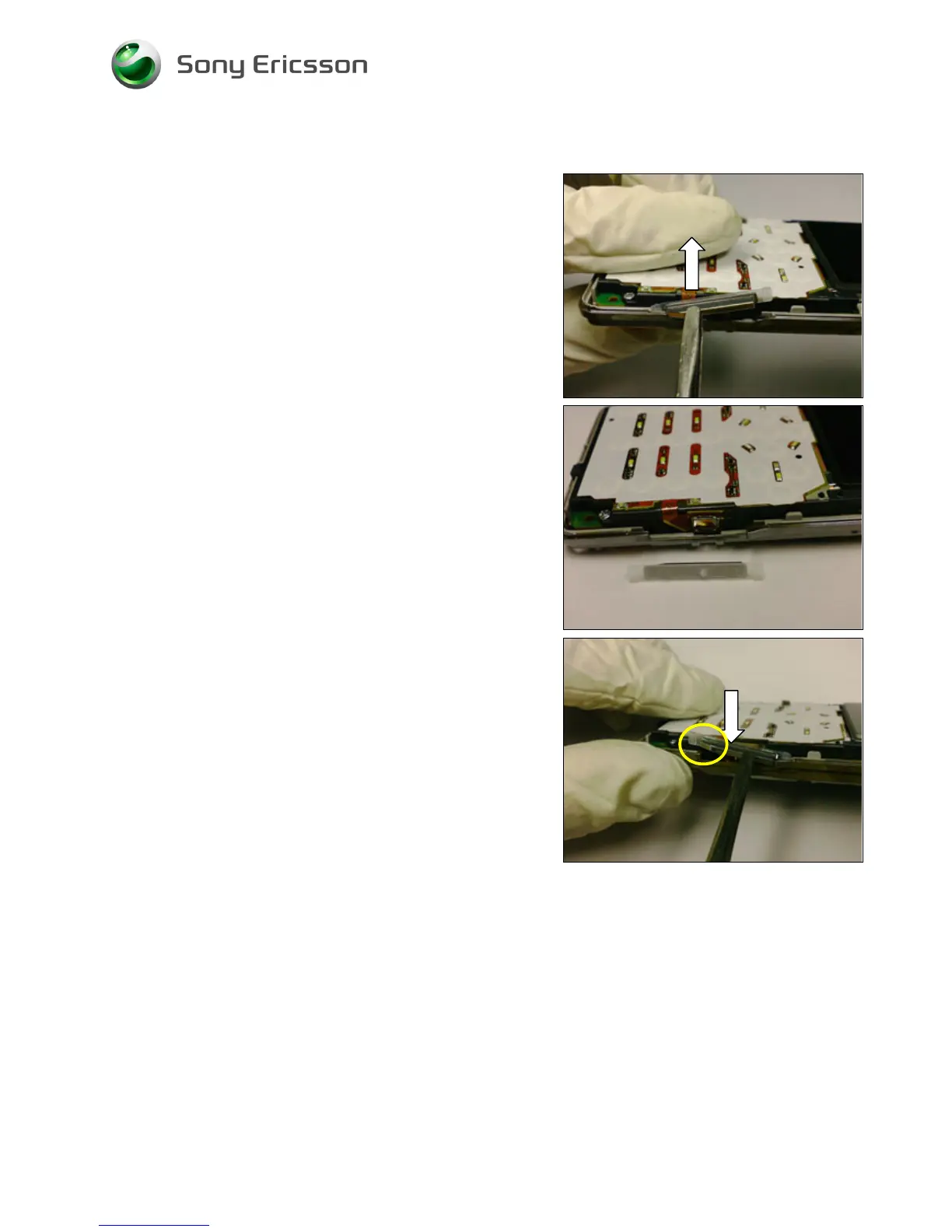

3.17 Camera Key Assembly
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Remove the camera key assembly.
The Camera key assembly
INSTALLATION
T HE FRAME HAS GOT TWO GUIDING PINS !
Attach the camera key assembly at both ends.
Note the right direction of the Camera Key assembly when
assembling.
