Sony Ericsson K770 - On;Off Key Assembly Replacement; Volume Key Assembly Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
30(38)

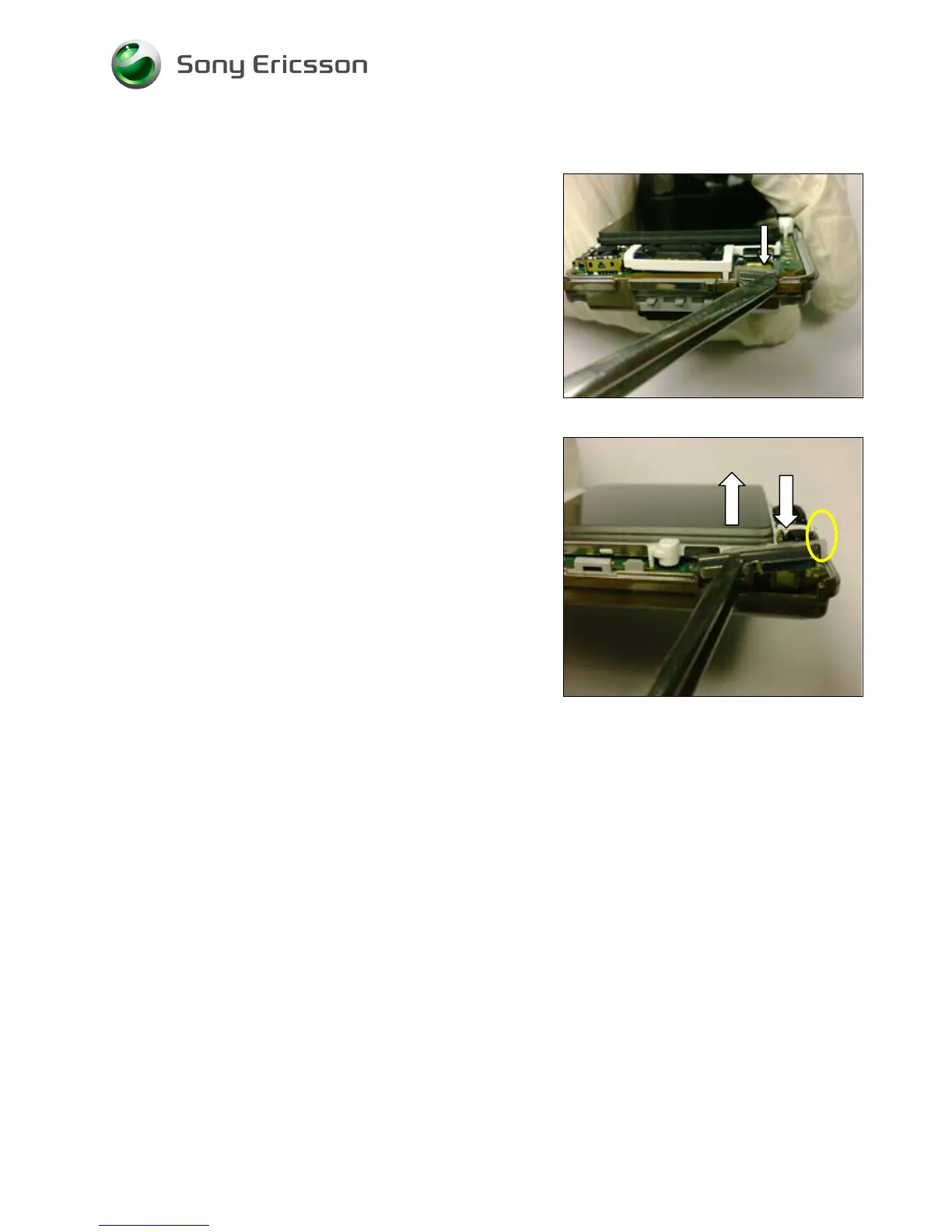

3.18 On/Off Key Assembly
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Use the tweezers to remove the power key assembly.
INSTALLATION
Use the tweezers to mount the power key assembly.
3.19 Volume Key Assembly
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Use the tweezers to remove the Volume key assembly from
the frame.
INSTALLATION
Use the tweezers to mount the Volume key assembly.
Note the right direction of the Camera Key assembly when
assembling.
