Sony Ericsson K770 - Keypad Assembly Navi Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
25(38)

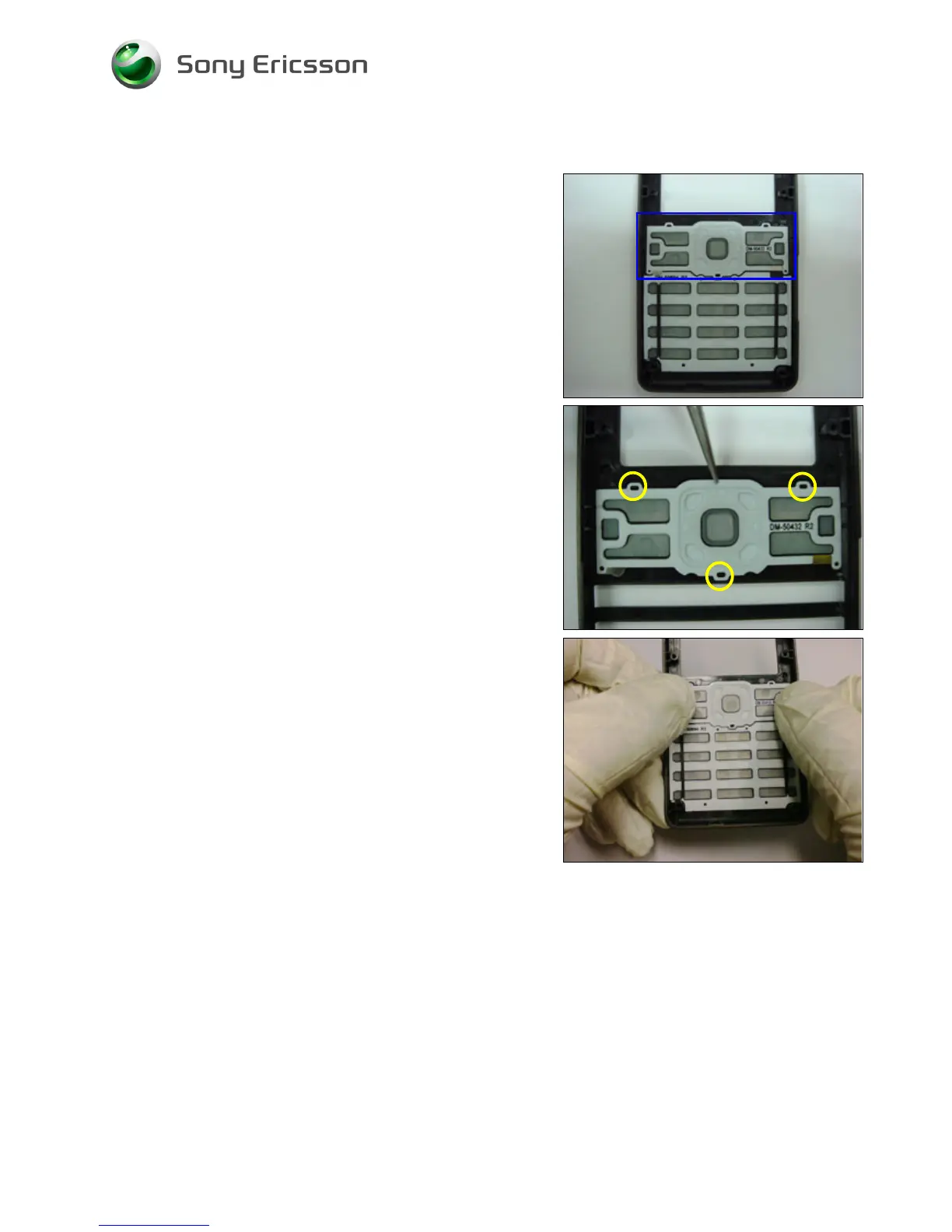

3.13 Keypad Assembly Navi
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Use tweezers to separate Keypad assembly Navi from the
front cover. .
INSTALLATION
Position the keypad assembly Navi into the front cover.
Carefully press to attach the keypad assembly Navi to the
front cover.
Follow the 4.1.4 – 4.1.5 Reassembly instructions!
