Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
©
Sony Ericsson Mobile Communications AB
32(38)
4 Reassembly
After replacing a part being listed in Replacements, the instruction of that section usually ends by
directing you to this Reassembly section with a specification of the instructions you have to carry out
in order to reassemble the phone.

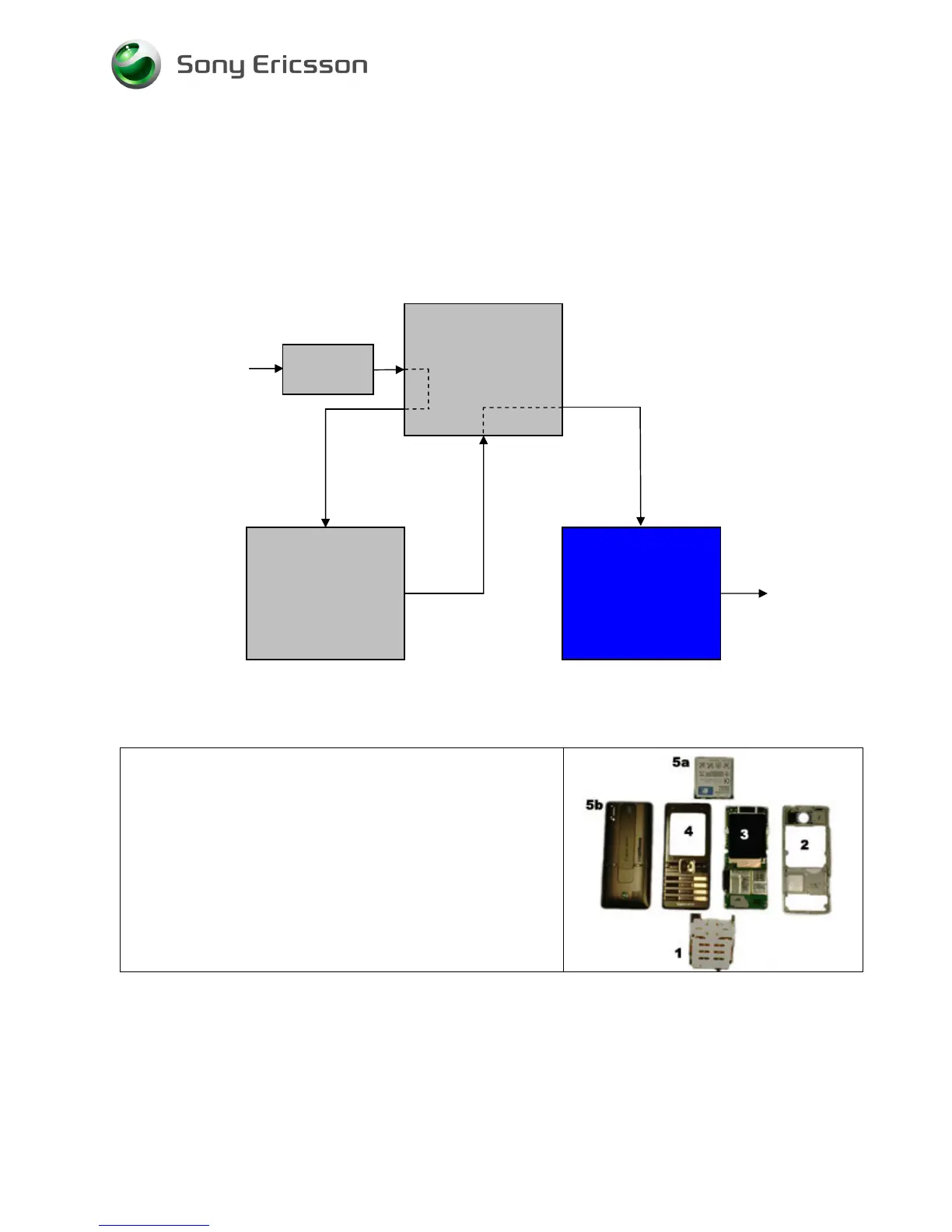

4.1 Overview
The reassembly is done in the following sequence:
1. Keypad support plate asm
2. Frame asm
3. PBA unit
4. Front Cover asm
5. Battery (a) and Battery Cover (b)
Start
Done
