Sony Ericsson K770 - Ear Speaker Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
16(38)
3.7 Ear Speaker
REMOVAL
Follow the 2.1.1 – 2.1.5 Disassembly instructions!
And Follow the 3.6 Disassembly instructions!

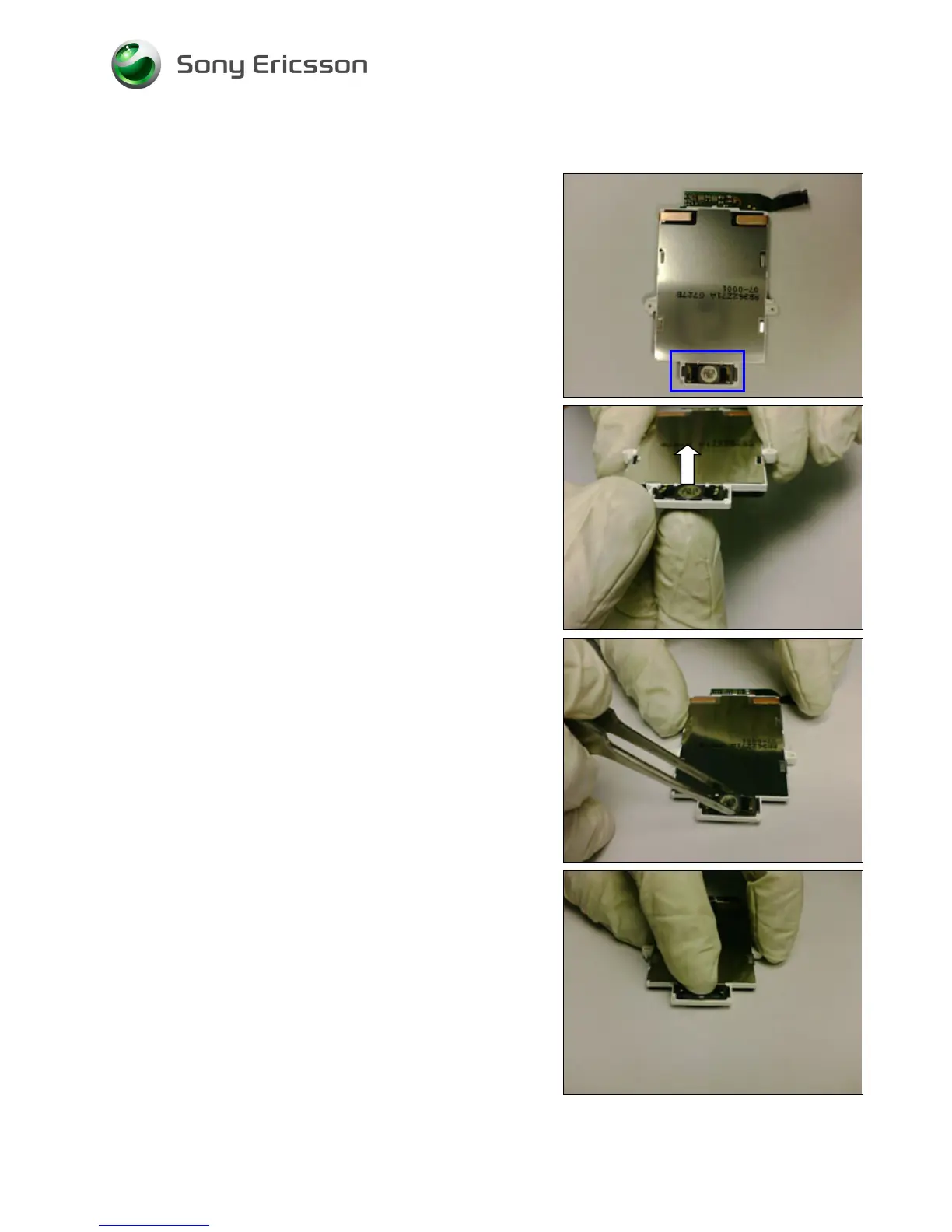

Push the ear speaker upward with finger as shown in the
picture.
INSTALLATION
Notice the pin direction before inserting the ear speaker to
the LCD module’ speaker hole.
Press the ear speaker evenly to be inserted into the
speaker hole properly
