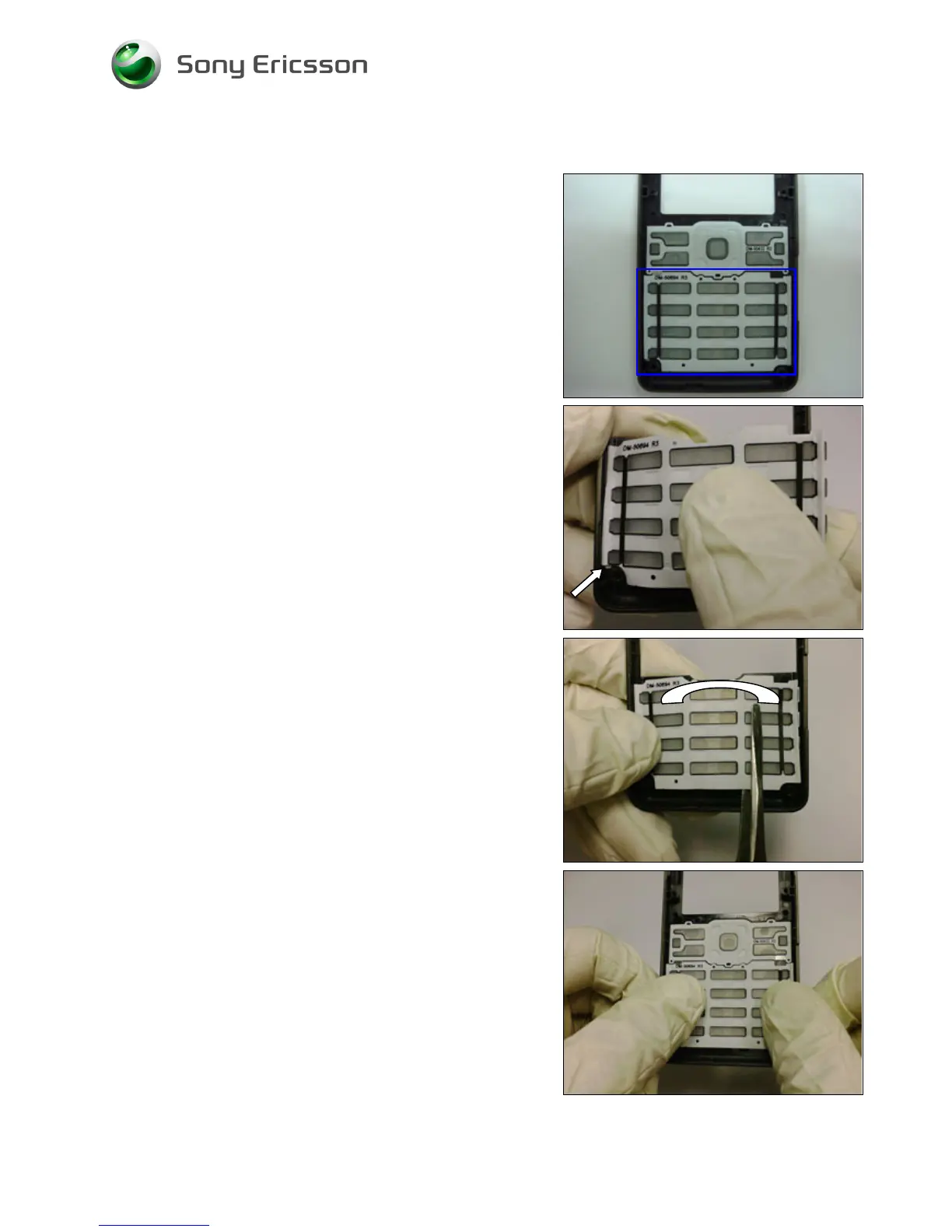

3.14 Keypad Assembly Numeric
REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Use tweezers to separate Keypad assembly Numeric from
the front cover.
INSTALLATION
Position the keypad assembly Numeric into the front cover.
Band the Keypad assembly Numeric and insert it to the
other side as shown in the picture.
Carefully press to attach the keypad assembly Numeric to
the front cover
