Sony Ericsson K770 - Camera Module and Camera Lens Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
20(38)
3.10 Camera Module & Camera lens
REMOVAL
Follow the 2.1.1 – 2.1.4 Disassembly instructions!
Use 3Mpixel camera removal tool to remove Camera
3Mpixel.

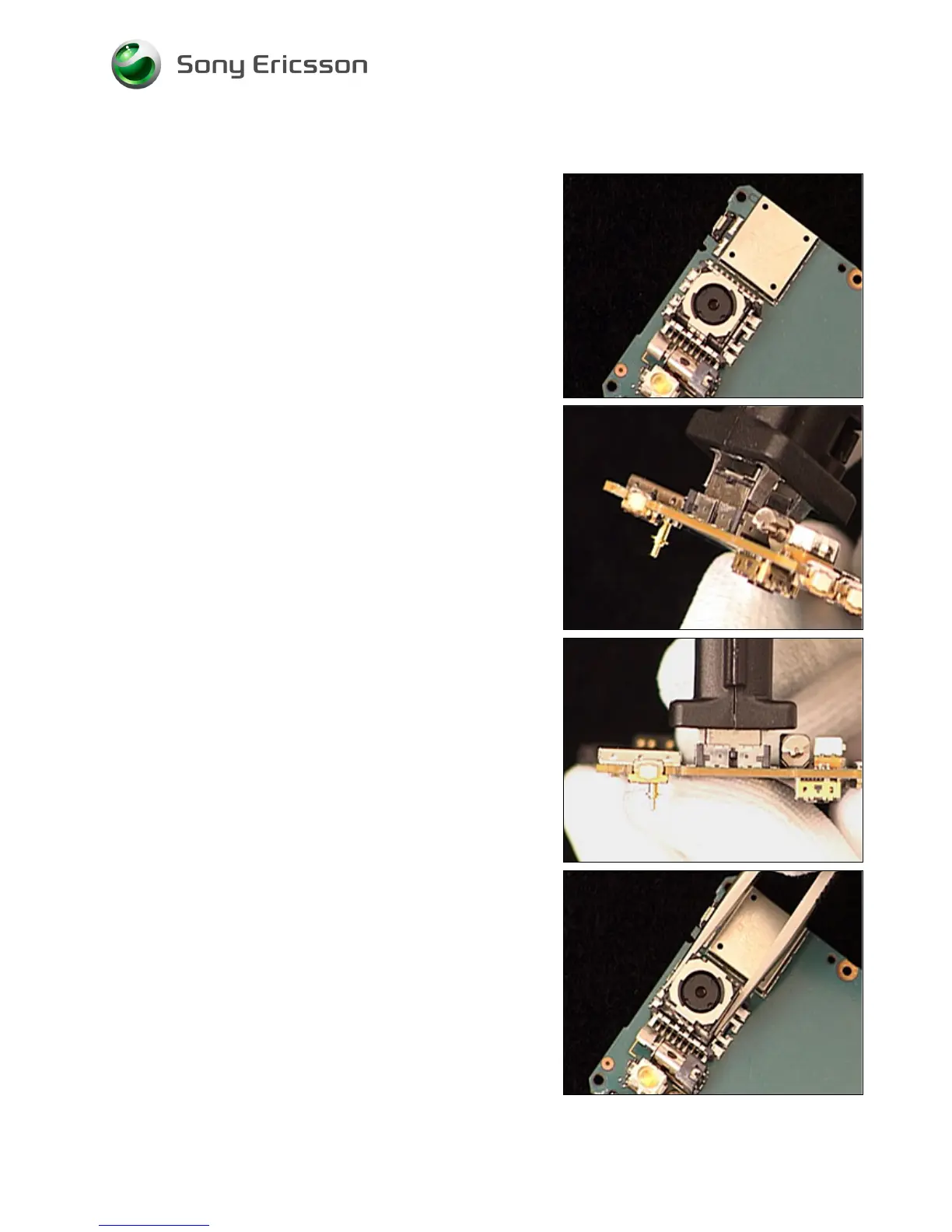

Position the 3Mpixel camera tool according to the picture.
Push the 3Mpixel camera tool to bottom and wiggle the tool
side to side before lifting the tool up.
Use tweezers to remove the 3Mpixel camera
