Sony Ericsson K770 - System Connector and Gasket Replacement

Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
© Sony Ericsson Mobile Communications AB
24(38)

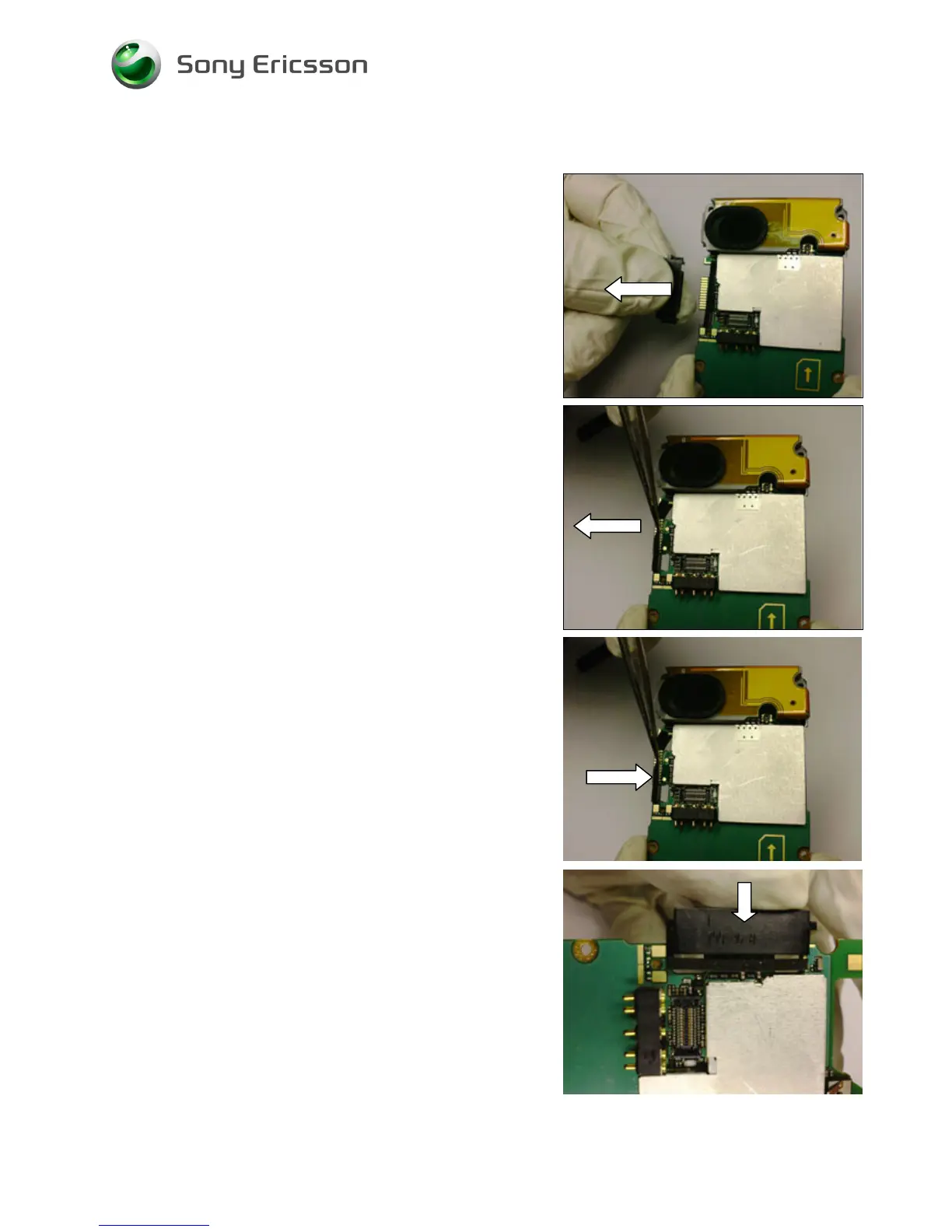

3.12 System Connector &System Connector gasket
REMOVAL
Follow the 2.1.1 – 2.1.5 Disassembly instructions!
Use your fingers to remove the System Connector.
Use the tweezers to remove the system connector gasket.
INSTALLATION
N
OTE THE ORIENTATION OF THE S YSTEM C ONNECTOR !
Use the tweezers to mount the system connector gasket.
Use your fingers to mount the System Connector.
