Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
©
Sony Ericsson Mobile Communications AB
11(38)

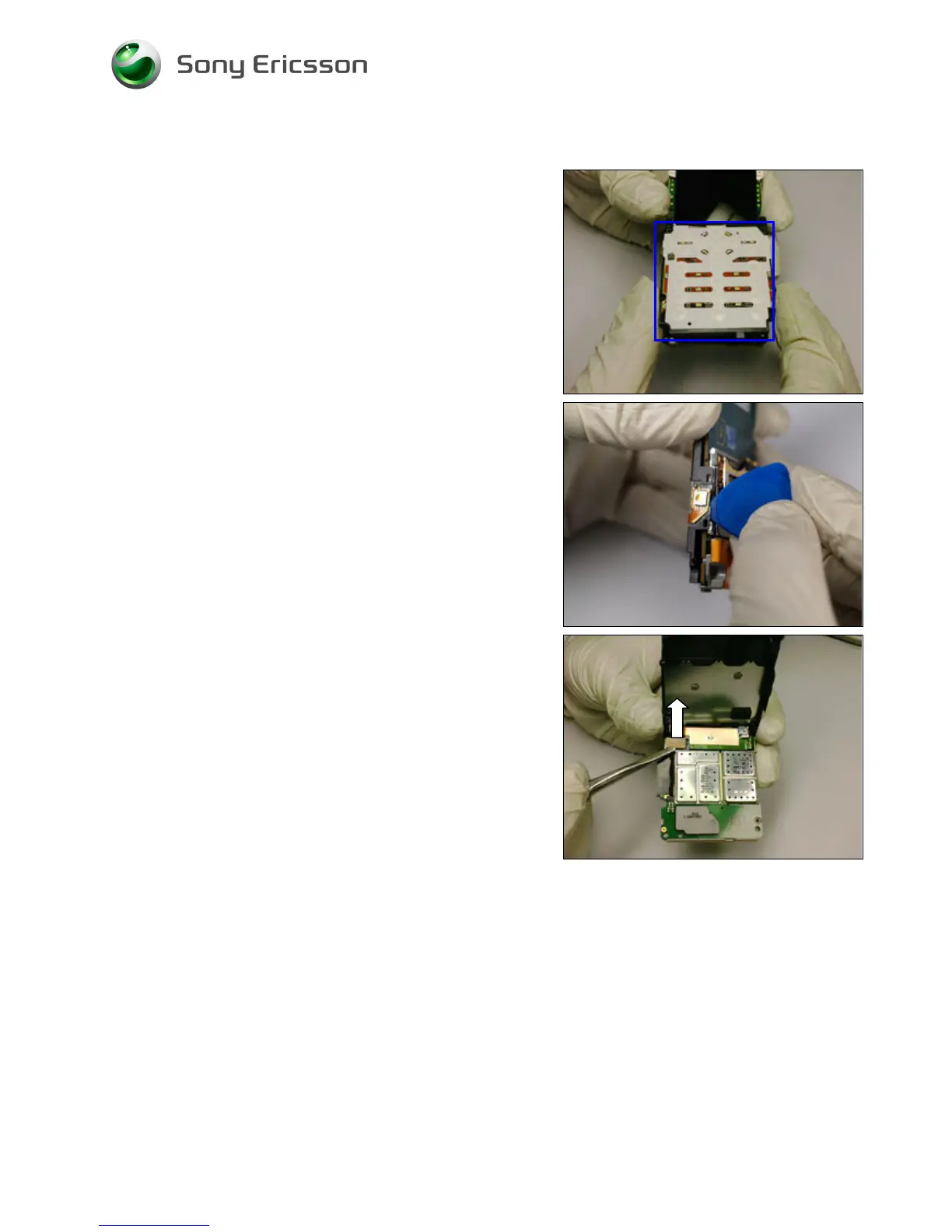

2.1.5 Keypad support plate Assembly
Separate the Key support plate from the PCBA unit.
Release the snap between Keypad support plate and M2
SIM assembly with Opening tool or Blunt pair of tweezers.
Carefully open the Key support plate connector with blunt
pair of tweezers and avoid damaging the FPCB.
