3.8 M2 & SIM Assembly
REMOVAL
Follow the 2.1.1 – 2.1.4 Disassembly instructions!

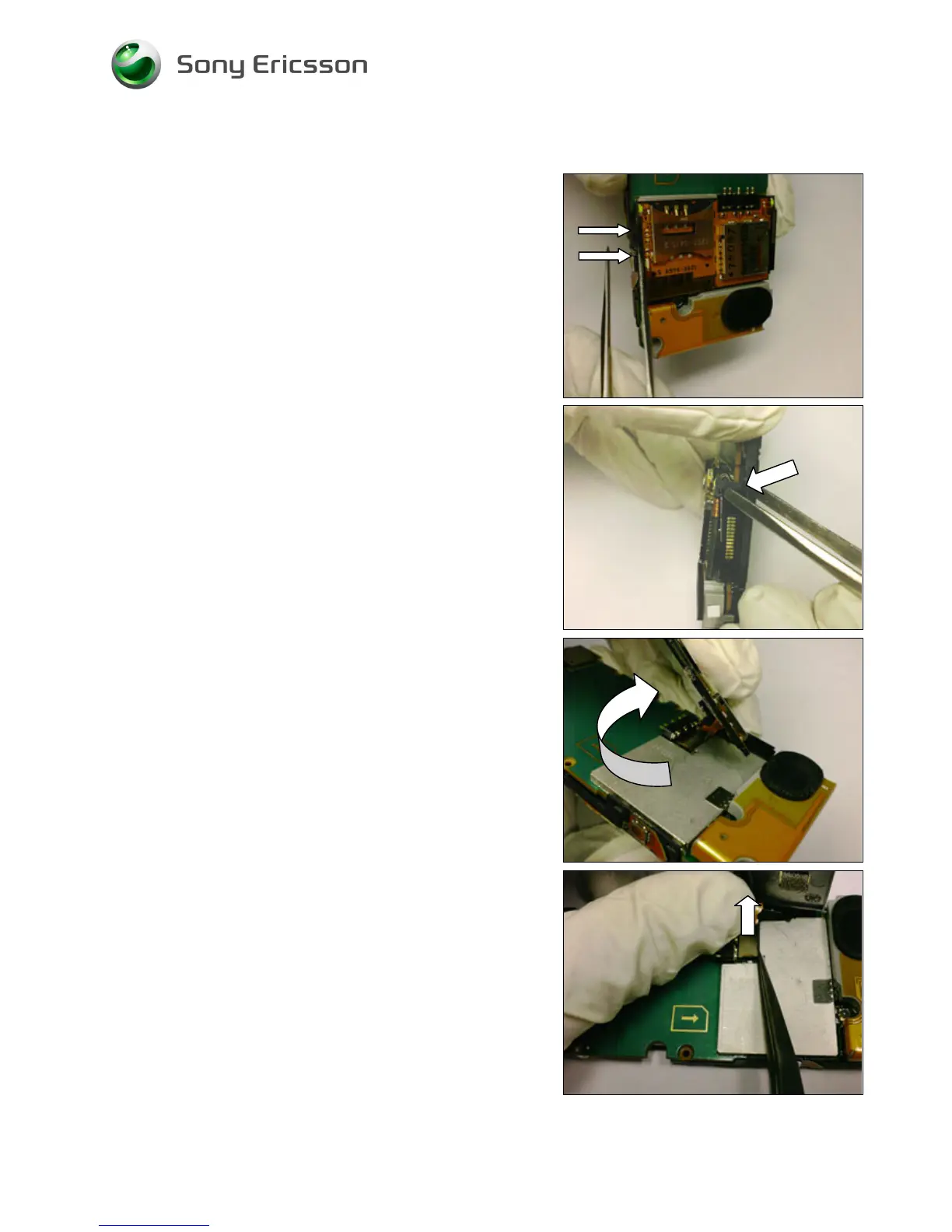

M2 SIM assembly is attached with snaps to the PCBA unit
and Keypad support plate respectively. Release the snaps
with blunt pair of tweezers.
Lift the M2 SIM assembly from PCBA unit carefully.
Open the M2 SIM assembly connector carefully. Take care
not to damage the FPCB.
