Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
©
Sony Ericsson Mobile Communications AB
18(38)
M2 & SIM Assembly continued
INSTALLATION

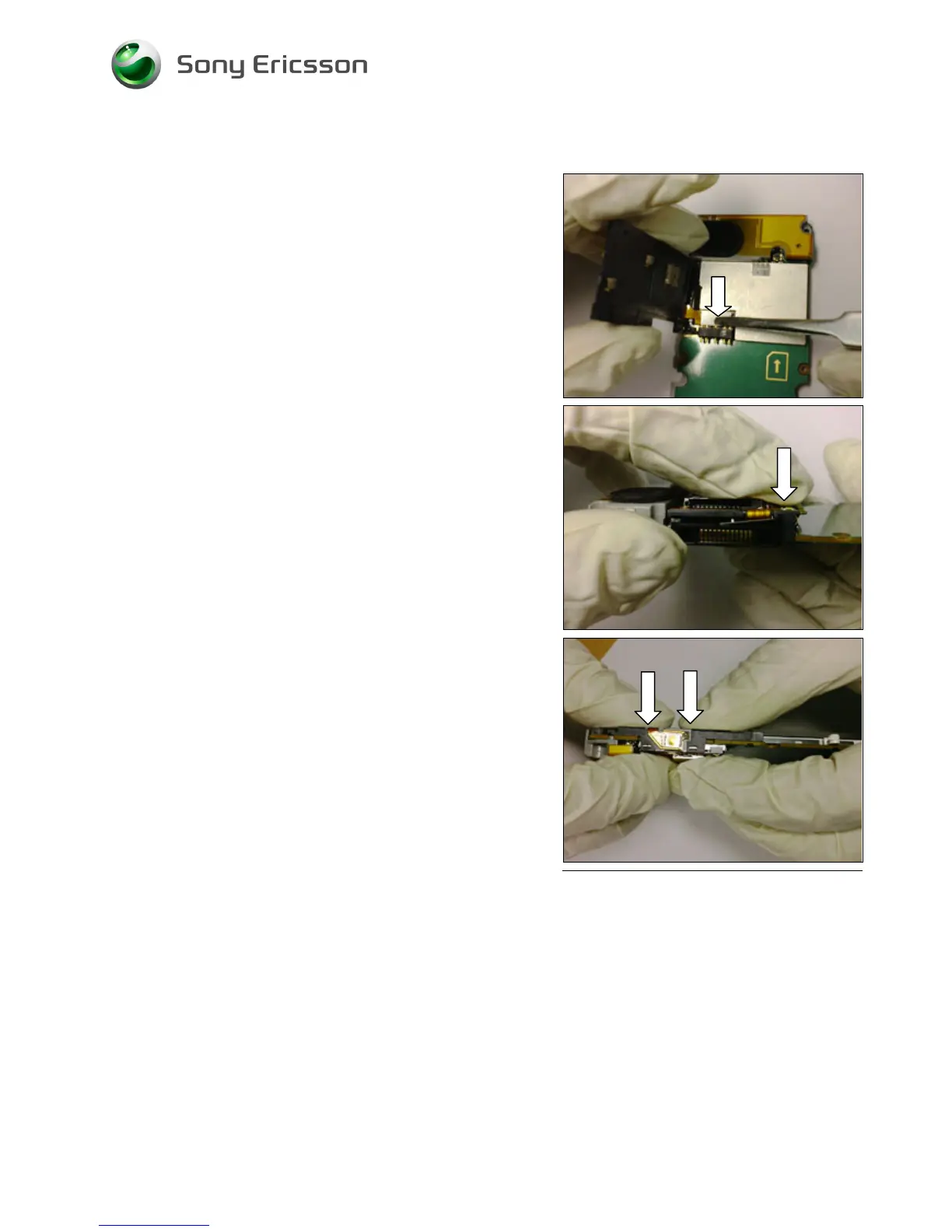

Use the blunt pair of tweezers to assemble the connector.
Press the M2 SIM assembly down onto the PCBA unit to
snap together.
Press the Keypad support plate down to make it snap to M2
SIM assembly.
