Camera Module & Camera lens continued

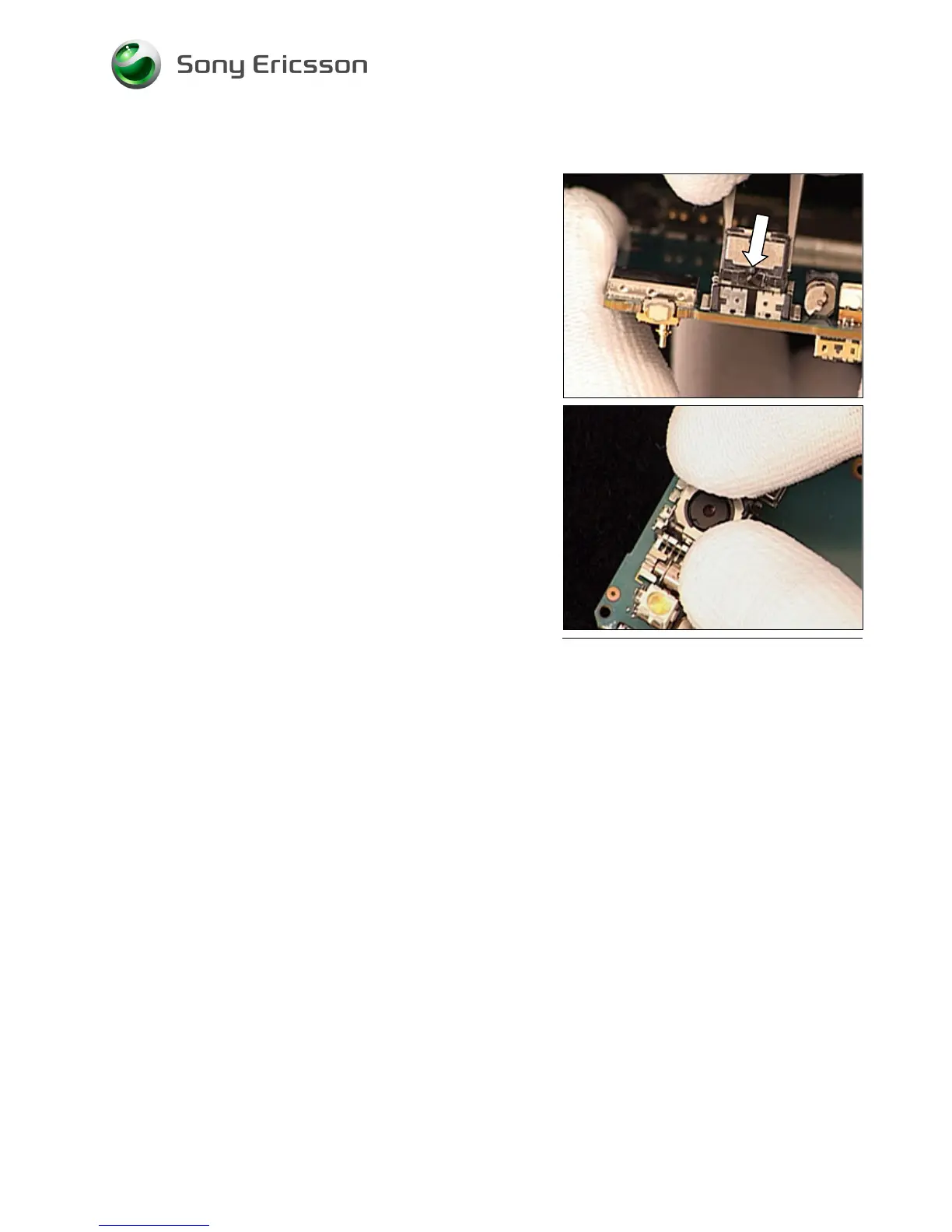

INSTALLATION
Notice the small slot in the socket and the small slot in the
Camera 3Mpixel.
Use tweezers to position the Camera 3Mpixel
Press gently on the top of the Camera 3Mpixel until it
snaps into place.
C
AUTION ! D O NOT TOCH THE LENS
Follow the 4.1.5 – 4.1.9 Reassembly instructions!
