Working Instruction, Mechanical
3/000 21-1/FEA 209 544/142 A
Company Internal
©
Sony Ericsson Mobile Communications AB
15(38)
LCD Module continued

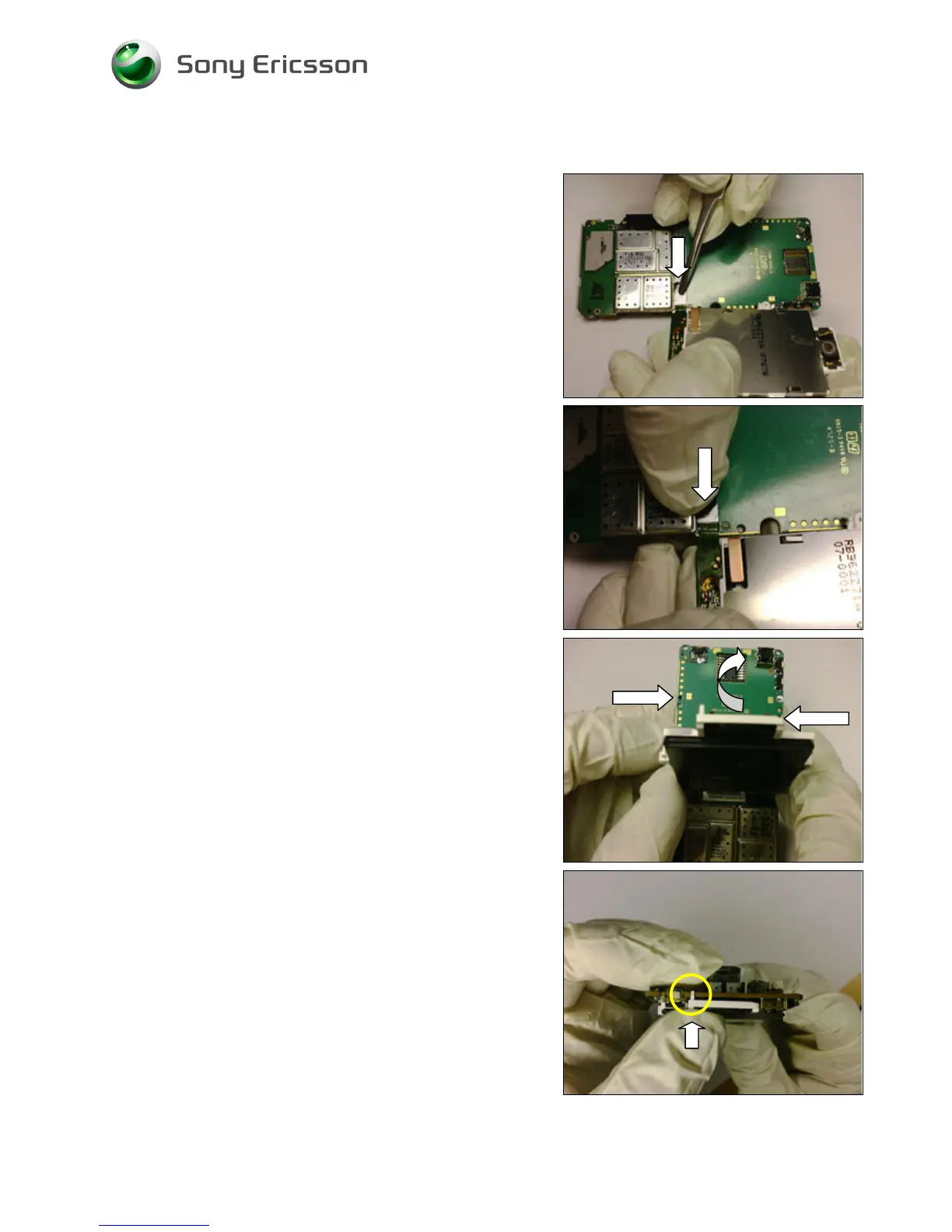

Use the flex film opening tool and carefully press the bar on
the connector towards the connector to close it.
Press the bar on the connector towards the connector by
finger evenly to connect completely.
T
HE LCD MODULE HAS GUIDING PINS
!
Use the guiding pins to position the LCD module on the
PCBA unit.
Lock the LCD module’s snap to PCBA unit.
