K850
1203-2528 rev. 1
TROUBLESHOOTING
TROUBLESHOOTING
Urquell Fault Trace SW with project file
Location: CSPN-Repair Instructions-Electrical-Trouble Shooting Application
Project File: K850Project_R1A
Drivers
SEPI BOX Drivers
Location: EMMA III-Drivers-SEPI

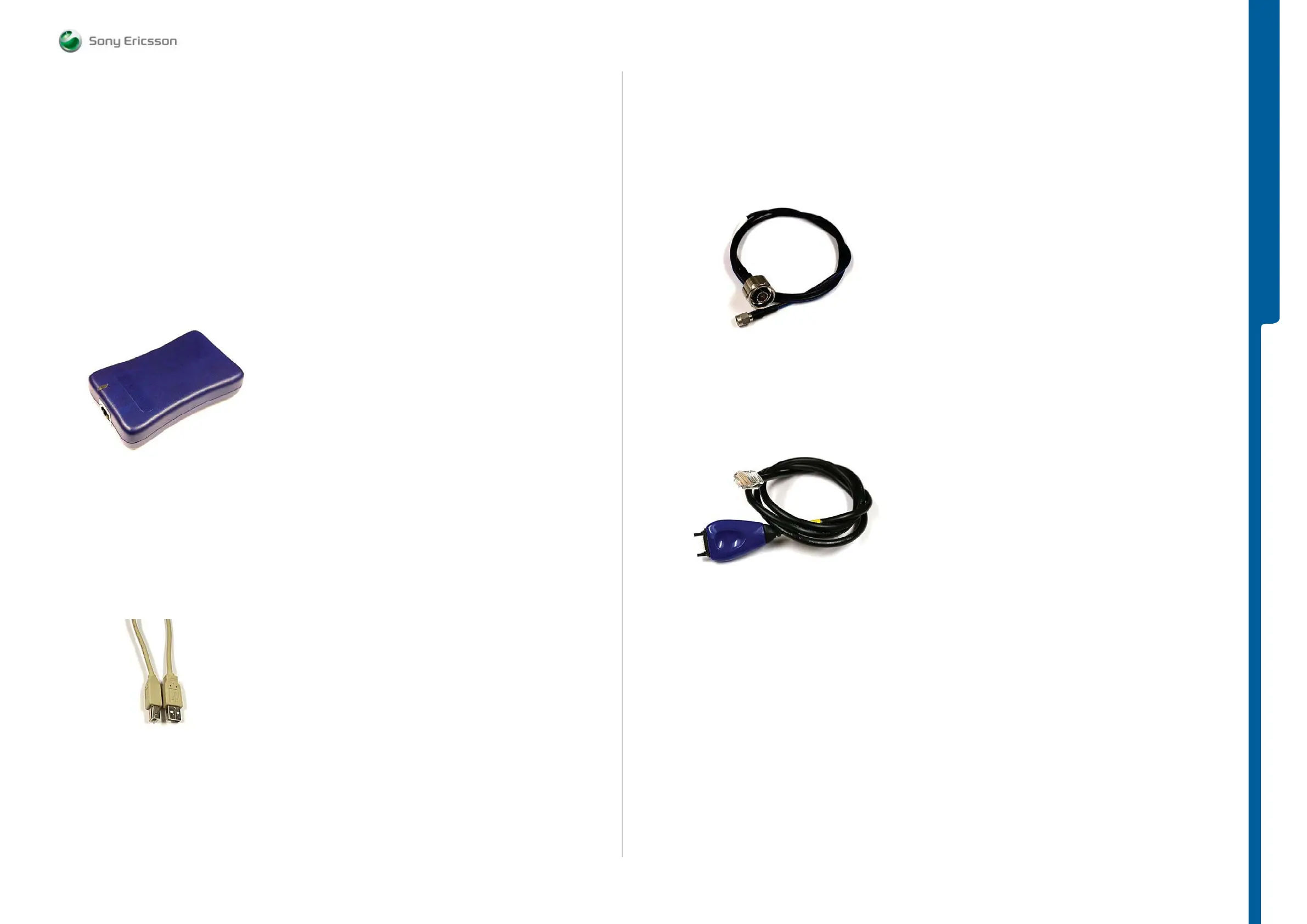

SE Communication Interface SEPI BOX
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Part number: LTN 214 1484
Se Picture 2.
Picture 2
Cables
USB Computer Cable
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Se Picture 3.
Picture 3
DSU-60/USB Cable
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Part number: KRY 101 1413
RF Test Cable Flexible
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Part number: RPM 119 885
Se Picture 4.
Picture 4
SEPI Interface Cable
– A1
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Part number: KRY 101 1119/1
Se Picture 5.
Picture 5
Power Cable RED to Power Supply Channel 1 VBATT
Maximum Length: 1m
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Power Cable BLACK to Power Supply Channel 1 VBATT
Maximum Length: 1m
Location: CSPN-Repair Instructions-Level: Mechanical-Tool Catalogue
Customized Power Supply Channel 2 DCIO/SEPI Cable
To perform Current Calibration the phone must be supplied directly through the system connector.
Customize the cable according to following instructions:
Equipment List
SEMC Troubleshooting Manual
4 (101)
