40

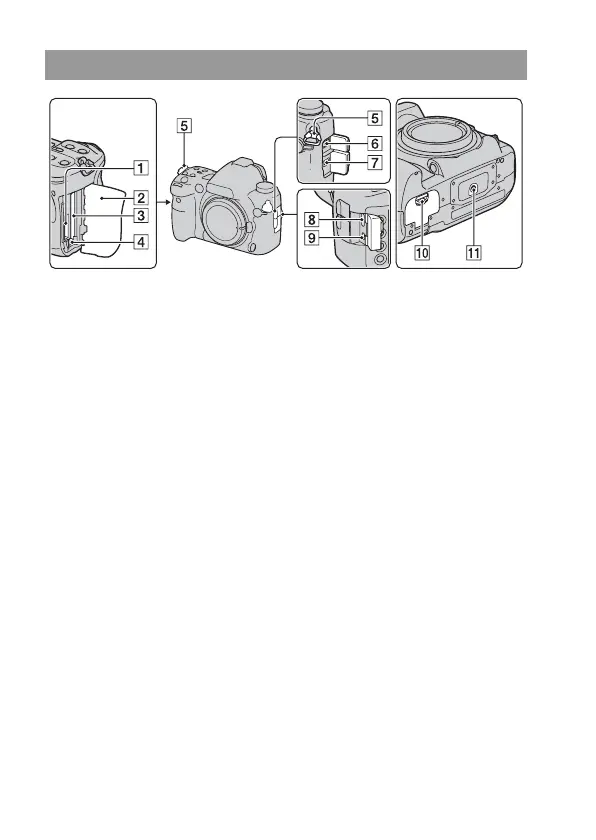

A “Memory Stick Duo” insertion
slot (23)
B Memory card cover (23)
C CF card insertion slot (23)
D CF card eject lever (24)
E Hooks for shoulder strap (29)
F REMOTE terminal
G DC IN terminal
• When connecting the AC-
VQ900AM AC Adaptor/
Charger (not supplied) to the
camera, turn the camera off,
then plug the connector of the
AC Adaptor/Charger to the DC
IN terminal on the camera.
H HDMI terminal (103, 155)
I VIDEO OUT/USB terminal
(101, 138)
J Battery cover (18)
K Tripod receptacle
• Use a tripod with a screw length
of less than 5.5 mm (7/32 inch).
You will be unable to firmly
secure the camera to tripods
having screws longer than 5.5
mm (7/32 inch), and may
damage the camera.
Sides/Bottom
