Sony BDP-BX2 - Switching Regulator; Circuit Boards Location

2-4E
BDP-BX2/S360

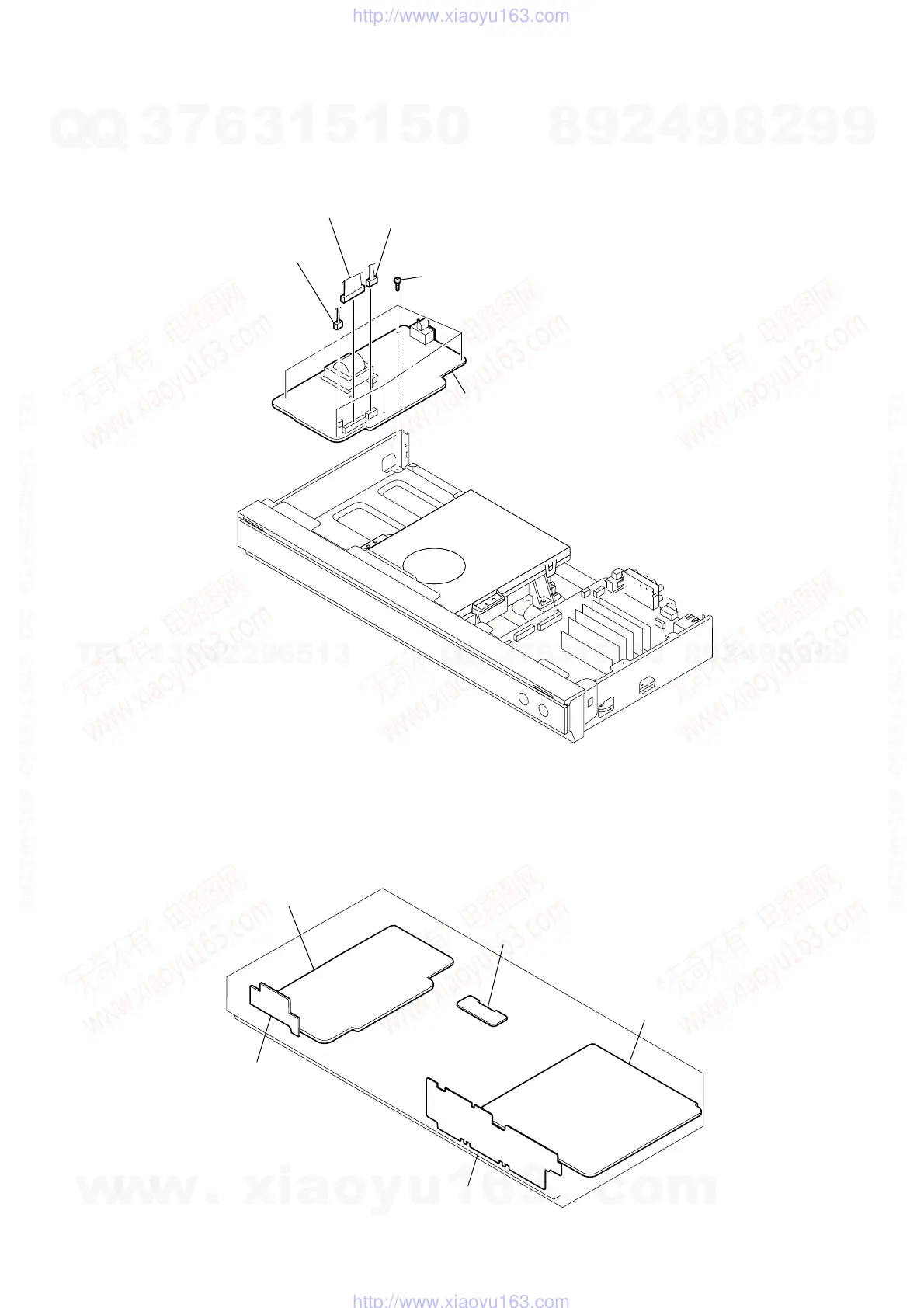

2-7. SWITCHING REGULATOR
2-8. CIRCUIT BOARDS LOCATION
4 five screws (BV3)
(tightening torque = 5.5 to 7.5 kgf•cm)
5 switching regulator
3 harness (PM-157)
(CN3)
2 harness (PM-156)
(CN2)
1 harness (PF-139)
(CN1)
FR-301 board
switching regulator
FL-193 board
MB-127 board
USB-014 board
