Sony BDP-BX2 - Waveforms

4-20E
BDP-BX2/S360

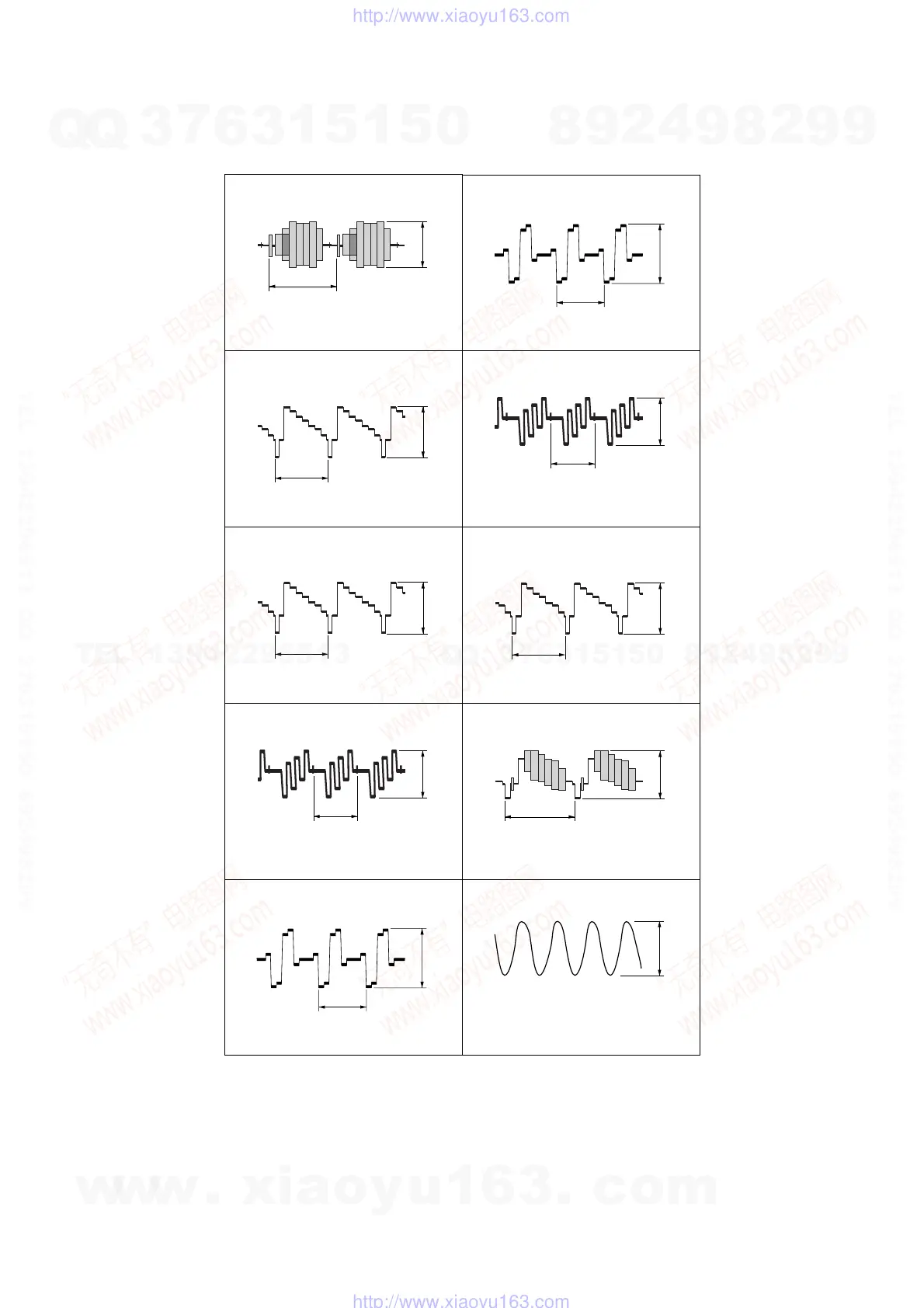

4-20. WAVEFORMS
2
IC808 8 (SYIN)
0.5 V/DIV, 20 µs/DIV
3
IC808 0 (YIN)
0.5 V/DIV, 20 µs/DIV
4
IC808 qs (PBIN)
0.5 V/DIV, 20 µs/DIV
9
IC808 wk (VOUT)
1.0 V/DIV, 20 µs/DIV
8
IC808 wd (YOUT)
1.0 V/DIV, 20 µs/DIV
6
IC808 ql (PROUT)
0.5 V/DIV, 20 µs/DIV
5
IC808 qf (PRIN)
0.5 V/DIV, 20 µs/DIV
0
IC1101 qf (REFCLK)
1.0 V/DIV, 10 ns/DIV
1
IC808 3 (SCIN)
0.5 V/DIV, 20 µs/DIV
7
IC808 wa (PBOUT)
0.5 V/DIV, 20 µs/DIV
H
0.8 Vp-p
H
1.0 Vp-p
H
1.0 Vp-p
H
0.7 Vp-p
H
0.7 Vp-p
H
1.4 Vp-p
H
1.4 Vp-p
H
2.0 Vp-p
H
2.4 Vp-p
50 MHz
4.0 Vp-p
MB-127 BOARD
