3-6E
BDP-BX2/S360

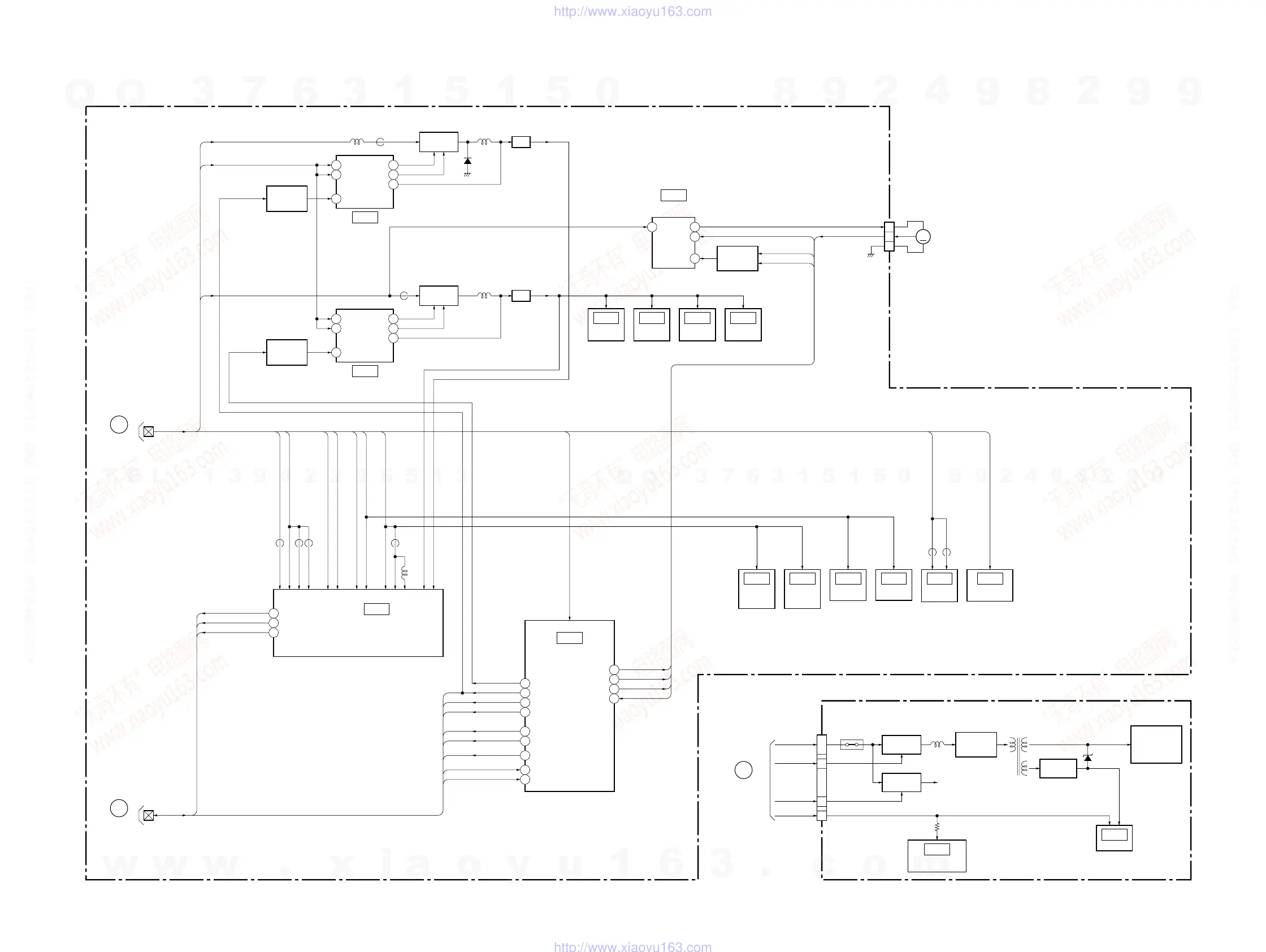

3-6. POWER BLOCK DIAGRAM (2/2)
FL DRIVER
D703-D706
RECT
Q706, Q707
DC/DC
CONVERTER
Q1408
FAN SPEED
CONTROL
IC702
REMOTE CONTROL
RECEIVER
IC701
ND701
FLUORESENT
INDICATOR
TUBE
MAIN SYSTEM CONTROL, DSP,
SATA I/F, MEMORY CONTROL,
A/V OUT, HDMI, ETHERNET I/F,
USB I/F
IC101
DAOUT1
VCCBLDCON
E3
SUB SYSTEM
CONTROL
IC1403
PFAIL
PFAIL
45
PB3/SW4
LDEN
E12
GPIO57
USB_VBUS_PCONT
F30
L701
PS701
CN701
FLD_PCONT
FR_6V
SW3.3V
MC-10121F1_SW3.3V
MC-10121F1_SW3.3V
DR_VCC15
DDR2_1.8V
+3.3V (AV)
+3.3V (HDMI)
UNSW3.3V
CORE_1.05V
DLL/HDVDD_1.05V
DR_VCC33
DR_VCC33
FB601
PLL_1.05V
FB401
FB201
FB101
ETHERNET
PHY
IC1101
DDR2_1.8V
DDR2
SDRAM
IC104
DDR2
SDRAM
IC105
16M
S-FLASH
IC1245
F1, F2
VEE
LED B+
R720
D707
T701
Q703, Q704
B+ SWITCH
Q708, Q709
B+ SWITCH
64M
SDRAM
IC1251
SW5VD
OPTICAL
TRANSMITTER
IC801
L601
DDR2
SDRAM
IC204
DDR2
SDRAM
IC205
4M NOR
FLASH
ROM
IC501
2G NAND
FLASH
ROM
IC502
KEY0
KEY0
49
ATA_PCONT2
ATA_PCONT2
32
FLD_PCONT
FLD_PCONT
53
ATA_PCONT1
ATA_PCONT
33
PCONT4
PCONT4
31
PCONT3
PCONT3
20
PCONT2
PCONT2
21
PCONT1
PCONT1
28
FAN_CONT0
FAN_CONT0
58
7
3, 4
LED_DIM
6
IT_3.3V
1
FR-301 BOARD
Q301, Q302
SWITCHING
Q307
REGULATOR
CONTROL
PCONT2
CORE_1.05V
DRVHV5DRV
MULTI
REGULATOR
IC309
13
DRVL
9
VOUT
3
10
EN_PSV
1
FAN_CONT0
FAN_CONT1
FAN_CONT2
FAN_DET
V5FILT
4
L304 L301
D301
VoutViv
FAN
CONTROL
IC1401
3
CONT
2
ADJ
4
1
CN1403
3
2
M1401
(FAN)
FB301
FB1101
FB1102
1
FL303, FL307, FL308
Q303, Q304
SWITCHING
Q308
REGULATOR
CONTROL
PCONT4
DDR2_1.8V
DRVHV5DRV
MULTI
REGULATOR
IC310
13
DRVL
9
VOUT
3
10
EN_PSV
1
V5FILT
4
L302
FB302
FL304, FL305
MM
UNSW6V
UNSW12V
DCSW5V
POWER-1
(SEE PAGE 3-5)
C
POWER
POWER-1
(SEE PAGE 3-5)
A
CONTROL
POWER-1
(SEE PAGE 3-5)
B
MB-127 BOARD (2/2)
FAN_CONT1
FAN_CONT1
57
FAN_CONT2
