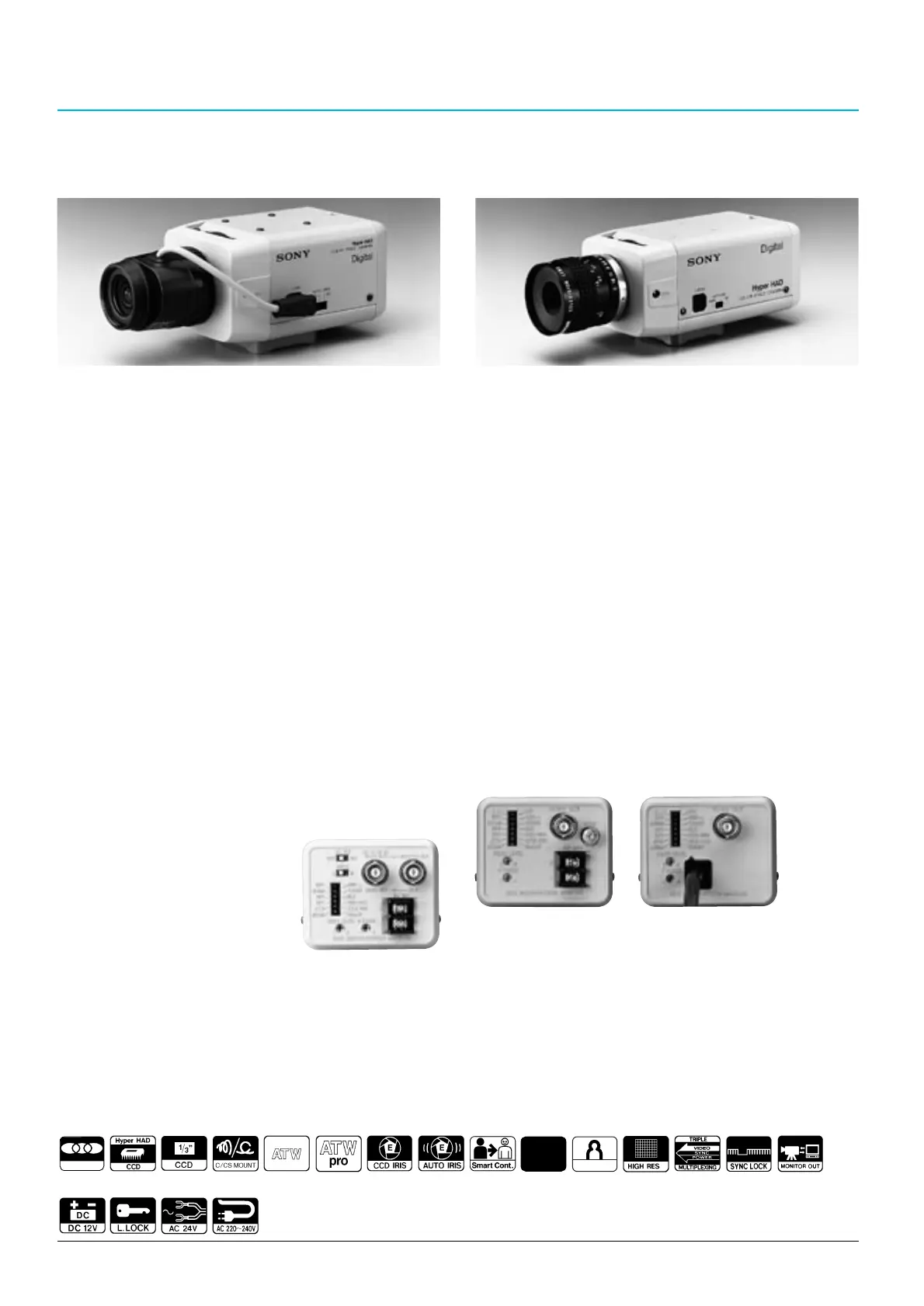

CCD Colour Video Camera
SSC-DC10P
SSC-DC10P
SSC-DC10P SSC-DC10P
SSC-DC10P
Supplied Accessories
Lens connector (1)
Lens mount cap (1)
Operation manual (1)
Optional Accessories
Camera adaptor YS-W150P, YS-W250P
Auto iris lens VCL-4V8WEA (3.5 to 8.0 mm, F1.4)
VCL-S02WEAP (2.8 mm, F1.3)
Aspherical auto iris lens
VCL-3ADXEA (3.8 mm, F0.8)
SSC-DC14P/DC18P Supplied Accessories
Lens connector (1)
Lens mount cap (1)
Operation manual (1)
SSC-DC14P/DC18P Optional Accessories
Auto iris lens VCL-4V8WEA (3.5 to 8.0 mm, F1.4)
VCL-S02WEAP (2.8 mm, F1.3)
Aspherical auto iris lens
VCL-3ADXEA (3.8 mm, F0.8)
SSC-DC14P SSC-DC18P
CCD Colour Video Camera
SSC-DC14P/DC18P
SSC-DC18PSSC-DC14P
Rear Panel
•Especially designed for surveillance applications
•
Digitally-controlled Smart Control function provides
intelligent and flexible automatic backlight compensation
•High density 1/3-inch IT Hyper HAD CCD offers a high
resolution of 470 TV lines and high sensitivity with a
minimum illumination of 1.7 lx at F1.2 (50 IRE)
•Excellent signal-to-noise ratio of 50 dB
•Extra gain with Turbo AGC function, providing 6 dB
more gain than conventional AGC
•Aperture/Sharp Mode makes object outlines sharper in
the reproduced picture
•Two alternative automatic white balance control modes:
ATW (Auto Tracing White Balance)/ATW pro
•New ATWpro mode ensures reliable white balance
control based on the absolute colour temperature of the
object (The effective operational colour range is 2500 K
to 6000 K)
•Accepts 2 types of auto iris lenses
(DC servo type/Video servo type)
•Accepts C/CS-mount lenses
•External synchronization with VS
•Single cable operation (video/sync/power triple
multiplex transmission) for easy installation with the
optional YS-W150P/W250P Camera Adaptor (Mode A)
•Monitor out function for on-the-spot camera positioning
(Mode A)
•12 V DC power supply can
also be used (Mode B)
Rear Panel
•Especially designed for surveillance applications
•
Digitally-controlled Smart Control function provides
intelligent and flexible automatic backlight compensation
•High density 1/3-inch IT Hyper HAD CCD offers a high
resolution of 470 TV lines and high sensitivity with a
minimum illumination of 1.9 lx at F1.2 (50 IRE)
•Excellent signal-to-noise ratio of 50 dB
•Extra gain with Turbo AGC function, providing 6 dB
more gain than conventional AGC
•Aperture/Sharp Mode makes object outlines sharper in
the reproduced picture
•Two alternative automatic white balance control modes:
ATW (Auto Tracing White Balance)/ATW pro
•
New ATWpro mode ensures reliable white balance control
based on the absolute colour temperature of the object
(The effective operational colour range is 2500 K to 6000 K)
•Accepts 2 types of auto iris lenses
(DC servo type/Video servo type)
•Accepts C/CS-mount lenses
•External synchronization with AC Line Lock
•
Selection of power source:
AC 24 V for SSC-DC14P
AC 220 to 240 V for SSC-DC18P
Lens shown is an option Lens shown is an option
SSC-DC14P/
DC18P
