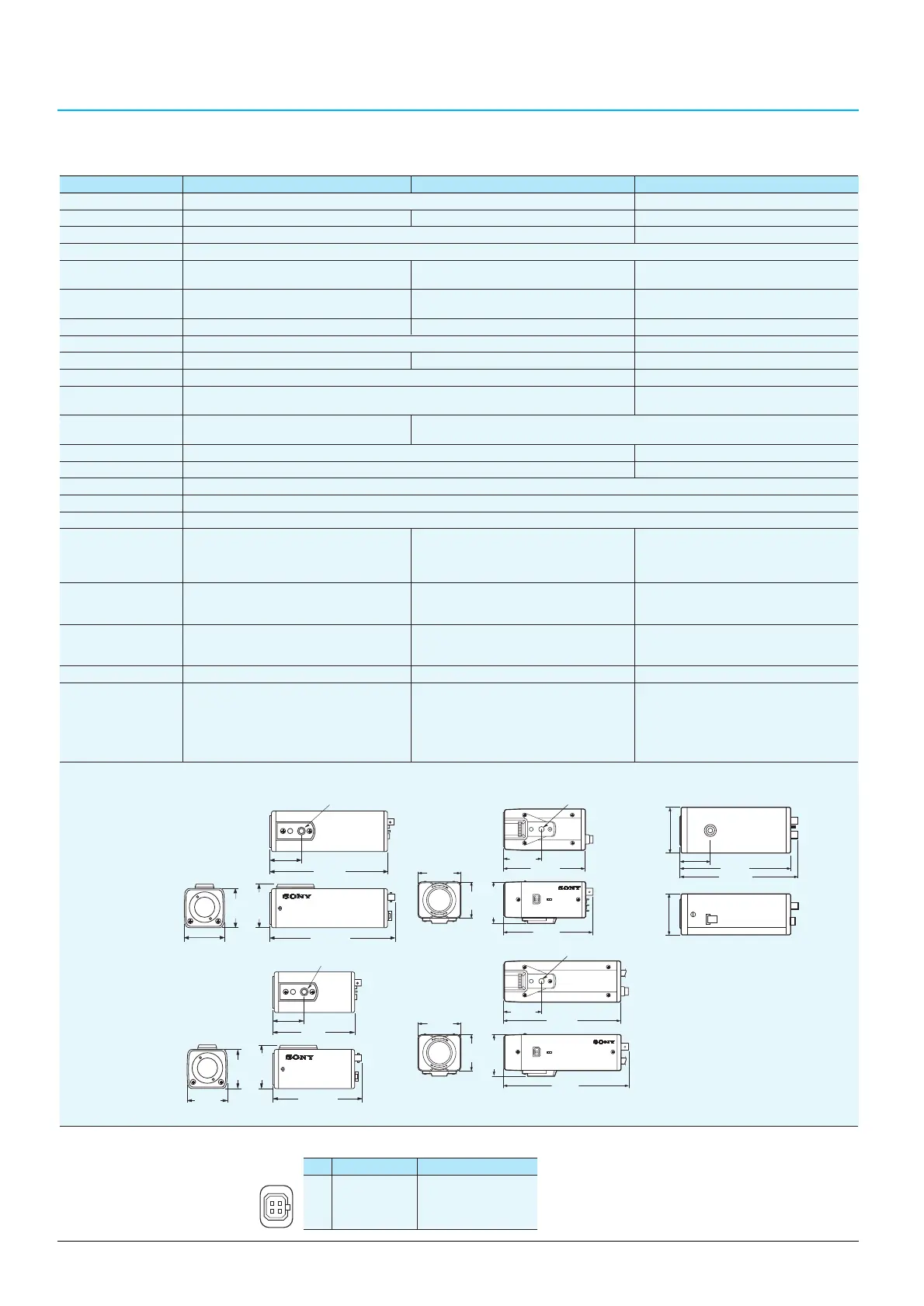

Sony CCTV Systems - B;W Camera Specifications

32
BLACK & WHITE VIDEO CAMERAS
SPT-M308CE/M304CE SPT-M122CE/M124CE/M128CE SSC-M370CE
Image device: 1/3-inch Interline Transfer Hyper HAD CCD 1/2-inch Interline Transfer Hyper HAD CCD
Picture elements: 752 (H) x 582 (V) 500 (H) x 582 (V) 752 (H) x 582 (V)
Sensing area: 4.4 x 3.3 mm 6.3 x 4.7 mm
Signal system: CCIR standard
Sync system: External with AC line lock M122CE: Internal Internal or external with VS/VBS*
M124CE/M128CE: AC line lock or MPX-VS
Phase control: V phase adjustment (±90°) M122CE: - H phase adjustment (6 positions)
M124CE/M128CE: V phase adjustment (+/-90°)
Horizontal resolution: 570 TV lines 380 TV lines 570 TV lines
Lens mount: C/CS mount adjustable C mount
Minimum illumination: AGC ON, 0.25 lx at F1.2 (50 IRE) AGC ON, 0.1 lx at F1.2 (50 IRE) AGC ON, 0.3 lx at F1.2 (50 IRE)
Automatic gain control (AGC): Always ON ON/OFF switchable
Electronic shutter: Not applicable 1/50, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10000 (seconds)
CCD IRIS control: ON/OFF switchable, ON/OFF switchable
1/50 to 1/50000 (seconds)
Backlight compensation: Variable - user adjustable —
Signal-to-noise ratio: 45 dB (AGC ON) 50 dB (AGC OFF)
Video out: BNC, 1.0 Vp-p, 75 Ω, sync negative
Operating temperature: -10 to 50°C (14 to 122°F)
Storage temperature: -40 to 60°C (-40 to 140°F)
Power requirements: SPT-M308CE: M122CE: DC 12 V, 50 Hz 1) Multiplexing with YS-W150P/W250P
AC 220 to 240 V, 50 Hz M124CE: AC 24 V, 50 Hz 2) DC 12 V from DC 12 V power supply
SPT-M304CE: M128CE: AC 220 to 240 V
AC 24 V, 50 Hz
Power consumption: SPT-M308CE: 6.0 W M122CE: 2.4 W (0.2A) 1) 4.0 W supplied from YS-W150P/W250P
SPT-M304CE: 4.5 W M124CE: 2.5 W 2) 2.8 W at DC 12 V
M128CE: 3.5 W
Mass: SPT-M308CE: 700 g (1 lb 8 oz) M122CE: 320 g (11 oz) 660 g (1 lb 7 oz)
SPT-M304CE: 350 g (12 oz) M124CE: 320 g (11 oz)
M128CE: 750 g (1 lb 10 oz)
Auto iris type: DC servo type DC/Video servo type Video servo type
Connectors: SPT-M308CE:
VIDEO OUT (BNC), LENS (4-pin) M122CE: DC 12 V terminals, DC 12 V terminals, LENS (4-pin)
SPT-M304CE: VIDEO OUT (BNC), VIDEO OUT (BNC), LENS (4-pin) Mode A (Triple multiplexing operation):
AC 24 V terminals, M124CE: AC 24 V terminals, GND DC IN/VS IN/VIDEO OUT (BNC),
GND,LENS (4-pin) VIDEO OUT (BNC), LENS (4-pin) MONITOR OUT (BNC)
M128CE: VIDEO OUT (BNC), LENS (4-pin) Mode B (DC 12 V operation):
VIDEO OUT (BNC), VS IN (BNC)
Dimensions:
Unit: mm (inches)
* The Burst signal is not locked
B/W Camera Specifications
31
42
Pin DC servo VIDEO servo
1 Control (-) Power (DC 9 V, 50 mA)
2 Control (+) Not connected
3 Drive (+) Video
4 Drive (-) (GND) (GND)
Lens (4-pin) Specifications
50 (2)
53 (2
1
/8)
56 (2
1
/4)
179.5 (7
1
/8)
170 (6
3
/4)
39.4 (1
9
/16)
1
/4-inch–20
UNC
125.2 (5)
1
/4-inch–20 UNC
125.2 (5)
1
/4-inch–20 UNC
57 (2
1
/4)
57.5 (2
3
/8)
50 (2)
57 (2
1
/4)
54 (2
1
/4)
54 (2
1
/4)
175.2 (7)
50 (2)
57.5(2
3
/8)
165 (6
1
/2)
115 (4
5
/8)
40.5 (1
5
/8)
64 (2
5
/8)
57 (2
1
/4
)
155 (6
1
/8)
164.9 (6
1
/2)
SPT-M308CE SPT-M122CE /M124CE SSC-M370CE
50 (2)
53 (2
1
/8)
56 (2
1
/4)
134.5 (5
3
/8)
125 (5)
39.4 (1
9
/16)
1
/4-inch–20 UNC
SPT-M304CE SPT-M128CE
