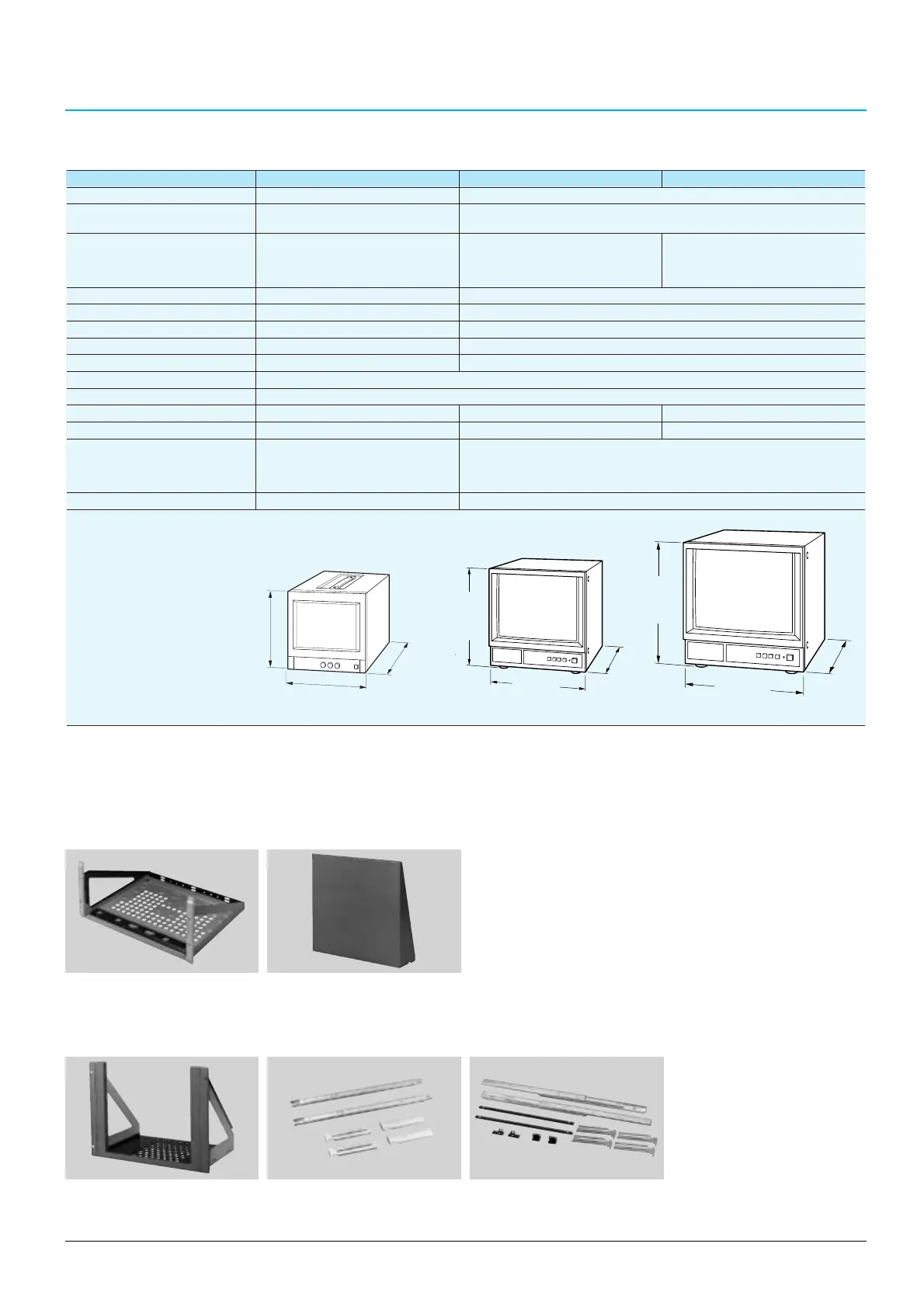

COLOUR VIDEO MONITORS
Specifications
SSM-9040P SSM-14N5E/14N5A SSM-20N5E/20N5A
Video signal system: CCIR 625 lines, 50 fields CCIR 625 lines, 50 fields/EIA 525 lines, 60 fields
Colour system: PAL PAL/NTSC/SECAM/NTSC
4.43
(automatically selected)
Picture tube: 22 cm (9-inch) Trinitron tube, 37.1 cm (14-inch) Trinitron tube, 52.2 cm (20-inch) Trinitron tube,
visible picture size 19.7 cm (8-inch) visible picture size 33.2 cm (13-inch) visible picture size 48.1 cm (19-inch)
measured diagonally, 70 degree measured diagonally, 90 degree measured diagonally, 90 degree
deflection, AG pitch 0.5 mm deflection, AG pitch 0.25 mm deflection, AG pitch 0.4 mm
Horizontal resolution: 250 TV lines at centre 500 TV lines at centre
Frequency response: 6.0 MHz ( ) 6.0 MHz (±3.0 dB)
Normal scan: 6% overscan 7% overscan
H linearity: Less than 5% Less than 8%
V linearity: Less than 5% Less than 7%
Colour temperature: D65
Power requirements: AC 100 V to 240 V, 50/60 Hz
Power consumption: 39 W 80 W 100 W
Mass: 7.8 kg (17 lb 3 oz) 15 kg (33 lb 1 oz) 28 kg (61 lb 11 oz)
VIDEO: LINE*
1
Loop-through BNC 1.0 Vp-p, Loop-through BNC 1.0 Vp-p, sync negative, automatic 75 Ω termination*
2
sync negative, automatic 75 Ω Loop-through 4-pin mini DIN
termination*
2
Y: 1.0 Vp-p, sync negative, automatic 75 Ω termination*
2
C: 0.3 Vp-p (PAL) or 0.286 Vp-p (NTSC), automatic 75 Ω termination*
2
AUDIO: LINE — Loop-through Phono -5 dBu, high impedance
Dimensions:
Unit: mm (inches)
+1.5 dB
-3.0 dB
0 dBu=0.775 Vrms
*
1
The Y/C input has priority over the Composite video input.
*
2
75 Ω termination is automatically set to OFF when connection is made to the OUT connector.
SSM-9040P Optional Accessories
SSM-14N5E/14N5A Optional Accessories SSM-20N5E/20N5A Optional Accessory
Rack mounting bracket
MB-507
Blank panel
MB-509
Rack mounting bracket
MB-502B
Slide rail kit
SLR-102
Slide rail kit
SLR-103A
