AUTOMOTIVE CAMERA AND MONITORS
Supplied Accessories
Camera bracket (1)
Rubber cap (1)
Adhesive (1)
Self-fusing tapes (2)
3 mm Allen key (1)
4 mm washers (4)
Angle adjusting screws (4)
5 mm hexagon head bolts (5)
5 mm washers (5)
Rubber nuts (5)
Operation manual (1)

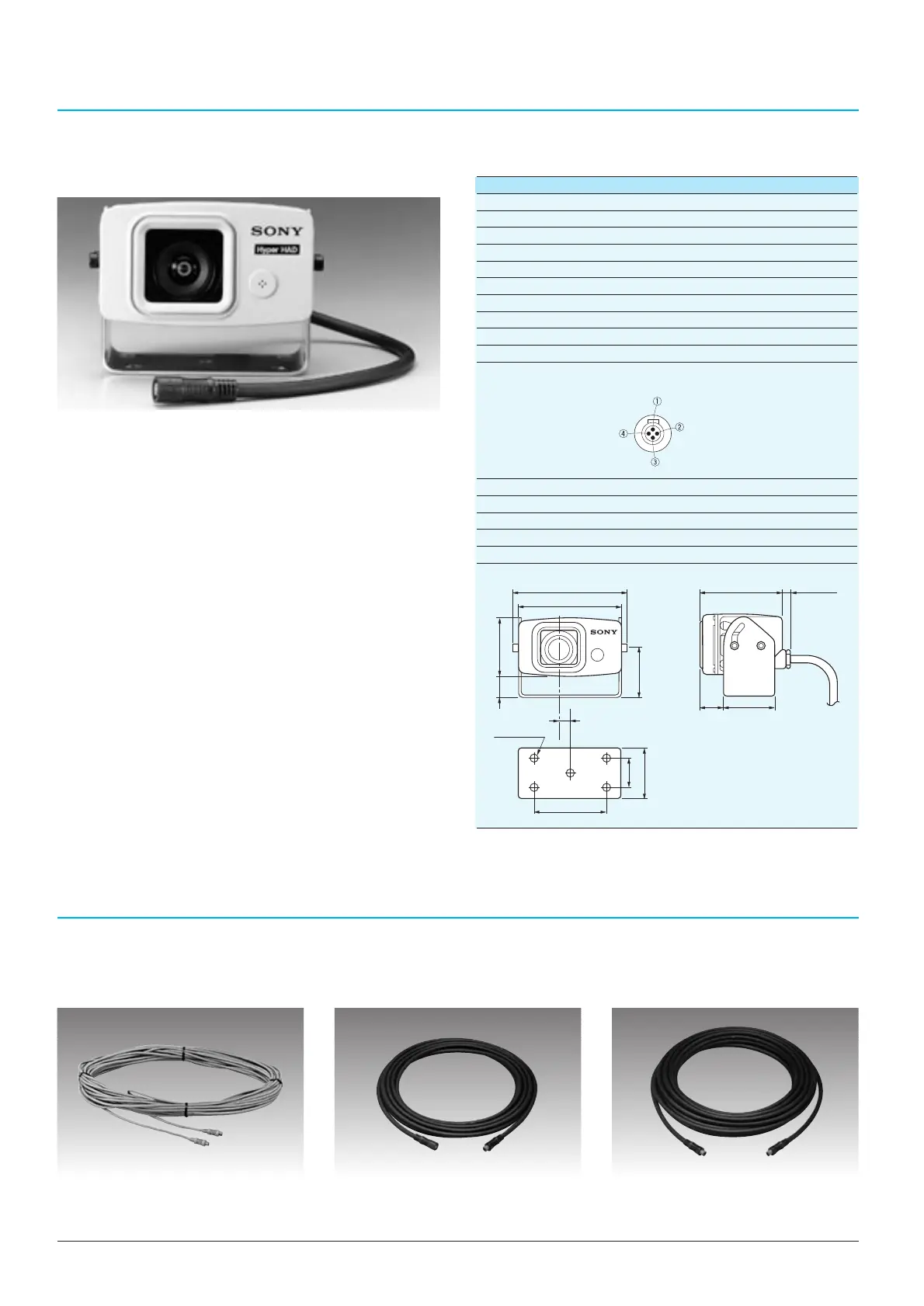

CCD B/W Video Camera
SSC-534AM
•Compact, lightweight and rugged construction
•1/2-inch IT Hyper HAD CCD provides extremely high
sensitivity with a minimum illumination of 0.3 lx
•Wide angle view - a full 100 degrees horizontally,
80 degrees vertically
•Built-in electret condenser microphone
•Only single 4-pin Multiple Cable required between the
SSC-534AM and the SSM-504AM/724AMR to transmit
video and audio signals, together with DC power
SSC-534AM
Image device: 1/2-inch Interline Transfer Hyper HAD CCD
Picture elements: 500 (H) x 582 (V)
Sensing area: 6.3 mm x 4.7 mm
Lens: f = 3.0 mm, F1.6 with auto-iris
Signal system: CCIR standard
Scanning system: 625 lines, 2:1 interlace
Synchronization: Internal
Horizontal resolution: 380 TV lines
Minimum illumination: 0.3 lx
Signal-to-noise ratio: 50 dB (AGC OFF)
Video/audio output:
4-pin Multi-connector (for connection to the SSM-504AM/
724AMR)
1DC input
2Video output: 1.0 Vp-p, 75 Ω,
sync negative
3Ground
4Audio output: -5 dBu
(436 mVrms), less than 10 kΩ,
unbalanced
Power requirements: DC 12 V
Power consumption: 1.2 W (at DC 12 V)
Operating temperature: -20˚C to 70˚C (-4˚F to 158˚F)
Storage temperature: -30˚C to 85˚C (-22˚F to 185˚F)
Mass: 550 g (1 lb 3 oz)
Dimensions:
Unit: mm (inches)
0 dBu = 0.775 Vrms
Specifications
105.6 (4
1
/
4
)
94 (3
3
/
4
)
55 (2
1
/
4
)
20.5
(
13
/
16
)
48 (1
15
/
16
)
10 (
13
/
32
)
Hole 6.5 (
9
/
32
)
48 (1
15
/
16
)
27 (1
1
/
8
)
66 (2
5
/
8
)
76.5 (3
1
/
8
)
Approx 5 (
7
/
32
)
46 (1
13
/
16
)
21.5
(
7
/
8
)
Camera Cable (4-pin)
VK-110A/120A
(10 m/20 m)
• 4-pin Multi (male)
¨ 4-pin Multi (male)
Water-resistant Extension Cable (4-pin)
VK-305
(5 m)
• 4-pin Multi (male)
¨ 4-pin (female)
Water-resistant Camera Cable (4-pin)
VK-310A/318A/320A
(10 m/18 m/20 m)
• 4-pin Multi (male)
¨ 4-pin Multi (male)
