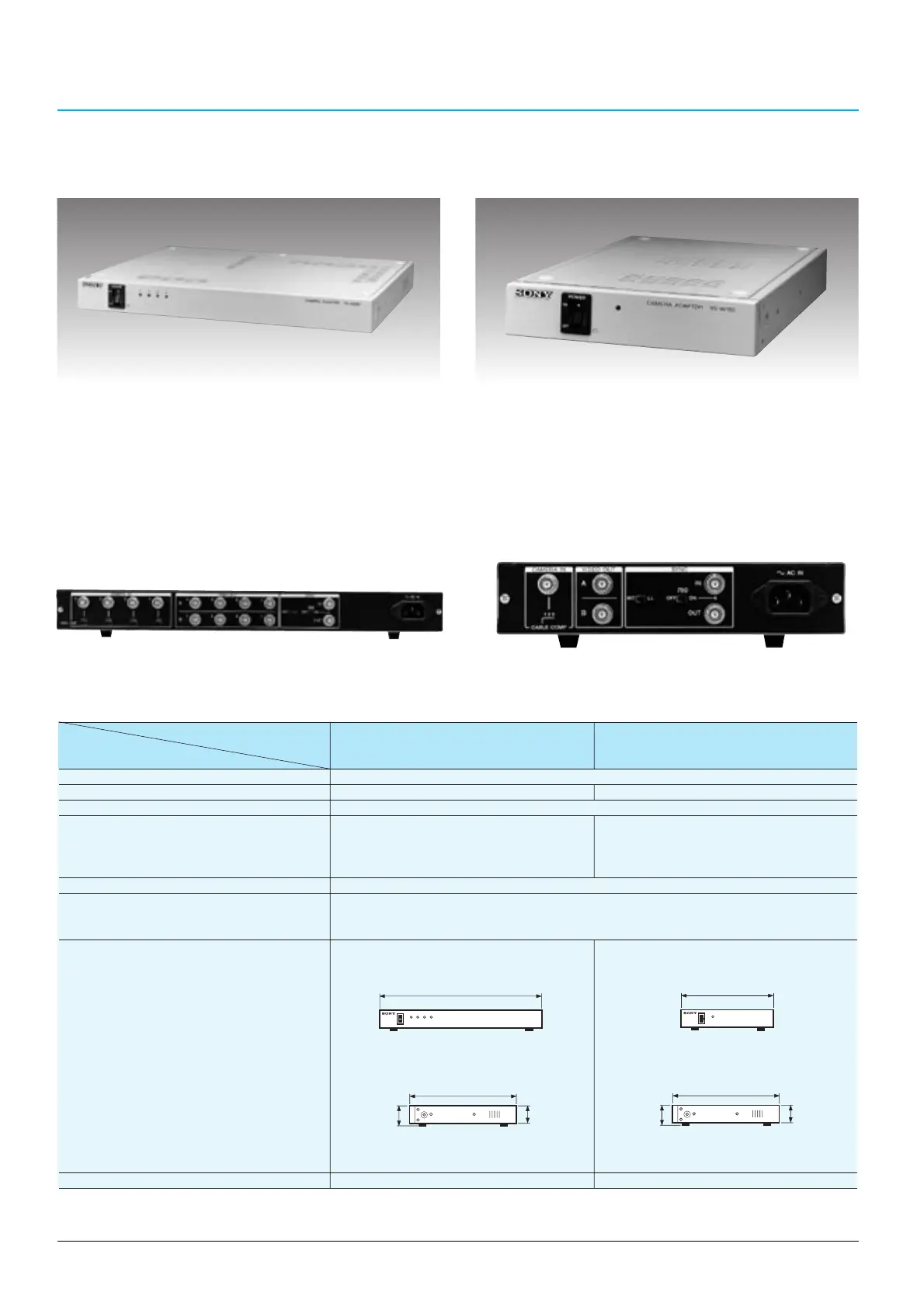

Sony CCTV Systems - Camera Adaptors

36
CAMERA ADAPTORS
Camera Adaptor
YS-W250P
Camera Adaptor
YS-W150P
Rear PanelRear Panel
for SSC-DC50AP/DC10P/
C370P/M370CE
for SSC-DC50AP/DC10P/C370P/
M370CE
•Transmits DC power and video/sync signal between the
adaptor and the camera over a single coaxial cable
•Internal or external synchronization with VS or AC line
lock
•Maximum cable length: 600 m with RG-11A/U (7C-2V)
coaxial cable
•Transmits DC power and video/sync signal between the
adaptor and the camera over a single coaxial cable
•Up to four cameras can be connected
•Internal or external synchronization with VS or AC line
lock
•Maximum cable length:
SSC series cameras – 600 m with RG-11A/U (7C-2V)
coaxial cable
Specifications
Models
YS-W250P YS-W150P
Specifications
Power requirements AC 220 to 240 V, 50 Hz
Power consumption 48 W 15 W
Operating temperature -10˚C to 50˚C (14˚F to 122˚F)
Connectors CAMERA IN 1 to 4 (BNC x 4) CAMERA IN (BNC)
VIDEO OUT A: 1 to 4 (BNC x 4) VIDEO OUT (BNC x 2)
VIDEO OUT B: 1 to 4 (BNC x 4) SYNC IN/OUT (BNC,
SYNC IN/OUT (BNC, loop-through,75 Ω ON/OFF) loop-through,75 Ω ON/OFF)
DC out —
Maximum cable length 300 m using RG-59B/U (3C-2V)
500 m using RG-6A/U (5C-2V)
600 m using RG-11A/U (7C-2V)
Dimensions
Mass 3.6 kg (7 lb 15 oz) 1.9 kg (4 lb 3 oz)
Unit: mm (inches)
424 (16
3
/
4
)
330 (13)
44 (1
3
/
4
)
52 (2
1
/
8
)
330 (13)
212 (8
3
/
8
)
44 (1
3
/
4
)
52 (2
1
/
8
)
