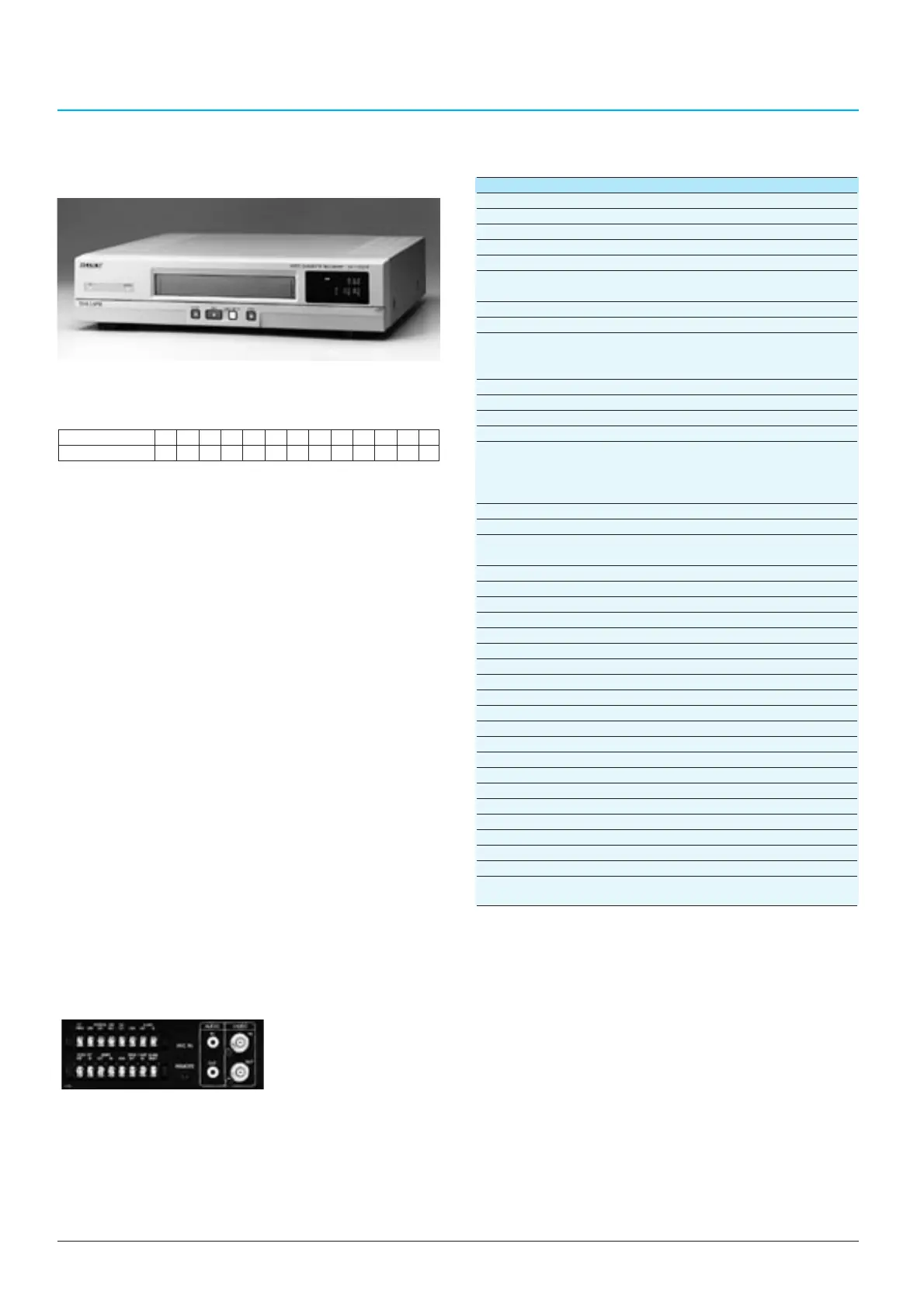

TIME LAPSE VIDEO RECORDERS
SVT-5050P
General
Power requirements: AC 220 to 240 V, 50/60 Hz
Power consumption: 18 W
Operating temperature: 5 to 40°C (41 to 104°F)
Operating humidity: Less than 80%
Dimensions: 420 (W) x 100 (H) x 349 (D) mm
(16
5
/8 x 4 x 13
3
/4 inches)
Mass: Approx. 5.5 kg (12 lb 2 oz)
Tape speed: 23.39 mm/sec (3-hour mode)
Recording/playback time: 3, 12, 24, 48, 72, 96, 120, 168, 240, 360, 480,
720 and 960 hours (with an E-180 tape)
(One shot mode is also available)
Alarm recording speed: 3, 12-hour mode, NC*
1
Alarm recording duration: 20 s, 40 s, 1 m, 2 m, 3 m, 4 m, 5 m, CC*
2
Fast forward/rewind time: Approx. 4 minutes (with an E-180 tape)
Video
Recording Playback system:
Rotary four-head helical scanning system
Luminance signal: FM recording
Colour signal: Low-pass band-pass
transformation direct recording
Input: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)
Output: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)
Horizontal resolution: Colour mode: More than 240 TV lines
Black & White mode: More than 350 TV lines
Signal-to-noise ratio: 43 dB
Audio
Audio recording mode: 3, 12 and 24-hour mode
Input: -7.8 dBu, 47 kΩ (phono jack)
Output: -7.8 dBu, 600 Ω (phono jack)
Microphone input: -60 dBu, 600 Ω (ø3.5mm mini jack)
Others
Alarm input: Low level
Alarm output: +5 V, 5.7 kΩ (Low active)
Switch output: +5 V, 5.7 kΩ (Low active)
Tape end output: +5 V, 5.7 kΩ (Low active)
Warning output: +5 V, 5.7 kΩ (Low active)
Timer output: +12 V, 5.7 kΩ (high active)
External timer input: Low level
Clock set output: +5 V, 5.7 kΩ (Low active)
Clock set input: Low level
Series output: +5V, 5.7 kΩ (Low active)
Series input: Low level
One-shot input: Low level
Alarm reset: Low level
Control terminals: ø3.5 mm mini jack
Optional RS-232C interface (D-sub 9-pin)
Notes *
1
No change of recording speed
*
2
Stays an alarm for as long as the alarm input remains active.
0 dBu=0.775 Vrms
•12 different time lapse recording/playback modes are
available in addition to the standard mode (3 hours
time mode) with a normal 180-minute tape
•Adaptive Picture Control (APC) delivers optimum
picture quality to the recording image
•A tape recorded in the 3-hour mode can be played
back by any VHS VCR
•Audio recording and playback are possible in 3,12 and
24-hour modes
•Built-in time and date generator allows a required
scene to be easily searched by presetting the desired
time and date
•
Multiple recording modes such as Auto Repeat
Recording, Timer Recording, Alarm Recording, One-shot
Recording and Series Recording for versatile situations
•Holiday setting function
•Daylight Saving Time setting function
•Quick recording check function
•By using alarm recall/scan/search functions, pictures
recorded during alarm mode can be easily checked
•Field-by-field picture playback capability
•External timer input capability
•Automatic clock adjusting is possible when several
VCRs are connected
•On-screen display permits easy-to-follow operation
•Auto head cleaning function
•Tape before-end signal output capability
•Warning signal output capability
•Buzzer setting function
•Power-failure protection for up to 30 days
•
Security lock function for avoiding accidental operation errors
•
External control capability via an optional RS-232C interface
•Remote control capability of basic operational functions
through ø3.5 mm mini jack
Time Lapse Videocassette Recorder
SVT-5050P
TIME MODE (h)
3 12 24 48 72 96 120 168 240 360 480 720 960
INTERVAL (s)
1/50 0.1 0.18 0.34 0.5 0.66 0.82 1.14 1.62 2.42 3.22 4.82 6.42
Specifications
Supplied Accessories
AC power cord (1)
Operation manual (1)
Optional Accessory
SVT-RM10 Remote Control Unit
RS-232C interface board SVT-RS1A
TLV parts kit TPK-887P
Note: In time lapse modes, it is possible to additionally record three hours longer than the original modes.
Rear Panel
