SSM-930CE
Video signal system: CCIR 625 lines, 50 fields
Picture tube: 9-inch B/W measured diagonally, 90˚ deflection
Video input: Impedance 75 Ω/high switchable
Level 0.5 to 2.0 Vp-p/75 Ω, sync negative, BNC-type
Video output: Impedance more than 10 kΩ, loop-through, BNC-type
Horizontal resolution: More than 750 TV lines at centre
Power requirements: AC 230 V, 50/60 Hz
Power consumption: 30 W
Operating temperature: 0˚C to 35˚C (32˚F to 95˚F)
Storage temperature: -10˚C to 40˚C (14˚F to 104˚F)
Mass: 5.8 kg (13 lb)
Dimensions:
Unit: mm (inches)
SSM-125CE
Video signal system: CCIR 625 lines, 50 fields
Picture tube: 12-inch B/W measured diagonally, 90˚ deflection
Video input: Impedance 75 Ω/high switchable
Level 0.5 to 2.0 Vp-p/75 Ω, sync negative, BNC-type (x 2)
Video output: Impedance more than 10 kΩ, loop-through,
BNC-type (x 2)
Horizontal resolution: More than 750 TV lines at centre
Power requirements: AC 230 V, 50/60 Hz
Power consumption: 30 W
Operating temperature: 0˚C to 35˚C (32˚F to 95˚F)
Storage temperature: -10˚C to 40˚C (14˚F to 104˚F)
Mass: 9.2 kg (20 lb 5 oz)
Dimensions:
Unit: mm (inches)

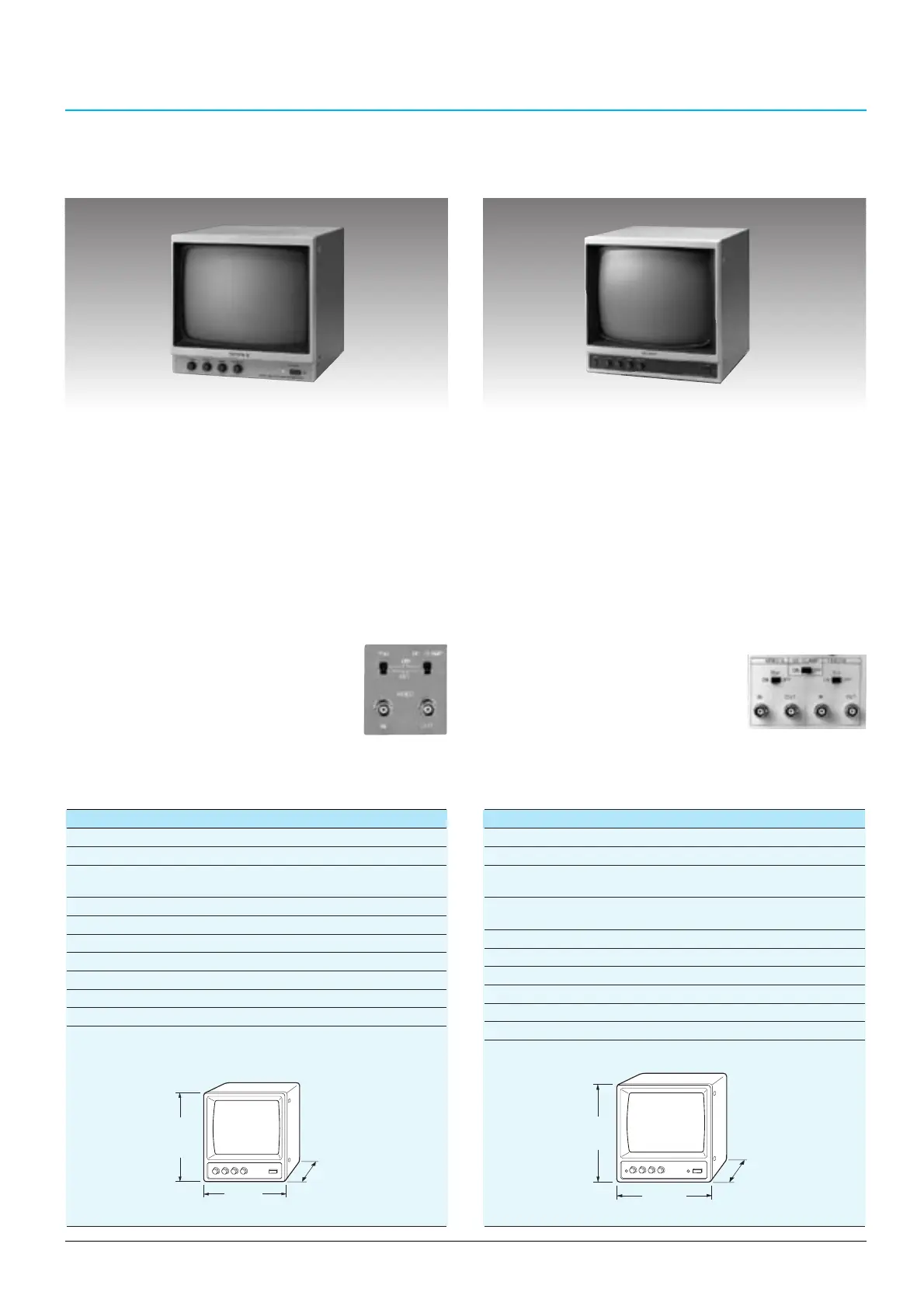

BLACK & WHITE VIDEO MONITORS
B/W Monitor
SSM-930CE
B/W Monitor
SSM-125CE
•CCIR standard
•9-inch CRT size
•Excellent picture quality with more than 750 TV lines
horizontal resolution
•Loop-through video input, with switchable 75 Ω
termination
•DC clamp switch provides a stable reference for the
black level
•19-inch EIA standard rack mountable for dual monitor
configuration
•Front controls: Power, H-hold, V-hold, contrast and
brightness
•High immunity to external electrical
and magnetic interference
•Suitable for many monitoring applications
•CCIR standard
•12-inch CRT size
•Excellent picture quality with more than 750 TV lines
horizontal resolution
• Dual loop-through video inputs, with switchable 75 Ω
termination
•DC clamp switch provides a stable reference for the
black level
•Front controls: Power, INPUT select, H-hold, V-hold,
contrast and brightness
•High immunity to external electrical and magnetic
interference
•Suitable for many monitoring
applications
Specifications Specifications
220 (8
3
/
4
)
219 (8
5
/
8
)
254 (10)
296 (11
3
/
4
)
303 (12)
301 (11
7
/
8
)
Rear Panel
Rear Panel
