Sony CCTV Systems - Lenses

37

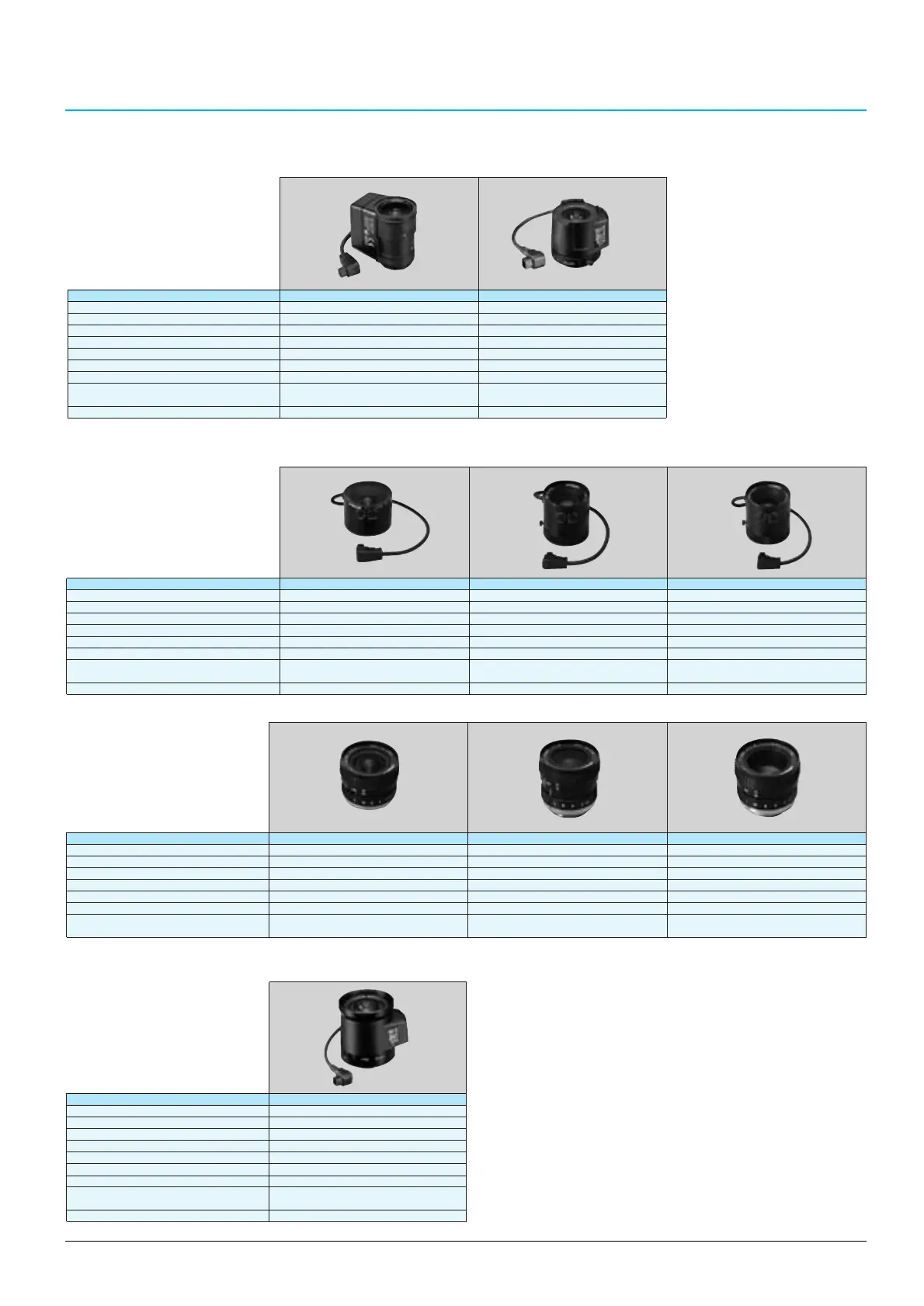

LENSES
Models VCL-4V8WEA VCL-S02WEAP
Mount CS CS
Focal length 3.5 to 8.0 mm 2.8 mm
Iris control Auto Auto
Maximum aperture ratio 1 : 1.4 1 : 1.3
Minimum object distance 0.3 m 0.2 m
Filter size ––– M30.5 x 0.5 mm
Mass 72 g (3 oz) 41 g (1.4 oz)
Dimensions ø35.0 x 54.0 x 46.0 mm ø32.0 x 39.8 x 33.0 mm
(dia. x H x L) (1
7
/16 x 2
1
/4 x 1
13
/16 inches) (1
5
/16 x 1
5
/8 x 1
5
/16 inches)
Cable length 100 mm (4 inches) 310 mm (12
1
/4 inch)
1) Auto Iris Type
(DC/VIDEO servo type/Non-EE
amplifier type/Non-ALC type)
Lenses for 1/3-inch CS-mount cameras
Lenses for 1/2-inch C-mount cameras
1) Auto Iris Type
(Video servo type/EE amplifier
type/ALC type)
Models VCL-S03XEA VCL-S06XEA VCL-S12XEA
Mount C C C
Focal length 3.6 mm 6.0 mm 12 mm
Iris control Auto Auto Auto
Maximum aperture ratio 1 : 1.6 1 : 1.2 1 : 1.2
Filter size ––– M43 x 0.75 mm M43 x 0.75 mm
Mass 88 g (3.1 oz) 128 g (4.5 oz) 126 g (4.4 oz)
Dimensions ø45 (dia.) x 32.9 (L) mm ø45.5 (dia.) x 48.5 (L) mm ø45.5 (dia.) x 48.5 (L) mm
(1
13
/16 x 1
5
/16 inches) (1
13
/16 x 1
15
/16 inches) (1
13
/16 x 1
15
/16 inches)
Supply voltage DC 8 - 16 V DC 8 - 16 V DC 8 - 16 V
2) Manual Iris Type
Models VCL-S03XM VCL-S06XM VCL-S12XM
Mount C C C
Focal length 3.6 mm 6.0 mm 12 mm
Iris control Manual Manual Manual
Maximum aperture ratio 1 : 1.6 1 : 1.2 1 : 1.2
Filter size M35.5 x 0.5 mm M35.5 x 0.5 mm M35.5 x 0.5 mm
Mass 66 g (2.3 oz) 74 g (2.6 oz) 60 g (2.1 oz)
Dimensions ø38 (dia.) x 28.6 (L) mm ø38 (dia.) x 36.4 (L) mm ø38 (dia.) x 30.8 (L) mm
(1
1
/2 x 1
3
/16 inches) (1
1
/2 x 1
7
/16 inches) (1
1
/2 x 1
1
/4 inches)
Model VCL-3ADXEA
Mount CS
Focal length 3.8 mm
Iris control Auto
Maximum aperture ratio 1 : 0.8
Minimum object distance 0.15 m
Filter size M43 ´ 0.75 mm
Mass 150 g (5.3 oz)
Dimensions ø45.0 x 56.8 x 52.5 mm
(dia. x H x L) (1
13
/16 x 2
1
/4 x 2
1
/8 inches)
Cable length 90 mm (3
5
/8 inch)
Aspherical auto iris lens for 1/2-inch CS-mount cameras
(DC servo type/Non-EE amplifier
type/Non-ALC type)
