SWITCHERS

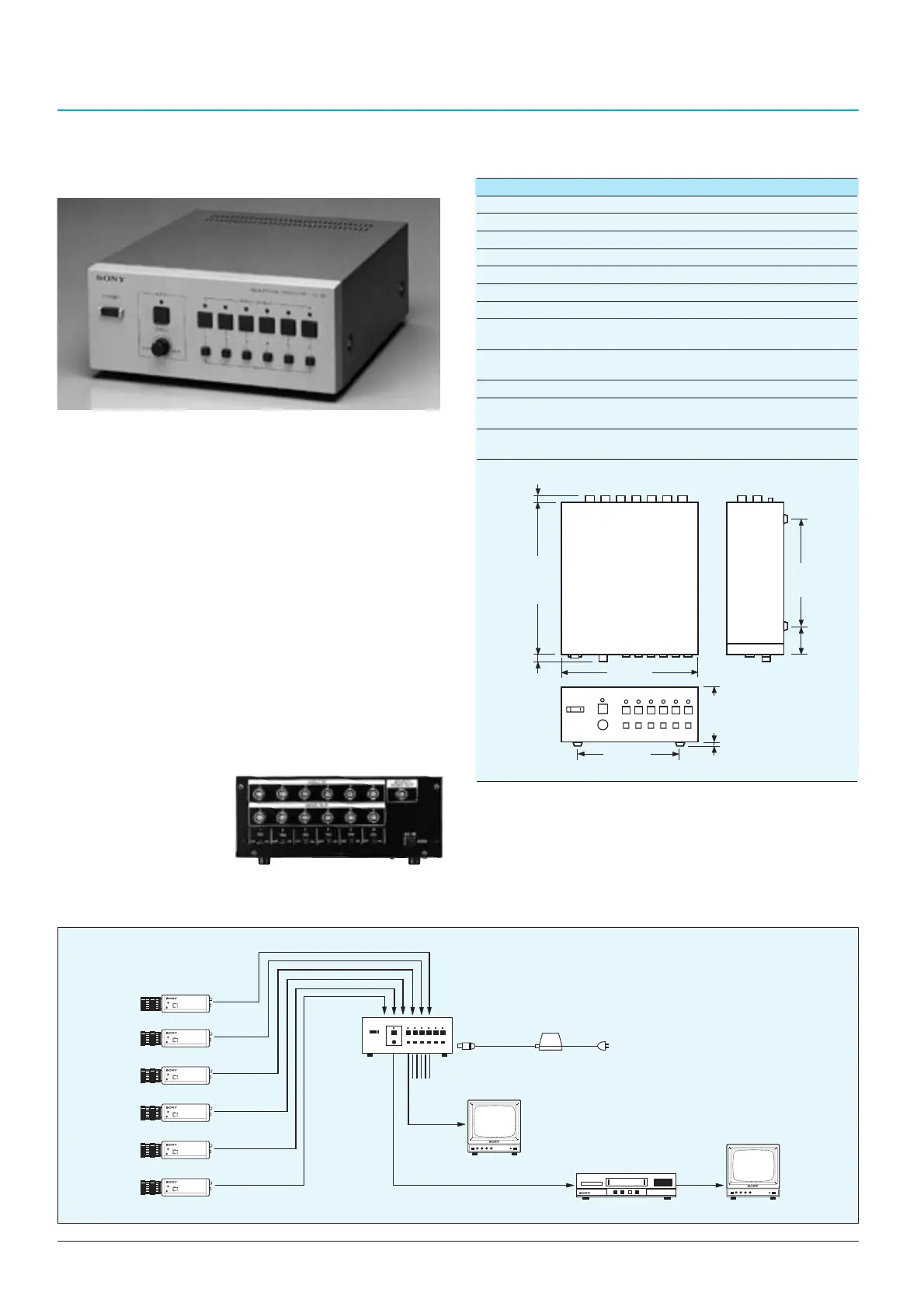

YS-S6
General
Power requirements: DC 9 V
Power consumption: Approx. 2.3 W
Operating temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage temperature: -20˚C to 60˚C (-4˚F to 140˚F)
Mass: Approx. 2.1 kg (4 lb 10 oz)
Input signals
VIDEO INPUT 1 to 6: BNC type, 1.0 Vp-p, 75 Ω, unbalanced,
sync negative
DC IN: DC jack type
DC 9 V (DC 7 V to 15 V is allowed)
Output signals
VIDEO OUTPUT 1 to 6: BNC type, loop-through output of VIDEO
INPUT, 75 Ω termination ON/OFF switchable
SELECT VIDEO OUT: BNC type, 1.0 Vp-p, 75 Ω, unbalanced,
sync negative
Dimensions:
Unit: mm (inches)
NOTE: AC Adaptor is an option.
Specifications
6-channel Sequential Switcher
YS-S6
•Compact-size sequential switcher for small surveillance
systems
•Six VIDEO INPUTs with loop-through capability
•
The pictures from up to six video cameras can be monitored
sequentially on a monitor via the SELECT VIDEO OUT
•The use of DWELL dial enables various dwell time
(displayed time) settings per each monitor from 1
second to 30 seconds
•Both Auto/Manual switching modes are available
Auto: Pressing the AUTO button provides automatic
sequential monitoring of all camera inputs
Manual:The INPUT SELECT buttons allow users
manually select a specific camera input and
view it continuously
•Pictures from connected camera which don’t have to
be monitored can be skipped by the use of SKIP
buttons 1 through 6
•Accepts also NTSC/EIA signal
Supplied Accessory
Operation manual (1)
Rear Panel
YS-S6 Typical System
