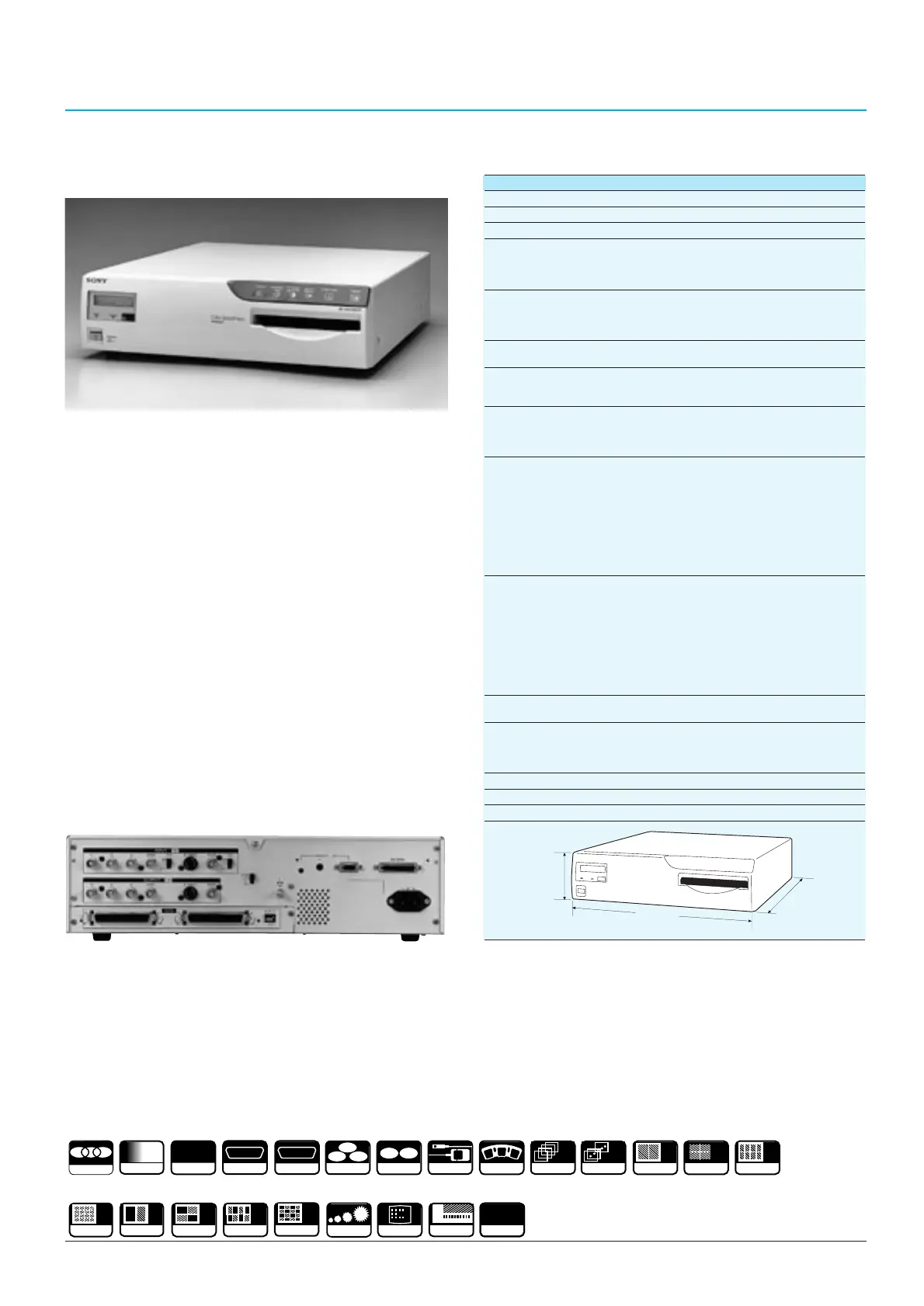

Colour Video Printer
UP-5600MDP
•Four frame memories capability or eight frame
memories capability with the optional UPK-5500
•High quality pictures: high resolution of 300 dpi,
1920 (H) x 1176 (V) dots in PAL full print mode
•8 bit/256 gradations in yellow, magenta and cyan
•A5 size (210 x 148 mm / 8
3
/8 x 5
7
/8 inches) print in
approx. 34 seconds
•Easy-to-use operation menu displayed in the unit’s LCD
panel or a monitor
•Wireless or wired remote control operations with the
optional RM-5500
•RS-232C port for external remote control from PCs
•Accepts both CCIR/PAL and EIA/NTSC signals
•Digital printing is possible with the optional UPK-5500
and SCSI interface board UPK-5502SC which includes
the A/D and D/A conversion
•Multiple video inputs of RGB, Y/C and composite video
signals
•Versatile print modes
•Picture-in-picture function
•Alarm display for easy maintenance
Rear Panel with UPK-5502SC
Supplied Accessories
Ink ribbon holder (1)
Colour printing pack (for 20 prints) (1)
Paper tray (1)
Paper cover (1)
AC power cable (1)
Operation manual (1)
Specifications
UP-5600MDP
Printing method: Dye transfer sublimation thermal printing
Thermal head: 2048 elements (300 dpi)
Printing paper size: A5 size, 210 x 148 mm (8
3
/8 x 5
7
/8 inches)
Picture size:
165.1 x 124.8 mm (6
1
/2 x 5 inches) - PAL, Full Print Mode
165.1 x 125.8 mm (6
1
/2 x 5 inches) - NTSC, Full Print Mode
176.1 x 132.1 mm (7 x 5
1
/4 inches) - Digital Printing (with
optional UPK-5500 and UPK-5502SC)
Picture elements:
1920 (H) x 1176 (V) dots - PAL, Full Print Mode
1920 (H) x 976 (V) dots - NTSC, Full Print Mode
2048 (H) x 1536 (V) dots - Digital Printing (with optional
UPK-5500 and UPK-5502SC)
Gradations: 256 levels process (Yellow, Magenta, Cyan)
over 16 million colours per dot
Picture memory: 4 frame memories, 2048 x 1024 x 8 bits x 3
8 frame memories with optional UPK-5500,
2048 x 2048 x 8 bits x 3
Printing time:
Approx. 34s - PAL, Full size Print Mode
Approx. 30s - NTSC, Full size Print Mode
Approx. 38s - Digital Printing (with optional UPK-5500 and
UPK-5502SC)
Input terminals:
625 or 525 RGB analogue* (BNC x 4, R/G/B/Sync)
RGB: 0.7 Vp-p, 75 Ω, unbalanced
Sync: 0.3 to 4.0 Vp-p, sync negative, 75 Ω, unbalanced
S-Video (Y/C Separate, 4-pin S terminal)
CCIR/PAL or EIA/NTSC**
Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced
C: 0.3 Vp-p, 75 Ω, unbalanced
Composite video (BNC)
CCIR/PAL or EIA/NTSC** 1.0 Vp-p, sync negative, 75 Ω
unbalanced
Output terminals:
625 or 525 RGB analogue* (BNC x 4, R/G/B/Sync)
RGB: 0.7 Vp-p, 75 Ω, unbalanced
Sync: 1.0 Vp-p, sync negative, 75 Ω, unbalanced
S-Video (Y/C Separate, 4-pin S terminal)
CCIR/PAL or EIA/NTSC**
Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced
C: 0.3 Vp-p, 75 Ω, unbalanced
Composite video (BNC)
CCIR/PAL or EIA/NTSC** 1.0 Vp-p, sync negative, 75 Ω,
unbalanced
Interface: With optional UPK-5502SC, SCSI 1 channel,
50-pin amphenol (2)
Control terminals:
Remote control jack (Special mini) for optional RM-5500
Foot switch-1 (stereo mini) for optional FS-20/RM-91
Foot switch-2 (D-sub 9-pin) for optional FS-30
RS-232C interface port (D-sub 25-pin)
Power requirements: AC 220 to 240 V, 50/60 Hz
Power consumption: Max. 1.2 A
Mass: 14 kg (30 lb 14 oz)
Dimensions:
Unit: mm (inches)
* The UP-5600MDP can accept sync-on-G or external sync automatically.
** CCIR/PAL or EIA/NTSC signals are selected using the input selector on the unit’s rear panel.
Optional Accessories
Four Frame Memory Board UPK-5500
Digital Interface Board UPK-5502SC
Wired/Wireless Remote Commander RM-5500
Remote Control Unit RM-91
Foot Switch FS-30, Foot Switch FS-20
Colour Printing Pack UPC-5510*/5UPC-5510*/UPC-5510C
Cassette for UPC-5510/5UPC-5510 UPA-5500
*The UPC-5510/5UPC-5510 are not supplied with a cassette.
