– 15 –
• This set can be disassembled in the order shown below.
SECTION 3
DISASSEMBLY
LOADING PANEL
SECTION
(Page 15)
CASE,
FRONT PANEL SECTION
(Page 16)
MECHANISM
DECK SECTION
(Page 16)
BASE UNIT
(Page 17)
LOADING MOTOR
(Page 18)
POWER BOARD, MAIN BOARD
(Page 18)
OPTICAL PICK-UP
(Page 17)
Note: Follow the disassembly procedure in the numerical order given.

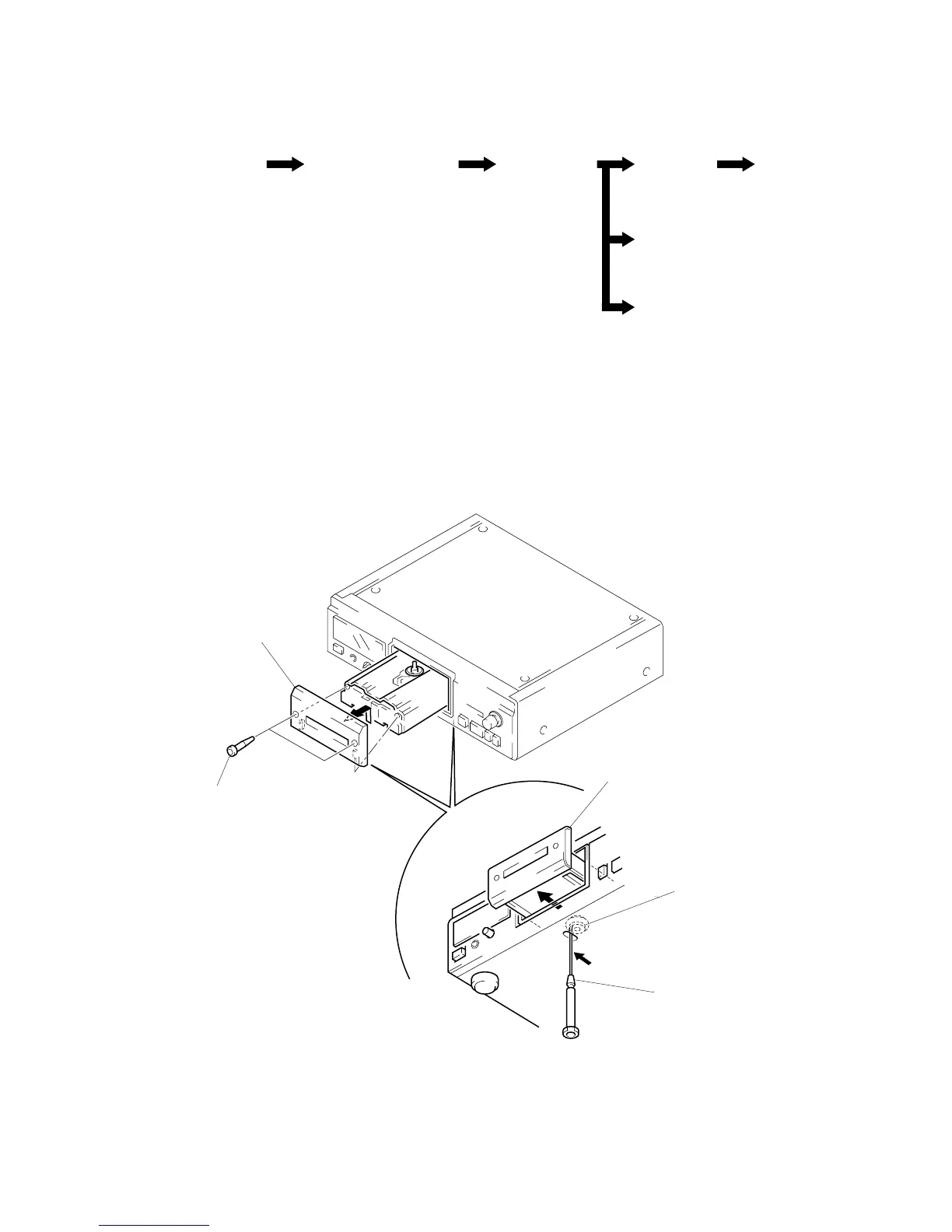

LOADING PANEL SECTION
4
loading panel section
3
two hexagon hole bolts
(LID)
2
Pull the loading panel to
direction of the arrow
B
.
limiter (LEVER)
1
Insert a tapering driver,
and move the limiter (LEVER)
to direction of the arrow
A
.
A
B
To Next Page
