Sony CDP-XA30ES - Base Unit, Optical Pick-up, and Motor Sections

– 17 –

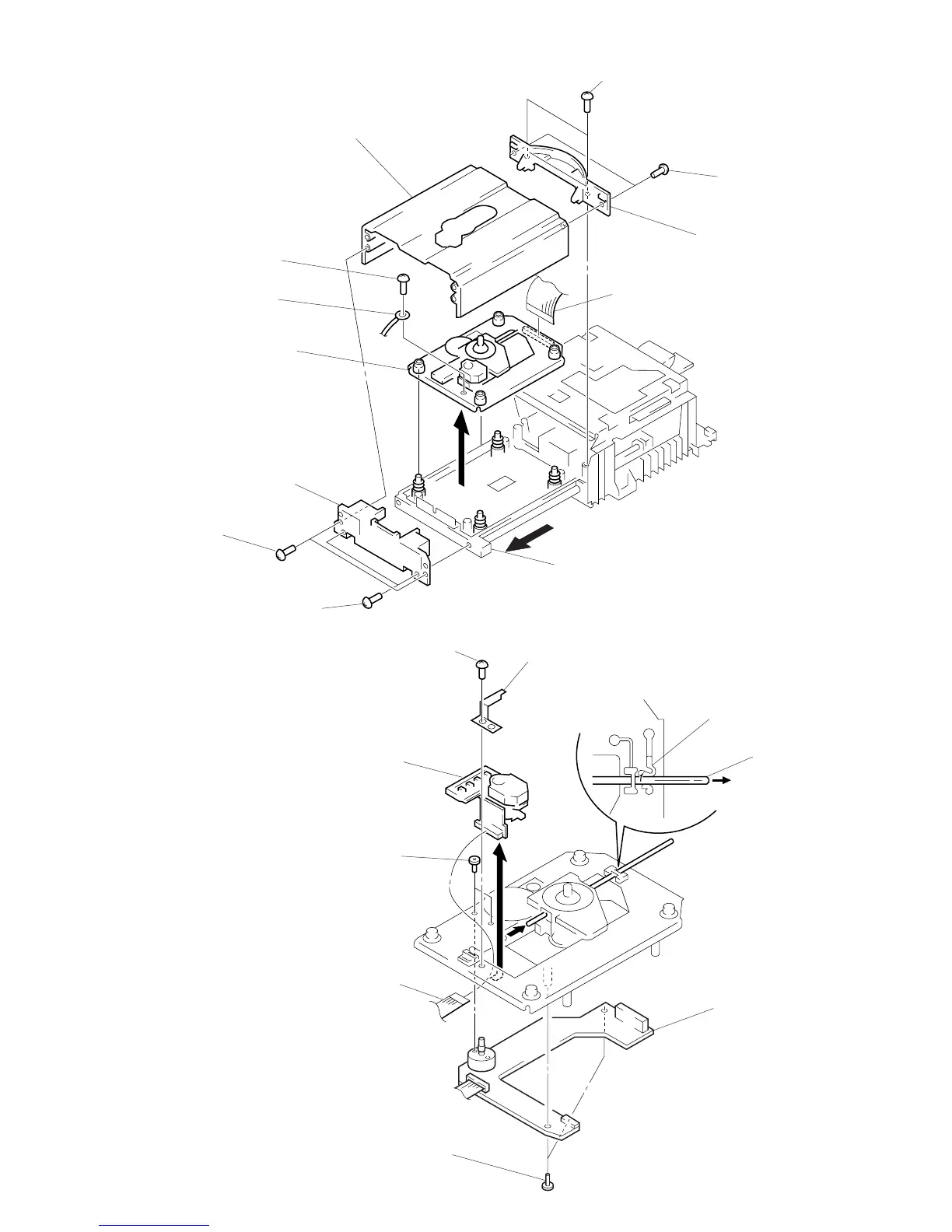

OPTICAL PICK-UP
6 leaf spring (OP)
5 screw
(BVTP3
× 8)
9 Removal the optical pick-up
to direction of the arrow
A .
7 claw
8 sled shaft
6 two screws
(BVTP3
× 8)
2 two screws
(BVTP3
× 8)
8 flat wire (30 core)
(CN108)
7 panel (R) (DRAWER)
1 pull the tray
4 two screws
(BVTP3
× 8)
2 two screws
(BVTP3
× 8)
5 cover (F) (DRAWER)
!¡ base unit
(BU-14A)
9 screw
(BVTP3
× 8)
3 panel (DRAWER)
BASE UNIT
A
2 two precision screws
(P17
× 2.5)
1 flat wire (16 core)
4 BD TRANSLATION
board
3 two screws
(BVTP 2.6
× 8)
!º lug
